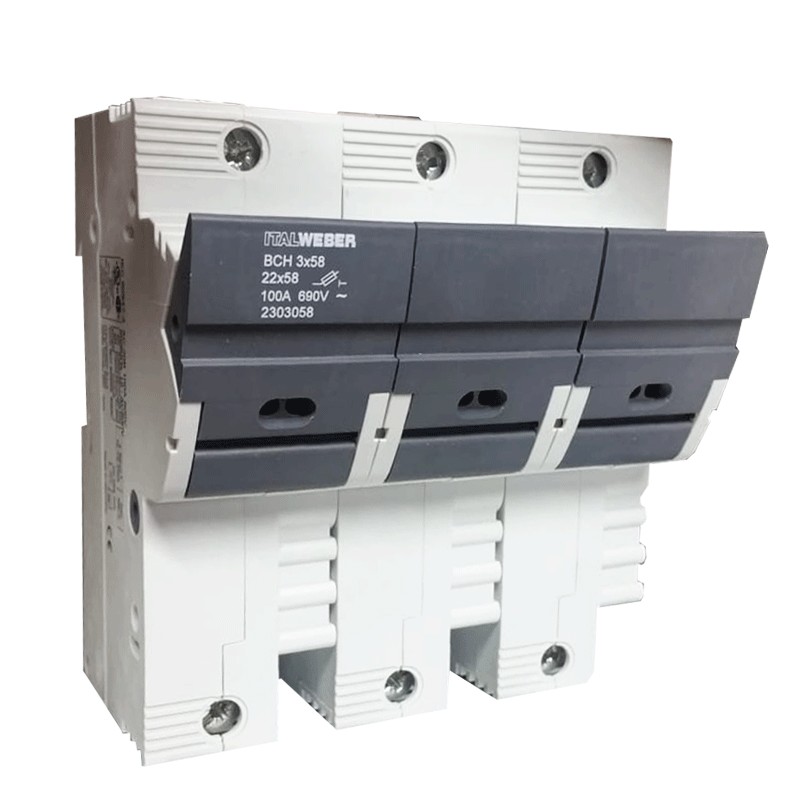

Italweber sectional fuse holder BCH 22 x 58 mm 3 poles 100A 690V 2303058
ITW 2303058
8024873018810
Italweber BCH series sectional fuse holder, with the following characteristics
- Fuse gauge 22 x 58 mm
- Three-pole type
- Current In 100A
- Nominal voltage 690 Vac
- 3 poles
- 6 modules
- Insulation voltage 800 Vac
- Short circuit current withstand 100kA
Italweber sectional fuse holder BCH 22 x 58 mm 3 poles 100A 690V 2303058
€52.83
Tax included
€52.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Pay in installments with Klarna
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 22 x 58 mm
- Three-pole type
- Current In 100A
- Nominal voltage 690 Vac
- 3 poles
- 6 modules
- Insulation voltage 800 Vac
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 22x58 fuse sizes
- Voltage: 690VAC
- Modules: 6
- Poles: 3P
- Amps: 100A
