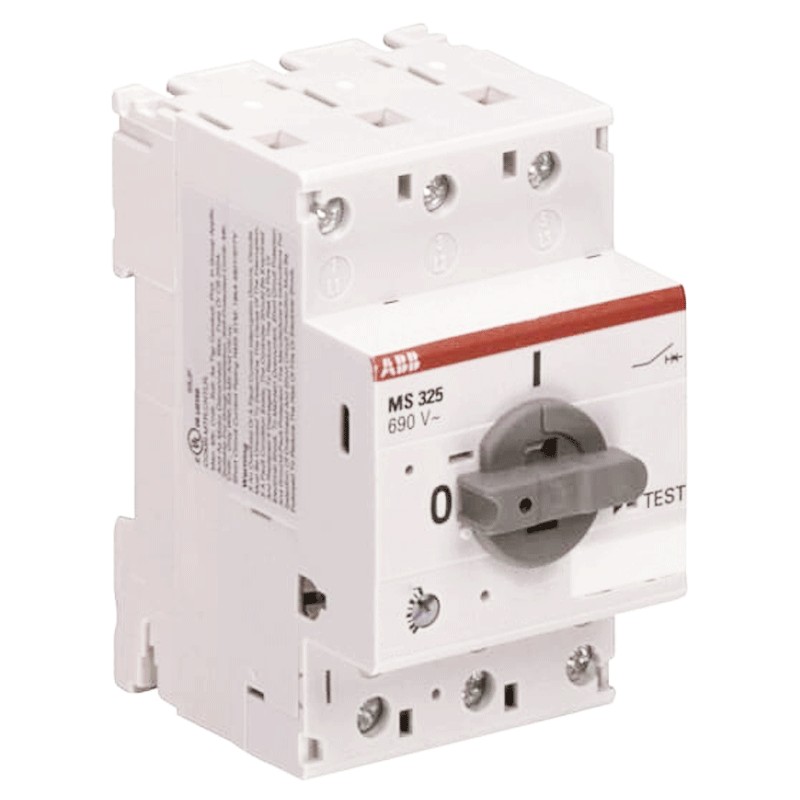

Motor circuit breaker Abb MS325 100Ka 4.0-6.30A EP 943 3
ABB EP 943 3
4013614195051
Abb motor protection circuit breaker, MS325 series, with the following characteristics:
- Rated service short-circuit capacity (230 Vac) 100 kA
- Rated extreme short-circuit capacity (230 Vac) 100 kA
- Rated instantaneous short-circuit current setting 78.8A
- Setting range 4.0 ... 6,3A
- Rated operating voltage Main Circuit 690 Vac - Main Circuit 440 Vdc
- Rated impulse withstand voltage (Uimp) Main circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- 3 poles
- 2.5 modules
Motor circuit breaker Abb MS325 100Ka 4.0-6.30A EP 943 3
€59.97
Tax included
€59.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
Pay in installments with Klarna
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Abb Series
- Rated service short-circuit capacity (230 Vac) 100 kA
- Rated extreme short-circuit capacity (230 Vac) 100 kA
- Rated instantaneous short-circuit current setting 78.8A
- Setting range 4.0 ... 6,3A
- Rated operating power AC-3 (Pe) (400 V) Three-phase 2.2 kW
- Rated Operating Voltage Main Circuit 690 Vac - Main Circuit 440 Vdc
- Nominal Operating Current 6.3A
- Nominal Operating Current AC-3 6.3A
- Main Circuit Rated Frequency 50 Hz/60 Hz
- Rated impulse withstand voltage (Uimp) Main circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- Power loss at rated operating conditions per pole 0.8 W
- 3 poles
- 2.5 modules
- Degree of protection Housing IP20 - Main circuit Terminals IP20
- Pollution degree 3
- Main circuit tightening torque 1.4 Nm
- Type of actuator Rotary handle
- Type of terminal Screw terminals
- Contact position indication ON OFF
- Ambient temperature In operation In operation -25 ... +50 °C - In storage -50 ... +80 °C
- Conventional free air thermal current (Ith) Main circuit 6.3A
- Width 54 mm
- Height 87.5 mm
- Depth 75.5 mm
- Net weight 0.34 kg
- Electrical life 50000 cycles
- Mechanical life 100000 cycles
- Cable cross-sections - main circuit
- Flexible with ferrule 1/2x 0.75 ... 4 mm2
- Flexible with insulated ferrule 1/2x 0.75 ... 4 mm
- Flexible 1/2x 1 ... 6 mm
- Rigid 1/2x 1 ... 6 mm² Cable stripping length
- Stripping length Auxiliary circuit 8 mm - Main circuit 10 mm
- Recommended screwdriver M3.5 Pozidriv 2
- Mounting position Position 1 to 6
- DIN rail mounting
- TH35-15 (mounting rail 35 x 15 mm) acc. to IEC 60715
- TH35-7.5 (35 x 7.5 mm mounting rail) acc. to IEC 60715
- Amperage UL/CSA 4A
- Maximum permissible operating altitude 2000 m
- Shock resistance acc. toIEC 60068-2-27 11 ms impulse 15 g
- Vibration resistance acc. toIEC 60068-2-6 - 5g / 10 ... 150 Hz
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 2.5
- Poles: 3P
- Power: 100KA
- Amps: 4.0-6: 30 am To
