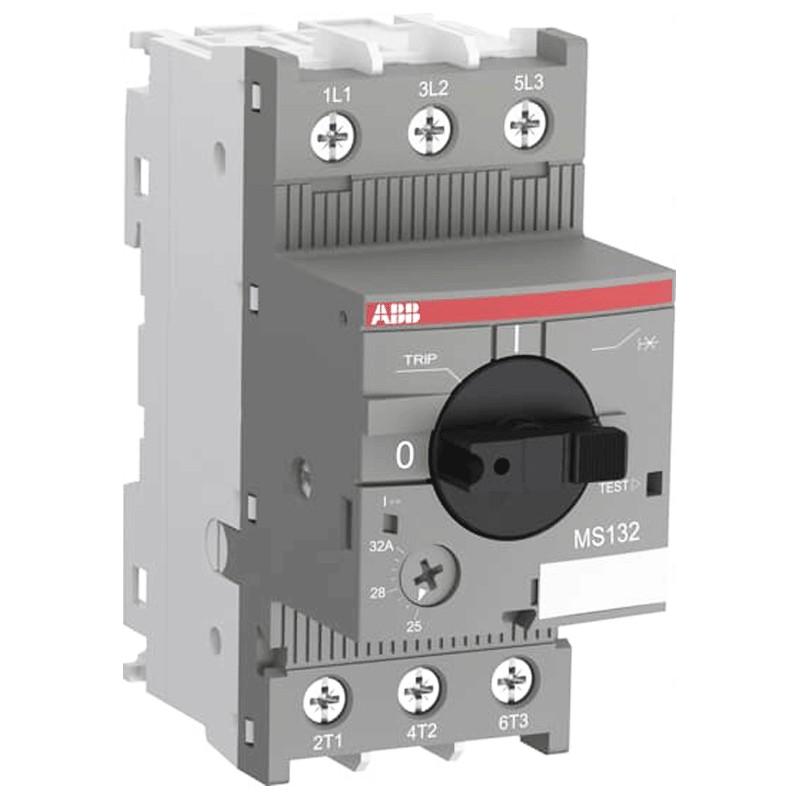

Abb Motor protection 25-32A 25Ka 2.5 modules MS132 EP 888 0
ABB EP 888 0
4013614400155
Abb motor protection, MS132 series, with the following characteristics:
- Rated short-circuit making capacity (230 Vac) 25kA
- Rated extreme short-circuit capacity (230 Vac) 25kA
- Rated instantaneous short circuit current setting 480A
- Setting range 25 ...32A
- Nominal operating voltage Main Circuit 690 Vac - Main Circuit 250 Vdc
- Nominal operating current (Ie) 32A
- Rated impulse withstand voltage (Uimp) Main circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- 3 poles
- 2.5 modules
Abb Motor protection 25-32A 25Ka 2.5 modules MS132 EP 888 0
€104.14
Tax included
€104.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
Pay in installments with Klarna
The motor protection is installed on the cable that powers the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Abb Series
- Rated short-circuit making capacity (230 Vac) 25kA
- Rated extreme short-circuit capacity (230 Vac) 25kA
- Rated instantaneous short circuit current setting 480A
- Setting range 25 ... 32A
- Rated operational current AC-3 (Pe) (400 V) Three-phase 15 kW
- Rated operating current AC-3e (Pe) (400V) Three-phase 15 kW
- Rated operational voltage Main Circuit 690 Vac - Main Circuit 250 Vdc
- Rated operational current (Ie) 32A
- Rated operating current AC-3 (Ie) 32A
- Rated operating current AC-3e (Ie) 32A
- Rated operating current DC-5 (Ie) 32A
- Rated main circuit frequency 50 Hz/60 Hz
- Rated impulse withstand voltage (Uimp) Main circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- Power loss at rated operating conditions per pole 1.9 W
- 3 poles
- 2.5 modules
- Conventional free air thermal current (Ith) Main Circuit 32A
- Rate of protection indoor IP20 - Main Circuit Terminals IP10
- Pollution class 3
- Electrical lifespan 50000 cycles
- Mechanical lifespan 100000 cycles
- Type of Screw: Screw Terminals
- Main Circuit Cable Sections:
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
- Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
- Flexible 1/2x 0.75 ... 2.5 mm²
- Rigid 1/2x 1 ... 4 mm²
- Tightening torque main circuit 2 Nm
- Stripping length main circuit 10 mm
- Recommended screwdriver Pozidriv 2
- Mounting position Position 1 to 6
DIN rail mounting
- TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715
- TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715
- Actuator type rotary motion
- Contact position indication ON / OFF / TRIP
- Ambient temperature Operating -25 ... +70 °C - In storage -50 ... +80 °C
- Amperage UL/CSA 25A
- Maximum permissible operating altitude 2000 m
- Shock resistance 11 ms Pulse 25g
- Vibration resistance 5g / 3 ... 150 Hz Width
- Width 45 mm
- Height 97.8 mm
- Depth 86.55 mm
- Net weight 0.31 kg
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 2.5
- Poles: 3P
- Power: 25KA
- Amps: 25-32A
