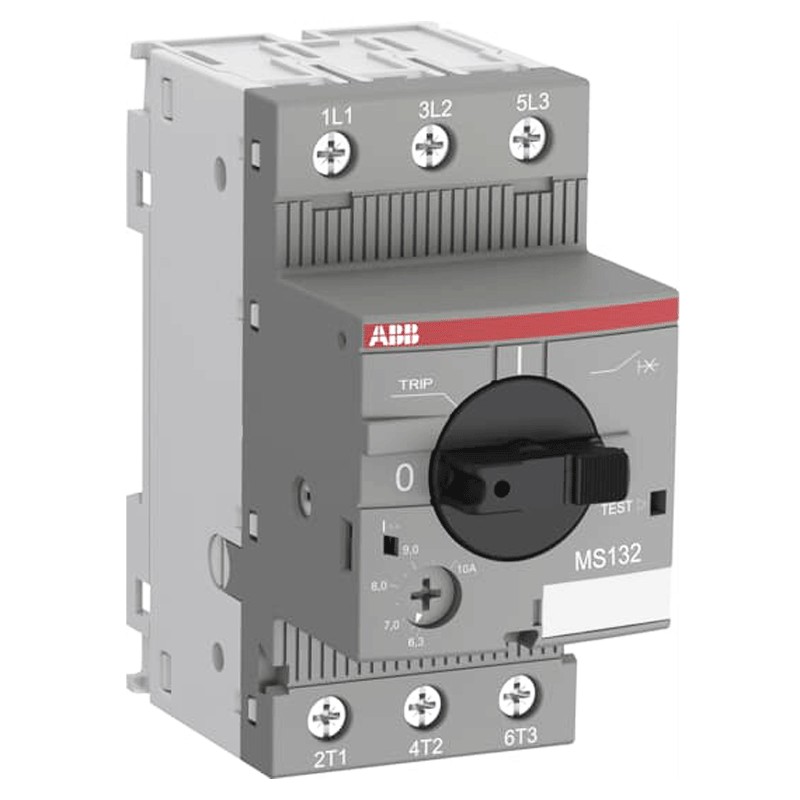

Motor protection switch Abb 2.5-4.0A 100Ka 2.5 modules MS132 EP 882 3

Brand: Abb TEST

Cod: ABB EP 882 3 EAN: 4013614400087

Abb motor protection switch, MS132 series, with the following characteristics:

Rated service short-circuit capacity (230 Vac) 100 kA
Rated extreme short-circuit capacity (230 Vac) 100 kA
Rated instantaneous short-circuit current setting 50A
Setting range 2.5 ... 4.0A
Rated operating voltage Main circuit 690 Vac - Main circuit 250 Vdc
Nominal operating current (Ie) 4A
Rated impulse withstand voltage (Uimp) Main circuit 6 kV
Rated insulation voltage (Ui) 690 V
3 poles
2.5 modules

Motor protection switch Abb 2.5-4.0A 100Ka 2.5 modules MS132 EP 882 3

€63.25 Tax included

€63.25

Motor protection switch Abb 2.5-4.0A 100Ka 2.5 modules MS132 EP 882 3

€63.25
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 7

: 4

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.

Features:

Abb Series
Rated service short-circuit capacity (230 Vac) 100 kA
Rated extreme short-circuit capacity (230 Vac) 100 kA
Rated instantaneous short-circuit current setting 50A
Setting range 2.5 ... 4.0A
Rated operating current AC-3 (Pe) (400 V) Three-phase 1.5 kW
Rated operating current AC-3e (Pe) (400V) Three-phase 1.5 kW
Rated operational voltage Main Circuit 690 Vac - Main Circuit 250 Vdc
Nominal operating current (Ie) 4A
Rated operating current AC-3 (Ie) 4A
Rated operating current AC-3e (Ie) 4A
Rated operating current DC-5 (Ie) 4A
Rated main circuit frequency 50 Hz/60 Hz
Rated impulse withstand voltage (Uimp) Main circuit 6 kV
Rated insulation voltage (Ui) 690 V
Power loss at rated operating conditions per pole 0.7 W
3 poles
2.5 modules
Conventional free air thermal current (Ith) Main Circuit 0.4A
Degree of protection housing IP20 - Main Circuit Terminals IP10
Pollution degree 3
Electrical life 50000 cycles
Mechanical life 100000 cycles
Type of Screw Terminals
Main Circuit Cable Sections
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated
Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule
Flexible 1/2x 0.75 ... 2.5 mm² Flexible
Rigid 1/2x 1 ... 4 mm² Rigid
Main circuit tightening torque 0. ...1.2 Nm
Stripping length main circuit 9 mm
Recommended screwdriver Pozidriv 2
Mounting position Position 1 to 6
DIN rail mounting
TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715
Actuator type rotary handle
Contact position indication ON / OFF / TRIP
Ambient temperature Operating -25 ... +70 °C - In storage -50 ... +80 °C
Amperage UL/CSA 4.0A
Max. permissible altitude 2000 m Shock resistance
Shock resistance 11 ms Pulse 25g
Vibration resistance 5g / 3 ... 150 Hz Width
Width 45 mm
Height 90 mm
Depth 86.75 mm
Net weight 0.215 kg
