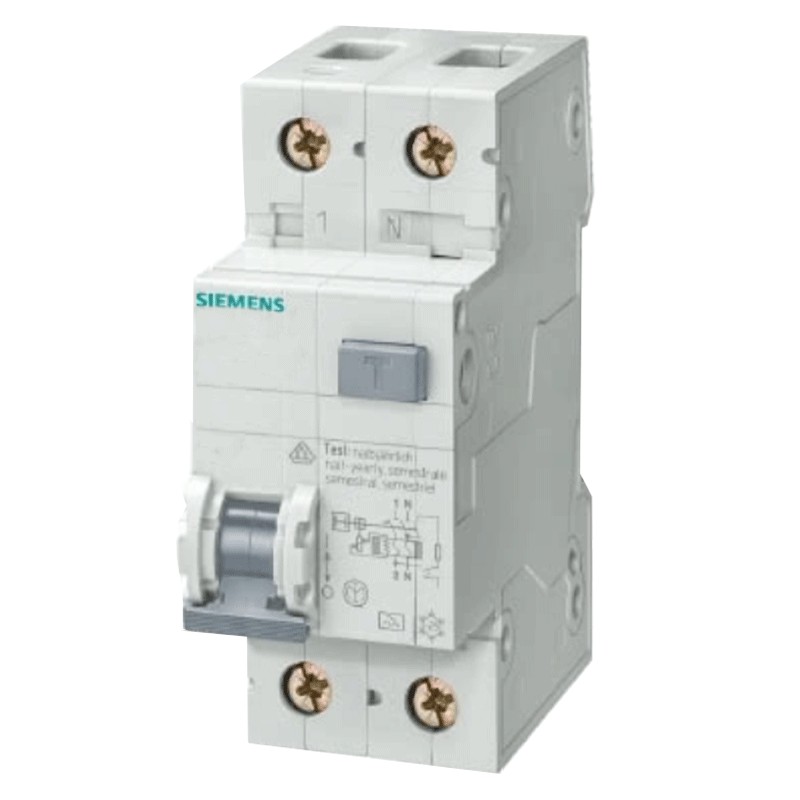

Siemens 1P+N 16A 30mA AC differential circuit breaker 6kA 2 modules 5SU13561KK16
SIE 5SU13561KK16
4001869306636
Siemens differential thermomagnetic circuit breaker, 2 modules, DIN mounting (universal for any switchboard on the market), poles 1P+N, 16 amperes, breaking capacity 6kA, voltage 230/240 Vac, differential current Idn 30mA, type AC, trip curve C.
Siemens 1P+N 16A 30mA AC differential circuit breaker 6kA 2 modules 5SU13561KK16
€45.86
Tax included
€45.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1562
: 262
Pay in installments with Klarna
The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current in case of need.
The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The AC residual current circuit breaker type tripping is assured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Siemens series
- Voltage 230/240 Vac
- Current In 16A
- Interrupting capacity Icn 6kA
- Intervention curve C
- Differential current Idn 30mA
- AC differential type
- Frequency of use 50 Hz
- 2 modules
- 1P+N poles
- Height 90 mm
- Width 36 mm
- Depth 77 mm
- Recessed depth 70 mm
- Net weight 272 g
- Any mounting position
- Tightening torque / with screw terminals min. 2.5 Nm, max. 3 Nm
- Degree of protection IP20, for installation in a distribution board, with connected conductors
prodotto, rapporto qualità prezzo più che ottimo
Ottimo rapporto qualità prezzo............
Tutto Ottimo, molto veloci nella spedizione.
Data sheet
- Modules: 2
- Poles: 1P+N
- Power: 6KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 16A
- Circuit Protections: RCBO
