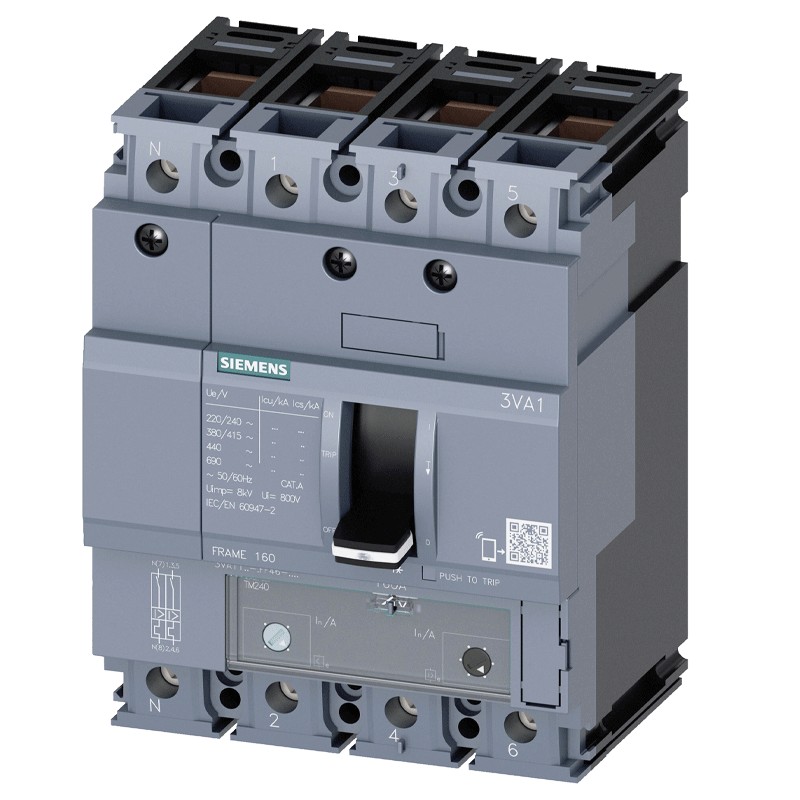

Siemens 3VA1 80A 4-pole 25KA moulded case circuit breaker 3VA11803EF460AA0
SIE 3VA11803EF460AA0
4042948821008
Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent current Iu 80A
- 4 poles
Siemens 3VA1 80A 4-pole 25KA moulded case circuit breaker 3VA11803EF460AA0
€259.84
Tax included
€259.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens Series
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent current Iu 80A
- 4 poles
- Power loss at nominal current value with AC in warm operating state per pole 6.4 W
- Max. power dissipation 19.2 W
- Mechanical service life (switching cycles) typ 20,000
- Height 130 mm
- Width 101.6 mm
- Depth 70 mm
- Net weight 1.2 kg
- Type of connectable conductor cross-sections of the terminals for round/multistranded conductors 1 x (1.5 - 70 mm²)
- Degree of protection front side IP40
Ambient temperature
- During operation / min -25 °C
- During operation / max. 70 °C
- During storage / min -40 °C
- During storage / max. 80 °C
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Power: 25KA
- Amps: 80A
