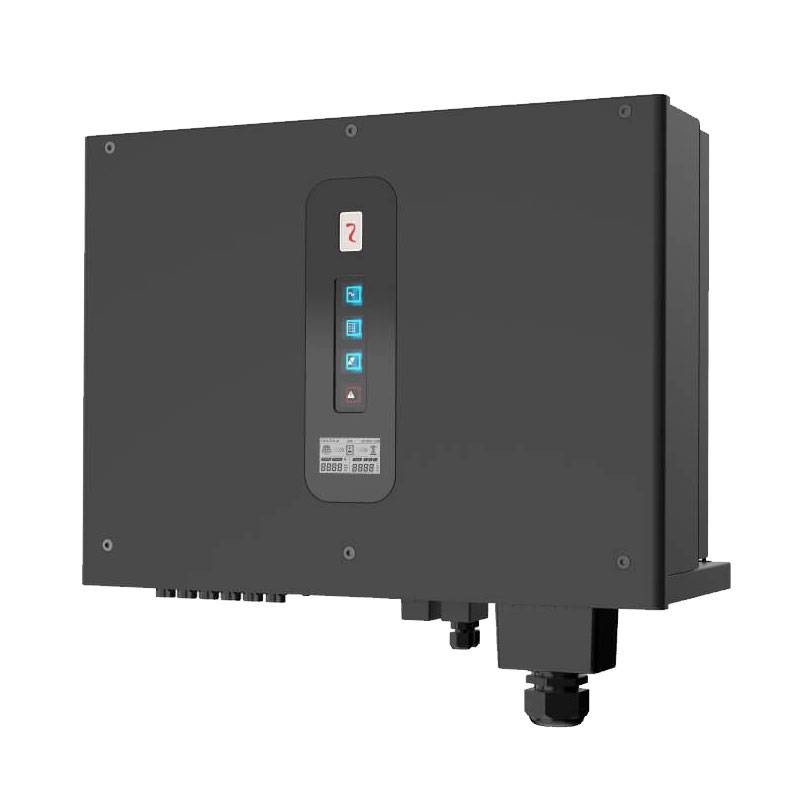

Aros RS25.0T 25KW Three-Phase 2MPPT WIFI Photovoltaic Inverter 6PS325KB

Aros
Aros
ARO 6PS325KB

Aros photovoltaic inverter model RS25.0T:

  • AC active power (nominal) 25KW
  • Three-phase power supply 380 V/400 V, 3F+N+PE
  • Number of MPPT 2
  • DC disconnect switch
  • Built-in Wi-Fi communication, built-in RS485

  • wifi
Request info about this product

Aros RS25.0T 25KW Three-Phase 2MPPT WIFI Photovoltaic Inverter 6PS325KB

€3,365.67 Tax included
€3,365.67

Aros RS25.0T 25KW Three-Phase 2MPPT WIFI Photovoltaic Inverter 6PS325KB

€3,365.67
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 7
Altre disponibilità dal produttore
qty

Aros RS25.0T 25KW Three-Phase 2MPPT WIFI Photovoltaic Inverter 6PS325KB

€3,365.67

Buy it within and receive it from Monday, 17 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • Transformerless
  • Maximum yield up to 98.20%
  • European efficiency up to 97.70%
  • IP65 degree of protection for outdoor installation
  • Redundant control and protection devices
  • Wide MPPT range
  • Integrated dual-channel Wi-Fi
  • Convention cooling technology
  • LED status display + LCD divided into data sections
  • 5-year parent company warranty

Features:


EFFICIENCY:

  • Maximum efficiency 98.20%
  • European efficiency 97.70%

INPUT:

  • Maximum input voltage 1000 V
  • Rated input voltage 620 V
  • Maximum input current 81 A (40.5 A + 40.5 A)
  • Maximum short-circuit current 90 A (45 A + 45 A)
  • Starting voltage minimum operating voltage 250 V / 180 V
  • MPPT operating voltage range 180 V÷950 V
  • MPPT operating voltage range (full load) 480 V÷800 V
  • Maximum number of PV strings 6 (3/3)
  • Number of MPPTs 2

OUTPUT:

  • AC active power (nominal) 25000 W
  • Maximum apparent power AC 27500 VA
  • Max active power. AC (PF=1) 27500 W
  • Max AC output current 3 x 40 A
  • Nominal AC voltage AC 380 V/400 V, 3F+N+PE
  • AC voltage range 277 V÷520 V (adjustable)
  • Rated mains frequency 50 Hz / 60 Hz
  • Mains frequency range 45 Hz 55 Hz / 55 Hz 65 Hz
  • Harmonic distortion (THDI) < 3% (rated power)
  • DC current injection < 0.5% In
  • Power factor > 0.99 rated power


PROTECTIONS:

  • DC disconnect switch
  • Anti-island protection
  • AC overcurrent protection
  • Short-circuit protection
  • DC pole reversal control
  • DC and AC type II overvoltage discharger (VDR)
  • Ground fault detection
  • Leakage current voltage

GENERAL:

  • Type Transformerless
  • IP65 degree of protection
  • Self-consumption at night < 1W
  • Natural Cooling
  • Operating temperature range -25/+60 °C
  • Relative humidity range 0 ÷ 100%
  • Maximum operating altitude 4000 m (> 2000 m derating)
  • Noise level < 30 dB (measured at 1m)
  • Dimensions (WxDxH) 577 x 270 x 445 mm
  • Weight 41.5 kg

COMMUNICATION:

  • LED status display and LCD for data
  • Built-in Wi-Fi communication, built-in RS485, Ethernet (optional not built-in)
  • APP monitoring, Supervisory portal

CERTIFICATIONS:

  • Safety IEC62109-I, IEC62109-2
  • EMC EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
  • Standards IEC 0-21, IEC 0-16, RD1699
  • Warranty 5 years (10 years optional)

There are no reviews

Data sheet

Type:
Inverter
Power:
20 to 30KW
Degree of protection:
IP65
WIFI:
Integrated
MPPT:
2
Connection:
Three-phase
