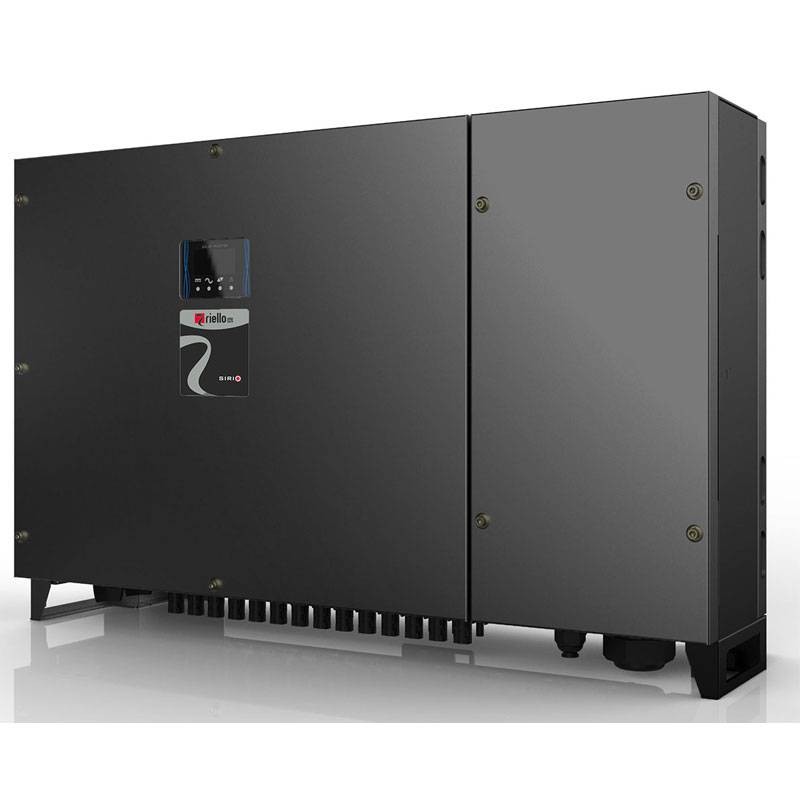

Riello Aros Sirio Photovoltaic Inverter ES-50 50KW Three Phase 4MPP WIFI 6PS350KESB
ARO 6PS350KESB
Riello Aros Sirio ES-50 Photovoltaic Inverter, Grid-connected solar string inverter:
- AC active power (nominal) 50KW
- Rated AC voltage V 380/400, 3L+N+PE
- Number of MPPTs 4MPP
- With DC Disconnect
- Built-in Wi-Fi communication , built-in RS485
This series refers to grid-connected PV systems on industrial or commercial rooftops, in power supply systems for supplementary lighting on farms or fish farms, and in large terrestrial power plants.
Typically, these inverters are used in grid-connected low-voltage PV systems.
Three modes of inverter operation: standby, running and off.
Riello Aros Sirio Photovoltaic Inverter ES-50 50KW Three Phase 4MPP WIFI 6PS350KESB
€5,695.74
Tax included
€5,695.74
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Pay in installments with Klarna
Series overview:
The SIRIO ES 50 60 and 110 kW string inverter range refers to grid-connected PV systems on industrial or commercial rooftops, in power supply systems for supplementary lighting on farms or fish farms, and in large terrestrial power plants. Typically, these inverters are used in grid-connected low- or medium-voltage PV systems.
Available in powers of 50 and 60 and respectively, they benefit from a completely new technology with the highest quality components that ensure maximum product reliability and enable them to achieve high efficiency under all operating conditions.
Extremely compact and lightweight, thanks to small dimensions and a weight of just over 70 kg with an IP65 degree of protection suitable for outdoor installation, the 50 and 60 kW models feature No. 4 MPPT trackers and No. 10 string inputs (12 for the 60 kW model). Maximum input voltage 1100 Vdc and wide operating range 200 1000 Vdc with permissible power overload capacity of 150%; all in order to always ensure maximum configuration flexibility, yield optimization and extended energy production time.
All SIRIO ES models have a European efficiency of more than 98.5 percent are equipped with a DC-side double disconnect switch, the DC and AC type II arresters, controlled forced ventilation and Bluetooth or BUS 485 standard interconnection (Wi-Fi and Ethernet optional). Innovative digital control of all power stages ensures low sensitivity to network disturbances, preventing unwanted disconnections in the presence of variations or micro interruptions.
Features:
EFFICIENCY:
- Maximum efficiency 99%.
- European efficiency 98.5%
INPUT:
- Minimum DC power W 40,000
- Maximum DC power W 75,000
- Maximum input voltage V 1100
- Rated input voltage V 620
- Maximum input current A 2 x 39A + 2 x 26A
- Maximum short-circuit current A 2 x 45A + 2 x 30A
- Minimum starting/operating voltage V 250/250
- MPPT operating voltage range V 200 ÷ 1000
- Operating voltage range (full load) MPPT V 200 ÷ 1000
- Maximum number of PV strings 10 (3/3/2/2)
- Number of MPPTs 4
OUTPUT:
- AC active power (nominal) W 50,000
- Maximum apparent AC power VA 55,000
- Max. active power. AC (PF=1) W 55,000
- Max. ac output current A 3x76A
- Rated AC voltage V 380/400, 3L+N+PE
- AC voltage range V 277 ÷ 520 (configurable)
- Rated mains frequency Hz 50 / 60
- Mains frequency range Hz 45-55/55-65
- Harmonic distortion (THDI) < 3 % (rated power)
- DC current injection < 0.5 %In
- Power factor > 0.99 rated power (adjustable 0.8 inductive 0.8 capacitive)
PROTECTIONS:
- DC disconnect switch YES
- Anti-island protection YES
- AC overcurrent protection YES
- Short-circuit protection YES
- DC pole reversal control YES
- Surge arresters (VDR) DC type II / AC type II
- Earth leakage detection SI
- Leakage current protection YES
GENERAL:
- Transformerless type
- Degree of protection IP65
- Self-consumption at night W < 1
- Forced cooling with speed-controlled fans
- Operating temperature range °C -25 ÷ 60
- Relative humidity range % 0 ÷ 100
- Maximum operating altitude m 4000 (> 2000 derating)
- Noise dB < 50 (measured at 1m)
- Dimensions (WxDxH mm) 855x275x500
- Weight Kg 73
COMMUNICATION:
- LCD display + LED
- Built-in Wi-Fi communication , built-in RS485
- Ethernet (optional to be purchased separately)
- APP monitoring, supervision portal
CERTIFICATIONS:
- Safety IEC62109-I, IEC62109-2 EMC
- IEC 0-21, IEC 0-16, RD1699, IEC62727, IEC62116 standards
- 5-Year Warranty
There are no reviews
Data sheet
- Type: Inverter
- Power: 31KW to 60KW
- Degree of protection: IP65
- WIFI: Integrated
- MPPT: 4
- Connection: Three-phase
