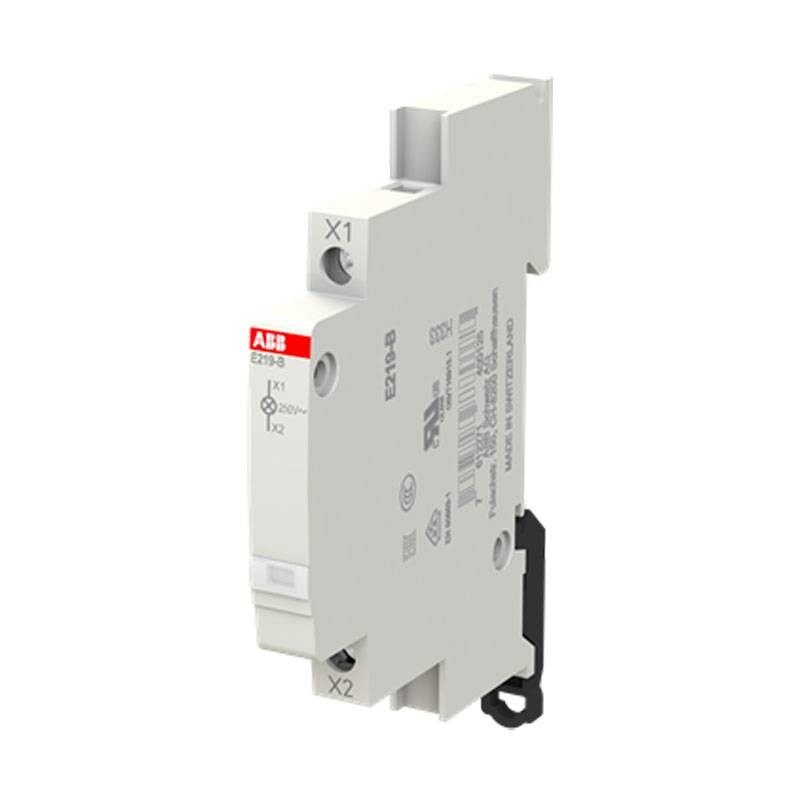

Din Abb Led indicator light white E219 230 Vac 0.5 Module M093928
ABB M093928
4012233005901
Abb Led indicator light white E219 with the following characteristics:
- Rated operating voltage: 115 - 230V
- Rated insulation voltage (Ui): 250V
- Impulse withstand voltage (Uimp): 4 kV
- Rated current (In): 16 A
- Rated frequency (f): 50/60 hz
- Power loss: 0.47-1W
- Power Watt: 0.47 W
- Number of LEDs: 2
- Tightening torque: 1.2-1.5 Nm
- Conductor material: Copper
- Lamp color: White
- Connection capacity: Rigid 1x16 mm² - Rigid 2x2.5 mm² - Flexible 1x0.752x2.5 mm²
- Degree of protection: IP20
- Width in number of modular intervals: 0.5
- Product width: 9 mm
- Product height: 85 mm
- Product depth: 68 mm
- Product length: 93mm
- Built-in depth (t2): 58mm
Din Abb Led indicator light white E219 230 Vac 0.5 Module M093928
€11.76
Tax included
€11.76
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 5
Pay in installments with Klarna
The E219 range of indicator lights are available in 9mm width (0.5 modules) and can be used to indicate operating conditions such as signaling a phase loss.
Using LED technology, these indicator lights offer increased brightness and durability; available in 4 different supply voltages and in dual and triple LED indicator light versions in the same 9mm device.
There are no reviews
Data sheet
- Type: Alert
- Voltage: 230VAC
- Modules: 0.5
- Amps: 16A
