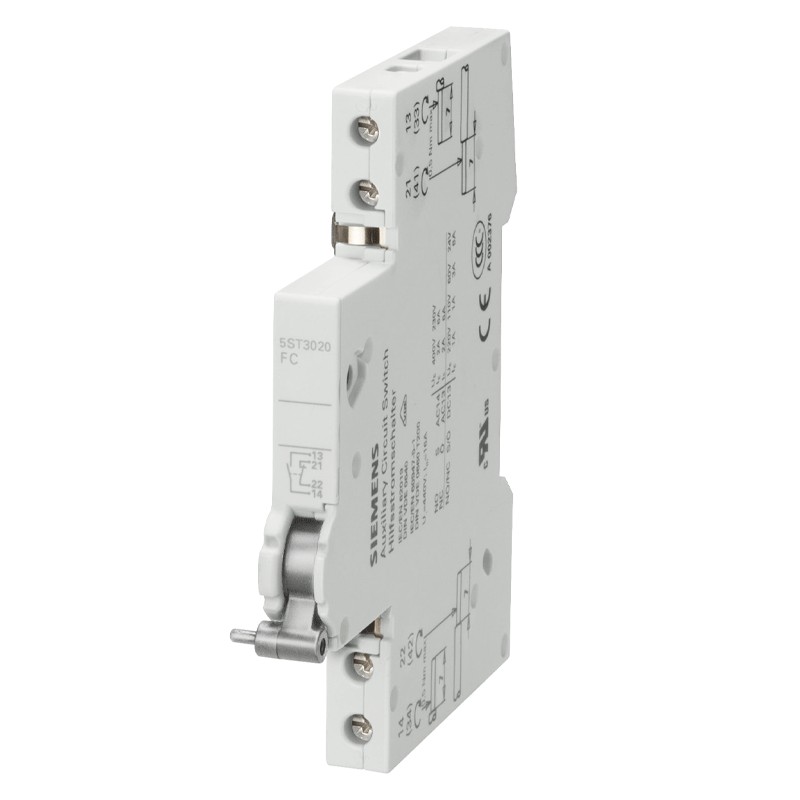

Fault signal contact Siemens 1NA+1NC 0.5 modules 5ST3020
SIE 5ST3020
4001869187433
Contact for Siemens fault signal, with the following characteristics:
- Contacts 1NO+1NC
- 0.5 module
- Electrical service life (switching cycles) typ 10,000
- Insulation voltage nominal value 440 Vac
- Rated impulse withstand voltage 4 kV
- Degree of protection IP20
- Connectable conductor cross section min 0.5 mm² - max 2.5 mm²
- Tightening torque with screw terminals max 1 Nm
- Ambient temperature during operation min -25 °C - max 55 °C
- Ambient temperature during storage min admissible -40 °C - max admissible 75 °C
Fault signal contact Siemens 1NA+1NC 0.5 modules 5ST3020
€18.69
Tax included
€18.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 205
: 19
Features:
- Siemens series
- Contacts 1NO+1NC
- 0.5 module
- Electrical life (switching cycles) typ 10.000
- Insulation voltage nominal value 440 Vac
- Impulse withstand voltage nominal value 4 kV
- Degree of protection IP20
- Number of error signalling contact blocks 1
- Number of NC contacts 1
- Number of NO contacts 1
- Number of CO contacts 0
- Connectable conductor cross section min 0.5 mm² - max 2.5 mm²
- Tightening torque with screw terminals max 1 Nm
- Type of conductor cross-sections that can be connected with AWG 24...12 conductors
- Height 90 mm
- Width 9 mm
- Depth 70 mm
- Net weight 56 g
- Ambient temperature during operation min -25 °C - max. 55 °C
- Ambient temperature during storage min admissible -40 °C - max admissible 75 °C
There are no reviews
Data sheet
- Type:
- Auxiliary Contacts
- Model:
- Faults
