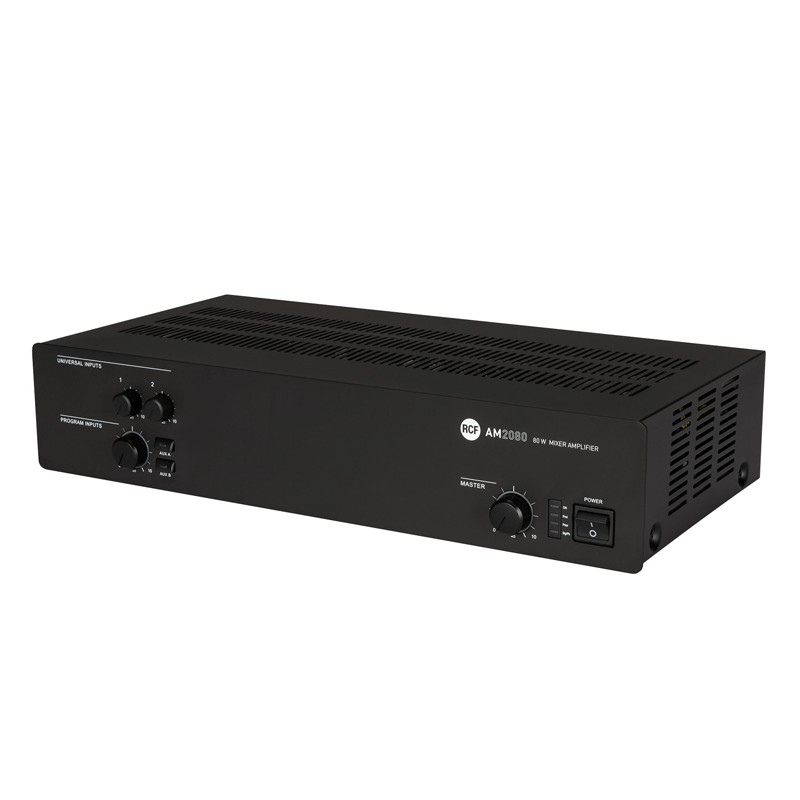

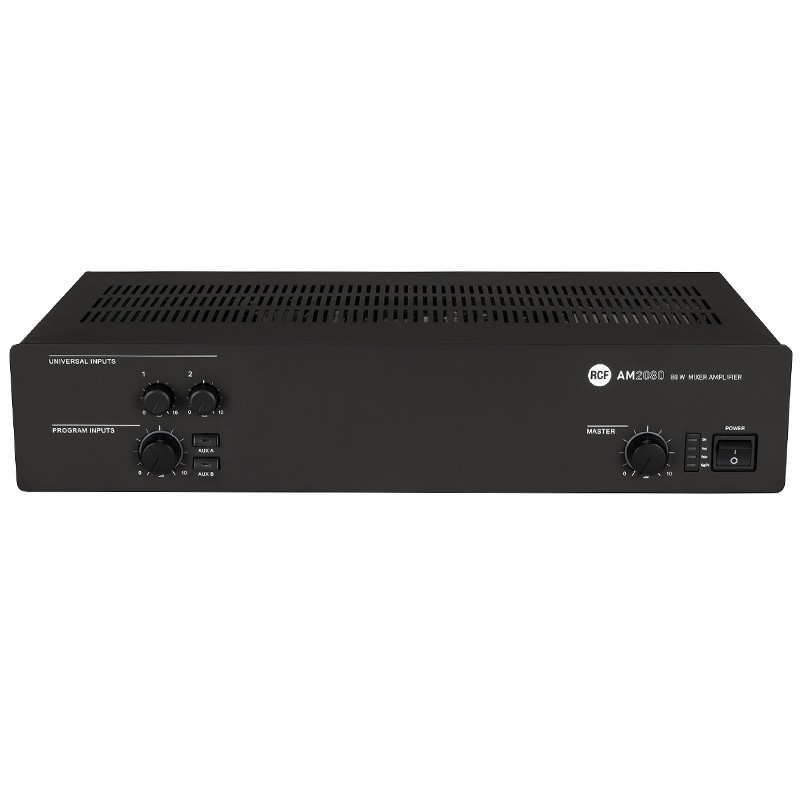

RCF MIXER 80W Audio Amplifier 12135062 AM2080
MAD 12135062
8024530006525
RCF MIXER 80W Audio Amplifier, with the following characteristics:
- Operating voltage 220-240/115V
- Frequency: 50/60 Hz
- Voltage selection : internal
- Power consumption ( max ) : 160W
- Number of channels : 1
- Output power @ 4 ohms (W): 80 W RMS
- Output power @ 100 V (W): 80 W RMS
- Frequency response (-3dB) : 50 Hz ÷ 16 Hz
- Signal-to-noise ratio (A-weighted) >80 dB
- Distortion (THD+N) @ 1 kHz at rated power: <0.3 %
RCF MIXER 80W Audio Amplifier 12135062 AM2080
€413.59
Tax included
€413.59
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
AM 2080 is a mixer-amplifier having 2 mic.-line audio inputs on removable connectors (input 1 also has XLR connector) and 2 auxiliary inputs for any external sound sources (e.g., CD players, radio tuners, etc.). It has the power rating of 80W.
Strengths:
- Suitable for announcement, music and other systems.
- Input 1 has XLR connector
- Signal detection circuit (VOX) with priority activation function on input 1
- Inputs can get priority via an external control
- Input 2 has an RJ 45 connector for quick connection of a dedicated BM 3001 microphone stand
- Universal inputs have a common High Pass Filter useful for improving voice intelligibility
- 2 Auxiliary inputs, switchable via front buttons with LED indicators
- Auxiliary inputs with separate tone controls
- Auxiliary outputs for sending music source signals to additional amplifiers or to a telephone exchange
- LED's device status (ON, PROT), priority circuit activity (PRIOR) and audio signal level (SIG/PK)
Other technical features:
- Number of total inputs: 5
- Balanced: 5
- Unbalanced: 1
- Mono: 4
- Stereo: 2
- Line inputs: 2
- Line Connections: RCA
- Mic+Line inputs: 2
- Mic+Line Connections: Euroblock, XLR
- Phantom Mic+Line 30 V DC
- Voice: yes
- Paging input: 1
- Paging connection: RJ45
- Paging command: Contact
- Number of signal outputs: 2
- Signal output connections: RCA
- Power connections: Euroblock
- Tone controls: yes
- High-pass filter: 150 Hz
- CE marked
- Body material: metal
- Color: black
- Rack mount: 19", 2U
Configuration and control:
- Configuration: DIP switch, Front panel
- Priority yes
- Music on hold: yes
- Din-Don yes
Protections:
- Cooling: Convention
- Short Circuit: yes
- Thermal Protection: yes
- DC: yes
- Fuses: yes

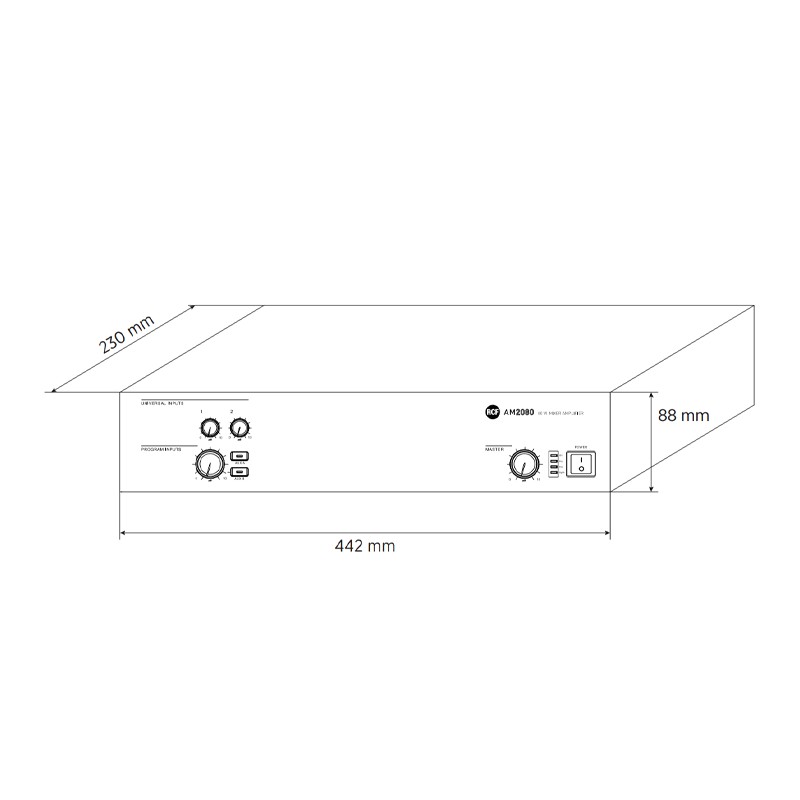

Dimensions and weight:
- Height: 88 mm / 3.46 inches
- Width: 442 mm / 17.4 inches
- Depth: 230 mm / 9.06 inches
- Weight: 3.77 kg / 8.31 lbs
