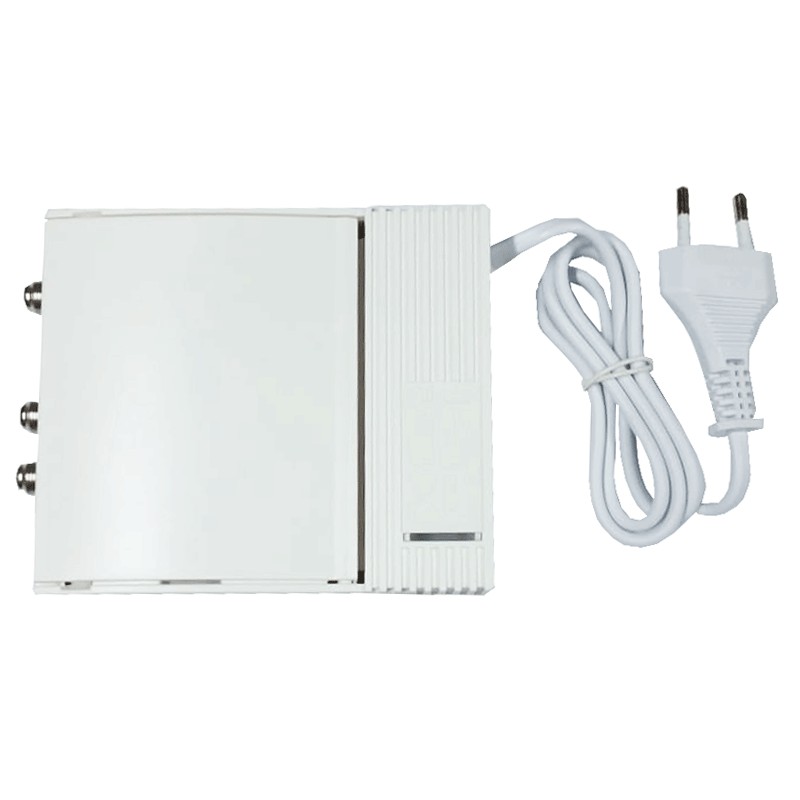

Fracarro indoor amplifier 1IN/2OUT 223231
FRA 223231
8016978078806
Fracarro indoor amplifier 1IN/2OUT.
Fracarro indoor amplifier 1IN/2OUT 223231
€36.12
Tax included
€36.12
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 1
Pay in installments with Klarna
Indoor amplifiers that allow to amplify and distribute the TV signal to all sockets in apartments and houses, ensuring an optimal signal level in all points of the system. Compact and elegant design. Compatible with DTT signals in COFDM modulation.
Features:
- Power supply 220-240 Vac
- Frequency 50-60 Hz
- Insulation class II
- Impedance IN OUT Ohm 75
- IN and OUT connectors F female
- Linearity in band dB 4
- Max power consumption W 1,8
- Operating temperature °C -10 ÷ 55
- Dimensions mm 120x97x43
- Conformity Standards EN50083-2, EN60065
- Directives 89/336/EEC (EMC), 73/23/EEC (low voltage)
- Built-in Switching power supply with high efficiency and low consumption
- Screwdriver included for adjusting the gain and tilt
- Adjustments housed under the door, openable or completely detachable
- Slots for internal wall mounting, not visible from the outside for visible installations
- Green power on led
- Dimensions 120x97x43mm
- Inputs: 1
- Bands: TV (47-862 MHz)
- Gain dB: 15
- Outputs: 2
- Noise figure dB:
- Output level dBµV: 2x104
come sempre l'amplificatore Fracarro AFI da il meglio di se, con una figura di rumore molto contenuta che non altera la qualità del segnale già amplificato due volte... Perfetto
Ottimo prodotto e rapidi nella spedizione.
Prodotti già conosciuto ottimo rapporto qualità prezzo
Prodotto valido e di semplice installazione
Apparecchio come da decrizione soddisfatissimo
Tutto ok ottimo prodotto.Ricevuto ancor prima della data riportata nel tracking
Data sheet
- Type: Amplifiers
- Version: 1IN/2OUT
- Model: From the inside
