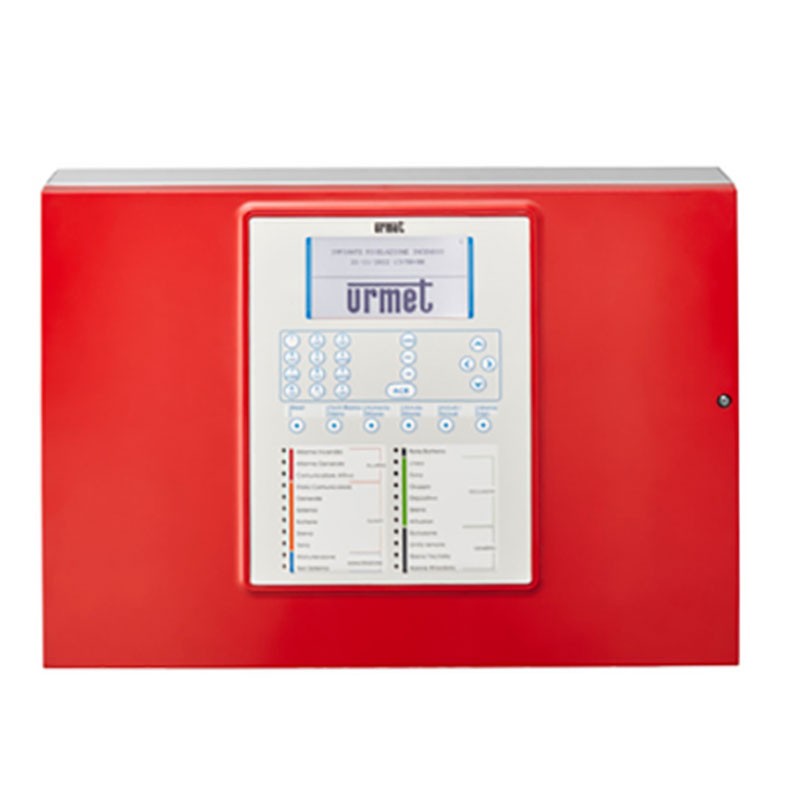

Urmet digital fire control panel 1-loop 1043/550A
UTD 1043/550A
8021156040841
Urmet 1-line loop digital fire control panel with the following features:
- Basic configuration: 1 loop line (class A) or 2 open lines (class B)
- Ability to manage up to 128 points per loop
- 480 programmable zones
- 240 groups of devices
- Point self-learning
- Backlit color display
- New icon and menu graphics
- History log: 1,000 events
- Chronological history viewable directly from display
- 10 passwords programmable on 3 levels
Urmet digital fire control panel 1-loop 1043/550A
€597.91
Tax included
€597.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 3
Pay in installments with Klarna
The 500 series digital system gets a makeover with new fire detection control panels: three models of different sizes, improved in design, graphics and configuration and control tools, ideal for tertiary applications with high management requirements.
The system features a high-performance communication platform that enables networking of multiple control panel models, remote communication via IP carriers (ethernet/wifi), and data and event transmission with 4G and IP communicators.
The system manages:
- 480 zones, each configurable in a specific type of operation (fire, technological, etc.)
- 240 groups of devices, each freely assignable to multiple zones, to provide a high level of cross-checking
- Monitoring of detector sensitivity index and dirt rate
- Identification of detector, device, communication modules and zone; event memory (up to 1,000)
The new 500 series control panels have been implemented by:
- A new "11224" menu that facilitates the installer in maintenance procedures, as per the provisions of the UNI 11224 standard
- A new color display, larger than the previous one, which makes it easier to read system statuses through the use of icons
- A new configuration software, which can be downloaded free of charge from the Urmet website
- A new supervision and graphic mapping software
- A management and verification app for the user
Other technical features:
- Urmet Series
- USB port for local PC connection to perform programming via software
- LAN/TCP/IP communication port
- RS485 port for repeater panels: max 16
- RS 485 master/slave port: max 32
- Ability to monitor detector sensitivity index and dirt percentage
- Built-in real time clock with battery backup
- Non-volatile memory
- Alarm data storage in devices
- Monitoring of the first 10 devices that go into alarm with both graphical and numerical display of time trends
- Viewing of history and maintenance operations with menu 11224
- Central unit outputs: 4 (siren relay, alarm relay, fault relay, programmable relay)
- Internal buzzer
- Single point/zone/line exclusion
- Power supply: 230 Vac
- Maximum deliverable current: 1.5Ah 24V
- Limitation of battery charge and control of battery status
- Accumulator housing: 2 12V 12Ah batteries
- Possibility of making loops max 2 km with 2x1.5 mm² shielded cable
- Noise immunity up to 10 Vm
- Common dialogue protocol for all system control panels
- Dimensions (W x H x D): 490 x 350 x 145 mm
- EN54 part 2 and part 4 certificate, no. 0051-CPR-0243
There are no reviews
Data sheet
- Type: Control units
- Zone: 1
