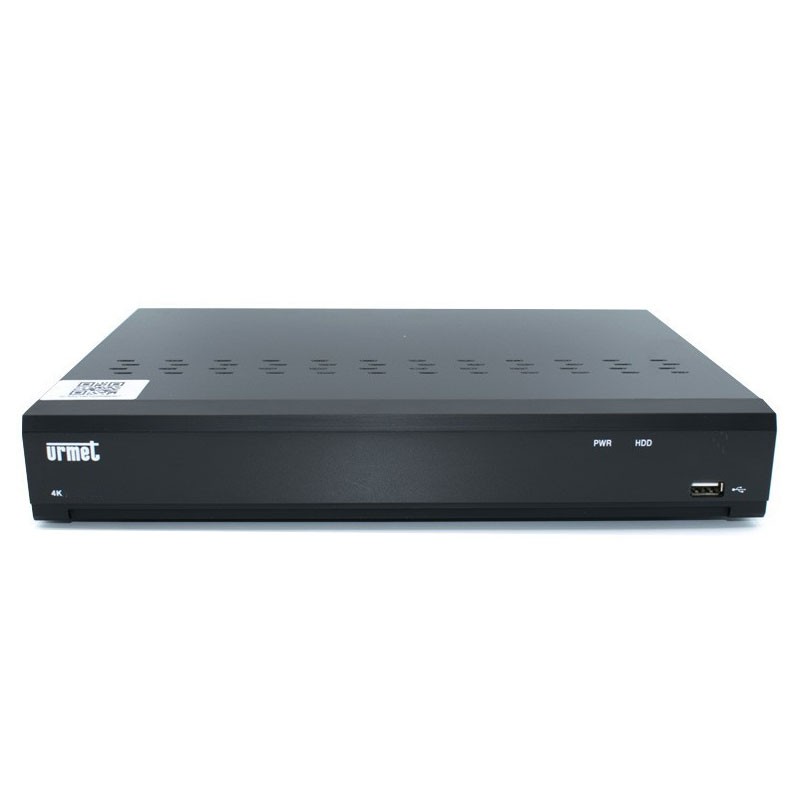

Video Recorder NVR Urmet Lite AHD 5M-N 8 Channels H.265 1097/578
UTD 1097/578
8021156071395
NVR Urmet Lite AHD 5M-N 8 Channels H.265 video recorder with the following features:
- Compression formats: Video: H.265 / H.264 - Audio: G.711a
- HD included: 1000 GB hard disk (default)
- Recording Resolution: 5M Lite
- Video Inputs: 8-CH input with BNC video / 4-CH input with IP video
- Audio Inputs/Outputs: 8-CH RCA Input / 1-CH RCA Output.
The HVR AHD 5M lite range features the most advanced functionality, compatibility with Analog, CVI, TVI and AHD 720P, 1080P, 5M IP, IP Wi-Fi cameras.
Video Recorder NVR Urmet Lite AHD 5M-N 8 Channels H.265 1097/578
€233.70
Tax included
€233.70
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 4
Pay in installments with Klarna
The HVRs can be remotely managed by both Windows and MAC systems, compatible with the UVS software and the iUVS pro App that allows convenient management from all smartphones, iPads and tablets both Android and iOS. Among the main features there is also the UTC function that allows the visualization and the management of the OSD menu of the cameras directly from the HVR.
Features:
- Compression formats: Video: H.265 / H.264 - Audio: G.711a
- Video inputs: 8-CH input with BNC video / 4-CH input with IP video (up to 12-CH with IP video input) (up to 12-CH with mixed video input: Analog + IP)
- Audio Inputs/Outputs: 8-CH RCA Input / 1-CH RCA Output
- Recording Resolution: 5M Lite(1280x1944)/ 4M Lite(1280x1440) / 1080P(1920x1080) / 720P(1280x720) / WD1(960x576)
- Recording Frame Rate: Main Stream Analog: 5MP-Lite:12fps(per single ch) / 4MP-Lite:18fps(per single ch) / 1080P:15fps(per single ch) / 720P:PAL:25fps(per single ch) / NTSC:30fps(per single ch) IP:PAL:25fps(per single ch) / NTSC:30fps(per single ch) Sub-stream Analog Max PAL:704*576:10fps(per single ch) NTSC:704*480:10fps(per single ch)
- IP Recording Bandwidth: 16Mbps ~48Mbps (default 16Mbps, for each analog channel excluded, the bandwidth increases about 4Mbps)
- Maximum output bandwidth: 64Mbps
- Hard Disk Interface: Max. 1 Sata HDD (Max. 8T)
- Included HD: 1000GB HDD (default)
- Storage Spaces: External USB device /e-SATA / Network
- Web software / Multilingual client: Internet Explorer 10/11 / UVS pro
- Intelligent Video Analysis (for coaxial inputs): PID / LCD / PD / SOUND DETECTION / VIDEO TAMPERING
- Intelligent Video Analysis (based on IP camera model): Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Stationary Object Detection (SOD), Pedestrian Detection (PD), Face Detection (FC), Cross Counting (CC), Sound Detection, Video Tampering
- Alarm I/O: 8-CH Alarm Input, 1-CH Alarm Output
- PDA Mobile Software: Urmet iUVS PRO (iOS, Android)
- USB Ports : N°1 - 2.0 + N°1 - 3.0
- Ethernet : Self-adaptive interface RJ-45 10M/100MB
- Network Protocols : TCP/IP, DHCP, UDP, Urmet DDNS / UrmetDDNS2 with ID, P2P, PPPOE, Cloud Storage , SMTP , HTTPS , PPPPoE , FTP , RTSP , UPNP , SNMP
- BNC Output: 1 Out (704*576) Only for SPOT functionality for analog channels
- VGA Output: YES
- HDMI Output: YES
- Power Consumption: 10.9W (6.4W without HD)
- Power supply: 12V / 2A
- Operating Temperature: 0°C~+40°C / below 90%RH
- Cooling Fans: NO
- Dimensions (WXHXP): 300X53X227 mm
- Weight: 3 kg.
There are no reviews
Data sheet
- Type: Video recorders
- System: Hybrid
- Resolution: 5MP
- Channels: 8
