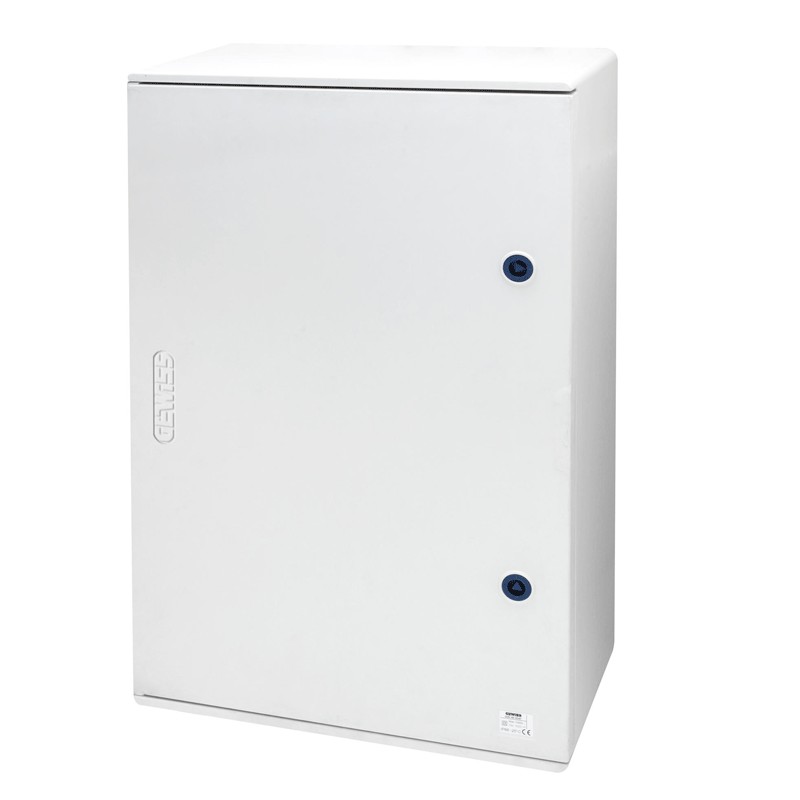

Gewiss wall-mounted electric box with blind door 310x425x160 IP66 GW46002F
GEW GW46002F
8011564854710
Gewiss wall-mounted electrical panel, with the following characteristics:
- Insulation voltage 1000 V
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 48W
- Dissipated power B 39W
Double insulation recovery kit GW46526.
Wall fixing brackets GW46446, GW46451.
Compatible accessories: GW46414, GW46402, GW46420F, GW46435F.
Gewiss wall-mounted electric box with blind door 310x425x160 IP66 GW46002F
€133.64
Tax included
€133.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 88
: 12
Pay in installments with Klarna
Frequently bought together
Features:
- Blind door with lock

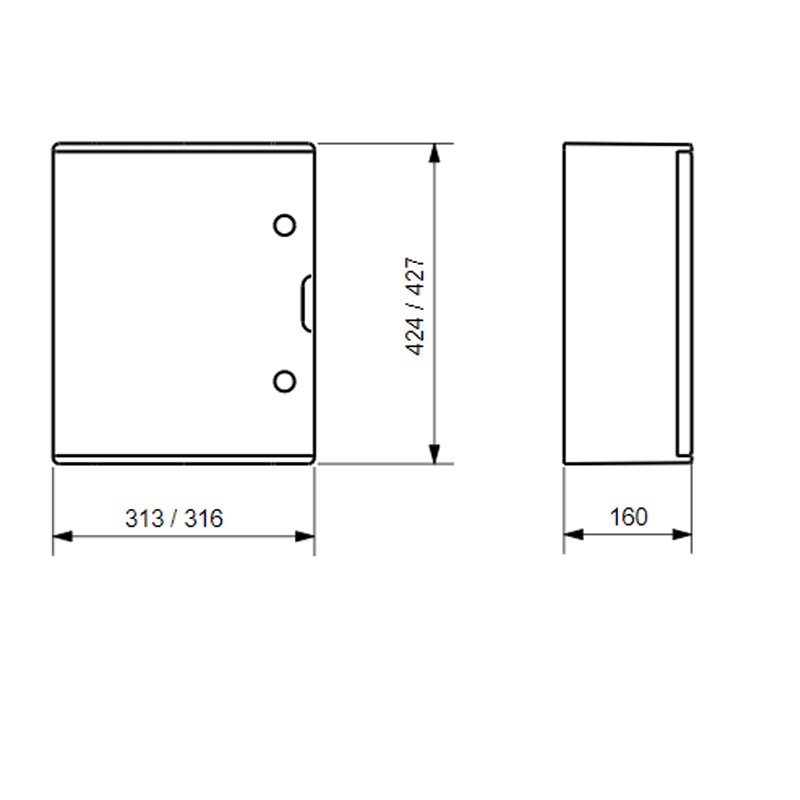

- Nominal dimensions BxHxD: 310x425x160 mm
- IP66 degree of protection
- Shock resistance: IK10
- Number of modules: .36 (on three rows) (EN 50022)
- Insulation class II
- UV resistance (EN 62208)
- Material glass-fibre reinforced polyester
- Type Material Halogen free according to EN 60754-2 standard
- Standard: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Colour: grey RAL 7035
- Glow wire resistance 960 °C
- Electrocod Code 0321
- Family 46 QP
- Number of locks: 2
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
There are no reviews
Data sheet
- Type: Panels
- Degree of protection: IP66
- Model: Blind Door
