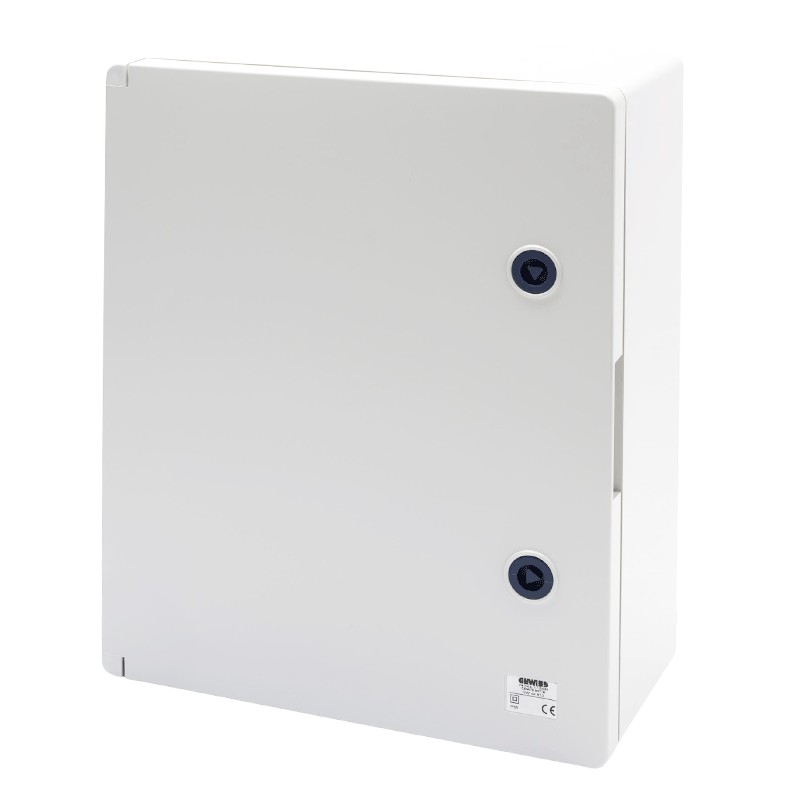

Gewiss wall-mounted enclosure 316x396x160 IP55 GW44810
GEW GW44810
8011564028463
Gewiss watertight wall-mounted enclosure with the following characteristics:
- Maximum rated operational voltage (Ue) 750 V
- Insulation voltage 750 V
- Power dissipation B 34W
- Dissipated power A 42W
Accessories for restoring insulation GW44621,GW46446,GW46451.
Gewiss wall-mounted enclosure 316x396x160 IP55 GW44810
€115.02
Tax included
€115.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
: 13
Pay in installments with Klarna
Frequently bought together
Features:
- Blind door with lock

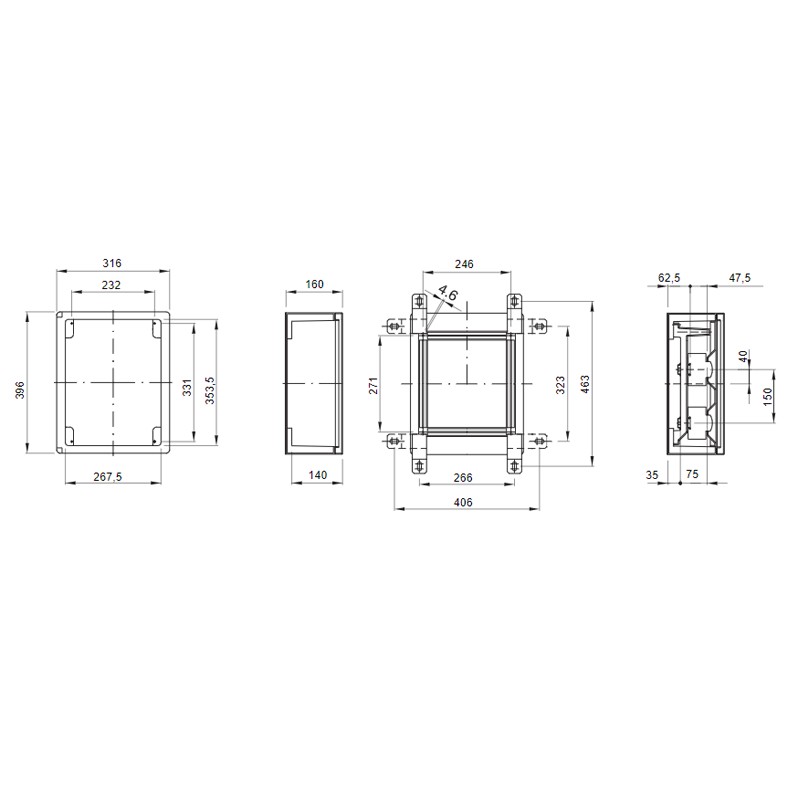

- External dimensions BxHxD: 316x396x160 mm
- Degree of protection IP55
- Shock resistance: IK08
- Number of modules: 24 (on two rows) (EN 50022)
- Insulation class II
- Material technopolymer GWPLAST 120
- Type Material Halogen free according to EN 60754-2 standard
- Standard: EN 61439-1, EN 61439-2, EN60670-1, IEC 60670-24
- Colour: grey RAL 7035
- Glow wire resistance 650 °C
- Electrocod code 1312
- Family 44 CEP
- Number of locks: 2
- Operating temperature -25 +60 °C
- Thermopressure with ball 110 °C
Data sheet
- Type: Panels
- Degree of protection: IP55
- Model: Blind Door
