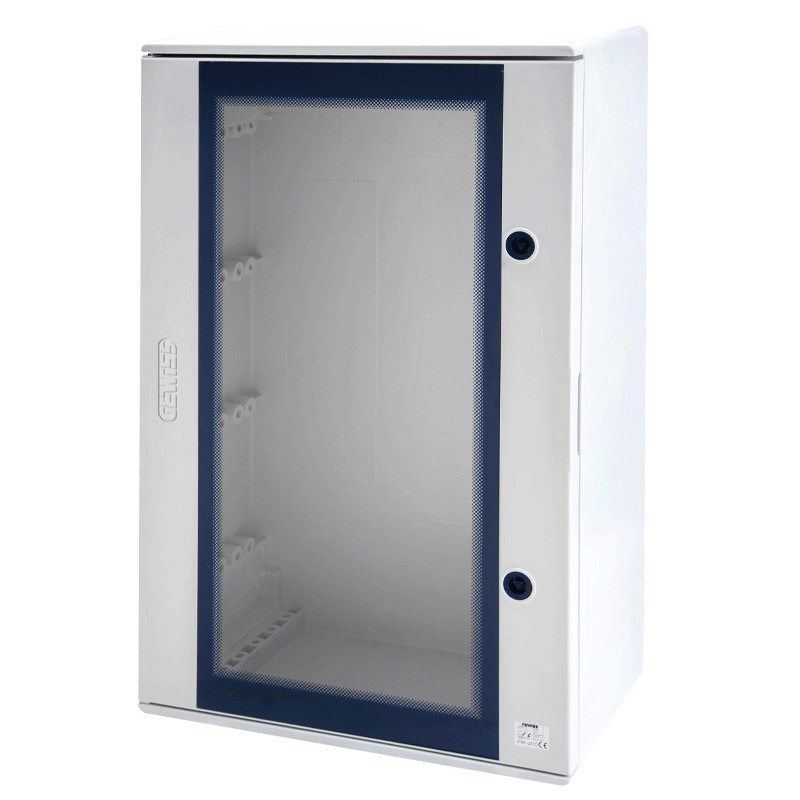

Gewiss wall-mounted switchboard with transparent cover 800x1060x350 IP66 GW46207F
GEW GW46207F
8011564854840
Gewiss wall-mounted switchboard, with the following characteristics:
- Insulation voltage 1000 V
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 324W
- Dissipated power B 226W
Double insulation recovery kit GW46526.
Wall fixing brackets GW46446, GW46451.
Compatible accessories: GW46407, GW46424F, GW46439F.
Gewiss wall-mounted switchboard with transparent cover 800x1060x350 IP66 GW46207F
€930.81
Tax included
€930.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
Pay in installments with Klarna
Frequently bought together
Features:
- Transparent door with lock
- Nominal dimensions BxHxD 800x1060x350 mm
- Functional dimensions BxHxD 783x1066x350 mm
- Number of modules: 180 (on five rows) (EN 50022)
- Insulation class: II
- Material: polyester reinforced with glass fibre
- Material type: Halogen free according to EN 60754-2 standard
- Colour: grey RAL 7035
- Impact resistance: case IK10
- Degree of protection IP66
- Electrocod code 0321
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QP
- Characteristics: UV resistance (EN 62208)
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
There are no reviews
Data sheet
- Type: Panels
- Degree of protection: IP66
- Model: Glass Door
