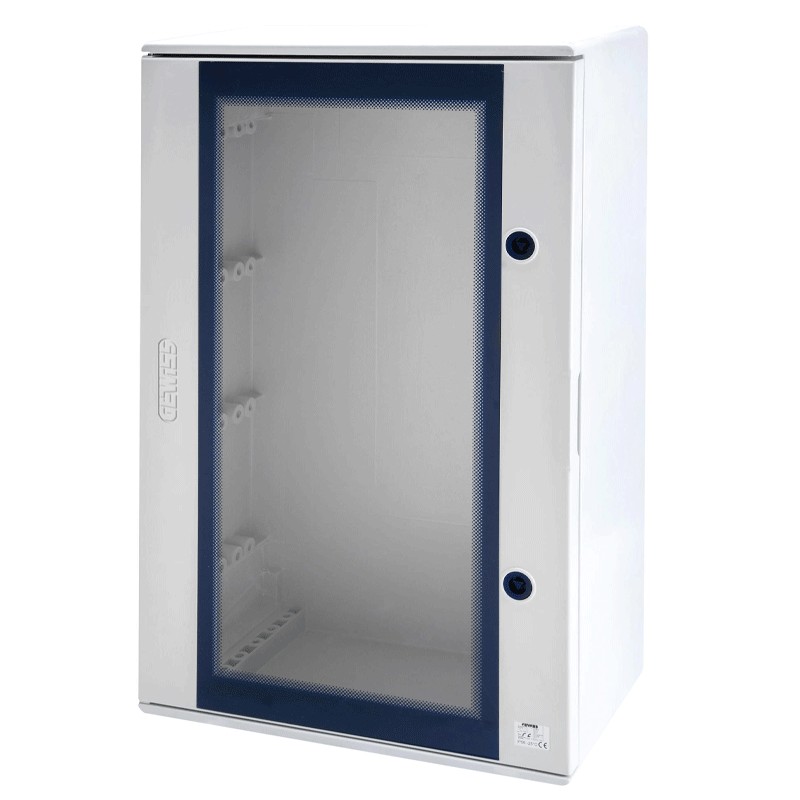

Gewiss wall-mounted switchboard with transparent door 405x500x200 IP66 GW46203F
GEW GW46203F
8011564854802
Gewiss wall-mounted switchboard, with the following characteristics:
- 1000 V insulation voltage
- Insulation voltage 1000 V according to EN 62208 both in AC and DC
- Maximum nominal operating voltage (Ue) 690 V
- Power dissipation A 95W
- Power dissipation B 53W
Double insulation recovery kit GW46526.
Wall fixing brackets GW46446, GW46451.
Compatible accessories: GW46421F, GW46436F, GW46403, GW46415.
Gewiss wall-mounted switchboard with transparent door 405x500x200 IP66 GW46203F
€232.04
Tax included
€232.04
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
: 3
Pay in installments with Klarna
Frequently bought together
Features:
- Transparent door with lock

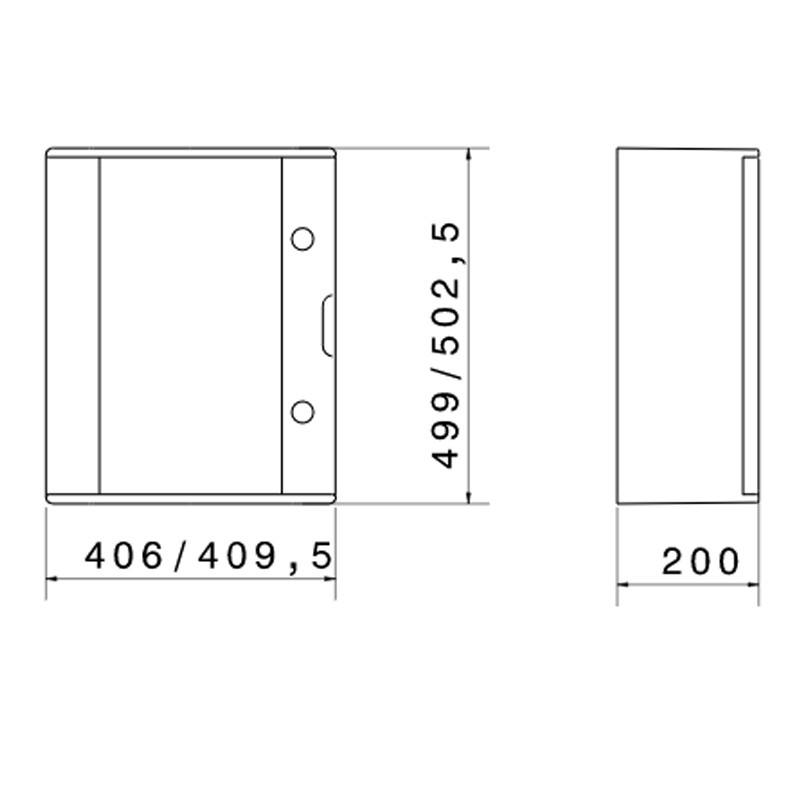

- Nominal dimensions BxHxP 405x500x200 mm
- Functional dimensions BxHxD 409,5x502,5x200 mm
- Number of modules: 54 (on three rows) (EN 50022)
- Insulation class: II
- Material: polyester reinforced with glass fibre
- Material type: Halogen free according to EN 60754-2 standard
- Colour: grey RAL 7035
- Impact resistance: case IK10
- Degree of protection IP66
- Electrocod code 0321
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QP
- Characteristics: UV resistance (EN 62208)
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
There are no reviews
Data sheet
- Type: Panels
- Degree of protection: IP66
- Model: Glass Door
