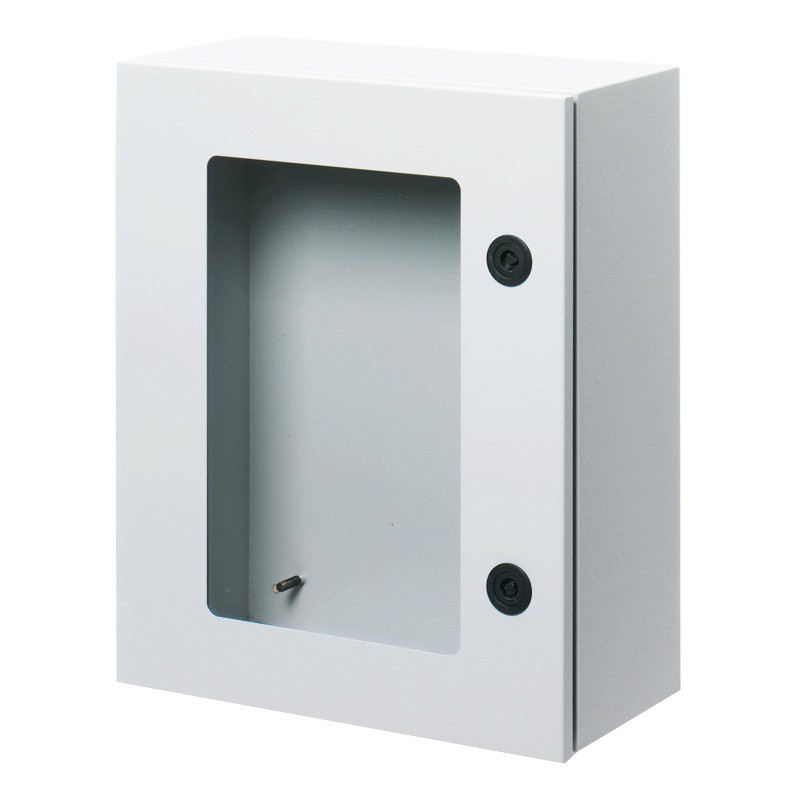

Metal cabinet with transparent door 515x650x250 IP55 GW46236
GEW GW46236
8011564096929
Gewiss metal switchboard, with the following characteristics:
- Maximum rated operating voltage (Ue) 690 V
- Power dissipation A 240W
- Dissipated power B 159W
Compatible accessories: GW46406, GW46423F, GW46428F, GW46438F.
Metal cabinet with transparent door 515x650x250 IP55 GW46236
€509.95
Tax included
€509.95
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Door equipped with tempered glass porthole and lock

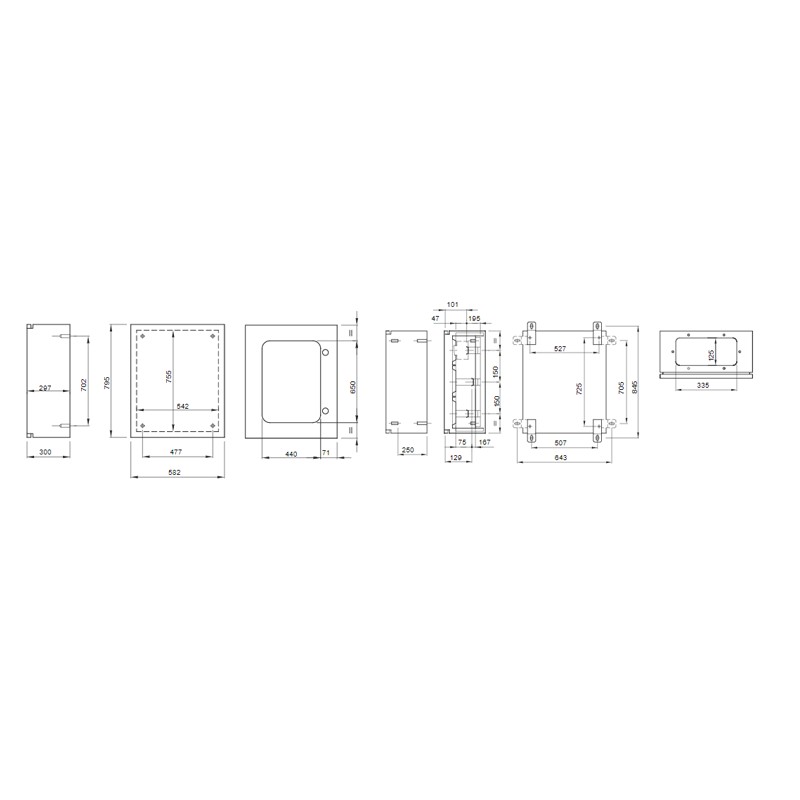

- Nominal dimensions BxHxD 585x800x300 mm
- Functional dimensions BxHxD 585x800x300 mm
- Number of modules: 140 (on five rows) (EN 50022)
- Insulation class: prepared with earthing collar
- Material: sheet metal from 10/10 to 15/10 with epoxy-polyester powder coating
- Material type: metal
- Colour: grey RAL 7035
- Impact resistance: IK08
- Degree of protection IP55
- Code Electrocod 0320
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QM
- Application: for internal use
- Operating temperature -25 +60 °C
There are no reviews
Data sheet
- Type: Panels
- Degree of protection: IP55
- Model: Glass Door
