Bentel Wireless Bentel Alarm Kit via Radio with 30 Zone Control Panel BW30-K

Brand: Bentel

Cod: BSY BW30-K EAN: 7290105403513

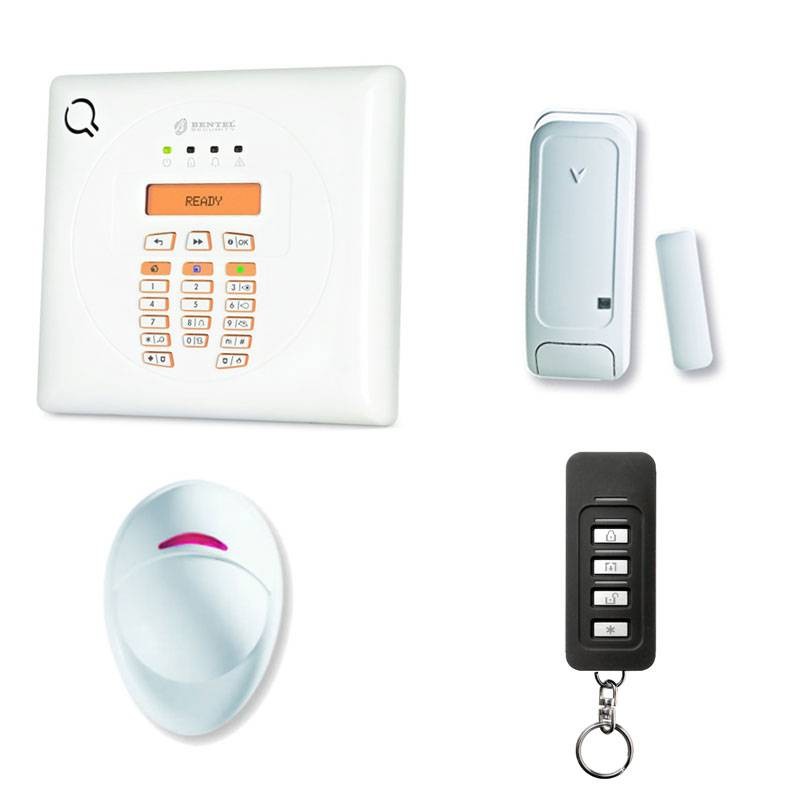

Bentel Wireless two-way radio alarm kit, consisting of:

1 piece compact central unit via radio with 30 detection zones (art. BW30)
1 piece radio control unit (item BW-RCH)
1 piece wireless magnetic opening radio contact (item BW-MCN)
1 piece passive infrared radio volumetric detector (item BW-IRD)

Bentel Wireless Bentel Alarm Kit via Radio with 30 Zone Control Panel BW30-K

€391.01 Tax included

€391.01

Bentel Wireless Bentel Alarm Kit via Radio with 30 Zone Control Panel BW30-K

€391.01
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 2

: 1

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Frequently bought together

Bentel GPRS GSM module for BW control panels BW-3G

BSY BW-3G

€201.22

Bentel wireless magnetic contact for BW control panels BW-MCN

BSY BW-MCN

€56.72

Bentel radio key remote control for BW central BW-RCH

BSY BW-RCH

€64.00

Description

KIT component specifications:

1-piece 30 detection zone compact radio central unit (item BW30): Ideal for medium commercial and residential installations. Each detection zone is identified by zone number and name (location).

Specifications:

Zones: 30
Proximity tags: 8
Internal siren: built-in
Radio keys: 8
Keypads: 8
Users: 8
Wired siren: No
Wired zones: 1
Event log: 250
Wired expansions: No
Voice messages: No
Areas: 3
Backup battery: 12h or 24h
Power supply: Internal
Communications: Built-in PSTN, (GSM/GPRS module optional)
Repeaters: 4

1 piece radio remote control (Art. BW-RCH): Ergonomically designed with immediate status indication, The BW-RCH is a 4-button miniature remote control for BW control panels designed for use with BW series control panels. It enables system arming and disarming, system status display, and operation of a predefined programmable function. Commands are activated by pressing one of the four control buttons. The status is indicated by the status LEDs and the buzzer after each command. It sends an alert to both the control panel and the user if the battery is exhausted and needs to be replaced.

Features:

Frequency band (MHz) 868-869
Low battery threshold 2.2 V
Expected battery life 8 years (with normal use)
Power supply C
Operating temperature: 0 °C to +55 °C

1 piece wireless magnetic opening radio contact (item BW-MCN): Bentel magnetic contact, wireless for door/window, for BW control panels, via radio with auxiliary input. It is a two-way radio magnetic contact for BW control panels. The device includes a built-in reed contact (which opens upon removal of the magnet placed near it) and a wired auxiliary input, programmable as N.O.(Normally Open = Normally Open), N.C (Normally Closed) or E.O.L. (End Of Line = End Of Line), for use with additional detectors (pressure detectors, magnetic door contacts, etc.).Itcanbe configured via BW series control panels to allow the installer to disable the reed contact if only the auxiliary input is required. The reed contact and auxiliary input behave as separate transmitters, although they activate the same RF transmitter. The BW-MCN sends the parameters of the specific alarm to the control panel using the BW control panel communication protocol. The BW-MCN's anti-sabotage switch is activated when the cover is removed. A periodic supervisory signal is automatically transmitted. The central unit is then informed, at regular intervals, of the active presence of the device in the system. An LED lights up whenever alarm or sabotage events are reported. The LED does not light during the transmission of a supervisory signal. The supply voltage is provided by an internal 3V lithium battery. When the battery voltage is low, a "battery low" signal is sent to the receiver.

Installation/assembly:

It is strongly recommended that the transmitter be placed on top of the door/window, on the fixed frame, and the magnet on the moving part (door or window). Make sure that the magnet is placed no more than 6 mm from the marked side of the transmitter.

Features:

Frequency band (MHz) 868-869
Supervision: Signaled at 4-minute intervals
Sabotage alarm: Signaled when a sabotage event occurs
Power supply Type C
Battery type Exclusively CR-123 3V lithium battery
Expected battery life 8 years (with normal use)
Low battery threshold 2.2V
Battery supervision: Automatic transmission of battery condition in periodic status reports and immediate upon detection of low battery condition
Operating temperature: 0°C to 49°C
Humidity: Average relative humidity of about 75% without condensation
For 30 days per year, relative humidity can range from 85% to 95% non-condensing
Dimensions (WxHxD) 81 x 34 x 25 mm
Weight (including battery) 53 grams

1 piece Passive Infrared radio volumetric detector (item BW-IRD): It is a microprocessor-controlled, two-way passive infrared type digital radio detector with a combination of cylindrical and Fresnel lens, with a range of 15 meters. It includes protection of the antistrift zone (zone below the detector). Uses special technology to distinguish between humans and pets weighing up to 38 pounds. Includes a fully supervised BW central unit transceiver. Maximum recommended mounting height is 2.1 meters.

Strengths:

Sophisticated digital signal processing in the frequency domain
Built-in connection quality indicators; no need for the installer to get close to the control panel, making installation faster and easier
No need for vertical adjustment
A movement counter determines whether 1 or 2 consecutive movements will trigger an alarm
Automatic end of coverage test after 15 minutes
Microprocessor-controlled temperature compensation
A sealed chamber protects the optical system
Anti-sabotage switches on the front cover and back side for better protection
White light protection
