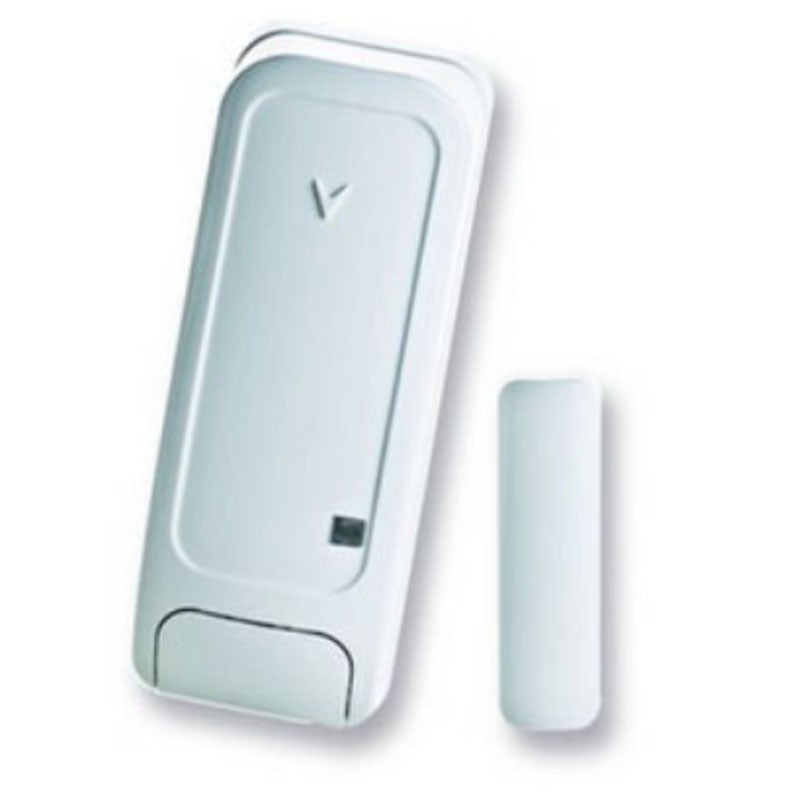

Bentel wireless magnetic contact for BW control panels BW-MCN
BSY BW-MCN
7290105402905
Bentel magnetic contact, wireless for door/window, for BW control panels, via radio with auxiliary input.
Bentel wireless magnetic contact for BW control panels BW-MCN
€56.72
Tax included
€56.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
: 13
Pay in installments with Klarna
Frequently bought together
The BW-MCN detector is a two-way radio magnetic contact for BW control panels. The device includes a built-in reed contact (which opens upon removal of the magnet placed near it) and a wired auxiliary input, programmable as N.O. (Normally Open), N.C (Normally Closed) or E.O.L. (End Of Line), for use with additional detectors (pressure detectors, magnetic door contacts, etc.).
The BW-MCN can be configured through the BW series control panels to allow the installer to disable the reed contact if only the auxiliary input is required. The reed contact and the auxiliary input behave as separate transmitters, although they activate the same RF transmitter. The BW-MCN sends the parameters of the specific alarm to the control panel using the BW control panel communication protocol. The BW-MCN's anti-sabotage switch is activated when the cover is removed.
A periodic supervisory signal is automatically transmitted. The central unit is then informed, at regular intervals, of the active presence of the device in the system. An LED lights up whenever alarm or sabotage events are reported. The LED does not light up during the transmission of a supervision signal. Power is supplied by an internal 3V lithium battery. When the battery voltage is low, a "battery low" signal is sent to the receiver.
Installation/Assembly:
It is strongly recommended to place the transmitter on top of the door/window, on the fixed frame, and the magnet on the moving part (door or window). Make sure that the magnet is placed no more than 6 mm from the marked side of the transmitter.
Features:
- Bentel Series
- Frequency band (MHz) 868-869
- Supervision: Signalling at 4 minute intervals
- Sabotage alarm: Signaled when a sabotage event occurs
- Power Supply Type C
- Battery type CR-123 3V Lithium battery only
- Battery life expectancy 8 years (with normal use)
- Low Battery Threshold 2.2V
- Battery Supervision: Automatic transmission of battery conditions in periodic status reports and immediate upon detection of low battery condition
- Operating temperature: 0°C to 49°C
- Humidity: Average relative humidity of about 75% non-condensing
- For 30 days per year the relative humidity can vary from 85% to 95% non-condensing
- Dimensions (WxHxD) 81 x 34 x 25 mm
- Weight (including battery) 53 grams
There are no reviews
Data sheet
- Type: Contacts
- System: Wireless
- Installation: Doors and Windows
