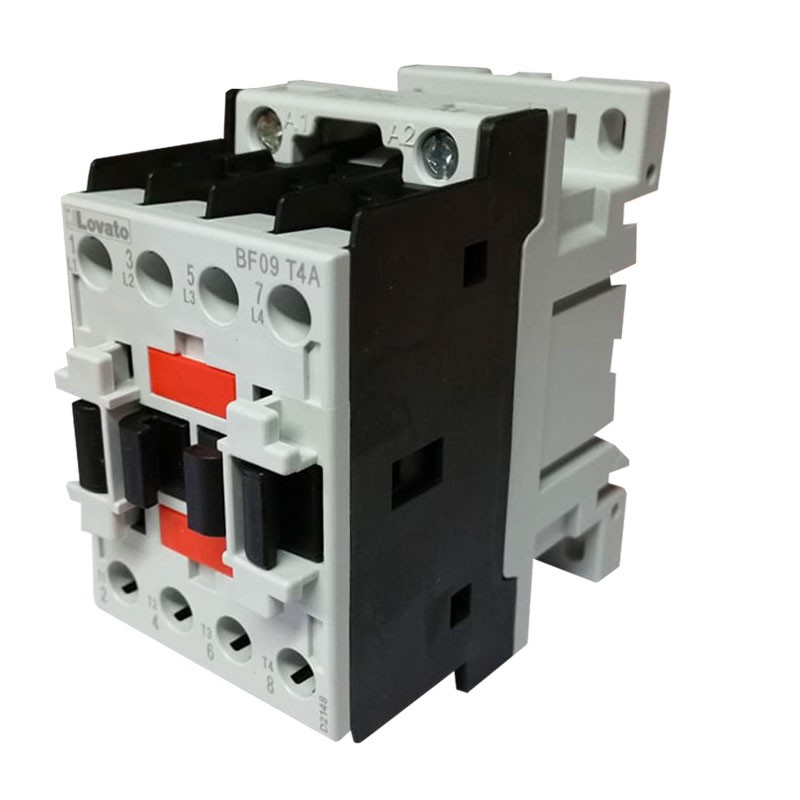

Lovato four-pole contactor 25A coil in AC 24VAC BF09T4A024
LOV BF09T4A024
8013975161333
Lovato four-pole power contactor with the following characteristics:
- IEC/EN rated insulation voltage Ui: IN 690
- Rated impulse withstand voltage UimpkV: 6
- Operating frequency: min Hz 25 - max Hz 400
- Number of poles: 4
- IEC Conventional free air thermal current Ith UN: 25
- Protective fuse: gG (IEC) UN 25 - aM (IEC) UN 10
- Output capacity (rms value):UN 90
- Resistance per pole (average value): mΩ 2.5
- Power dissipation per pole (average value): Ith In 1.6, AC3 In 0.2
Lovato four-pole contactor 25A coil in AC 24VAC BF09T4A024
€34.27
Tax included
€34.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Voltage breaking capacity:
- 440V UN 72
- 500V UN 72
- 690V UN 71
Other technical features:
- Maximum number of wires that can be connected simultaneously: 2
- Power terminal protection according to IEC/EN 60529: IP20 when wired
- Mechanical characteristics: normal vertical plane, allowable ±30°
- Fixing: screw-on / 35mm DIN rail
- Weight: 362 grams
- Conductor cross section AWG/kcmil: max 10
- Mirror counted according to IEC / EN 609474-4-1: YES
- EMC compatibility: YES
- Mechanical life cycles 20000000
- Electrical life cycles 2000000
- Operating AC coil: 50/60Hz nominal AC voltage IN 24
- Operating AC voltage of coil 50/60Hz supplied at 50Hz
- Dissipation at holding ≤20°C 50Hz: In 2.5
- Maximum frequency of cycles: mechanical operation cycles/h 3600
- Operating temperature: min °C -50 - max °C+70
- Storage temperature: min °C -60 - max °C 80
- Maximum altitude: m 3000
- Pollution degree 3
There are no reviews
Data sheet
- Type: Contactors
- Poles: 4P
