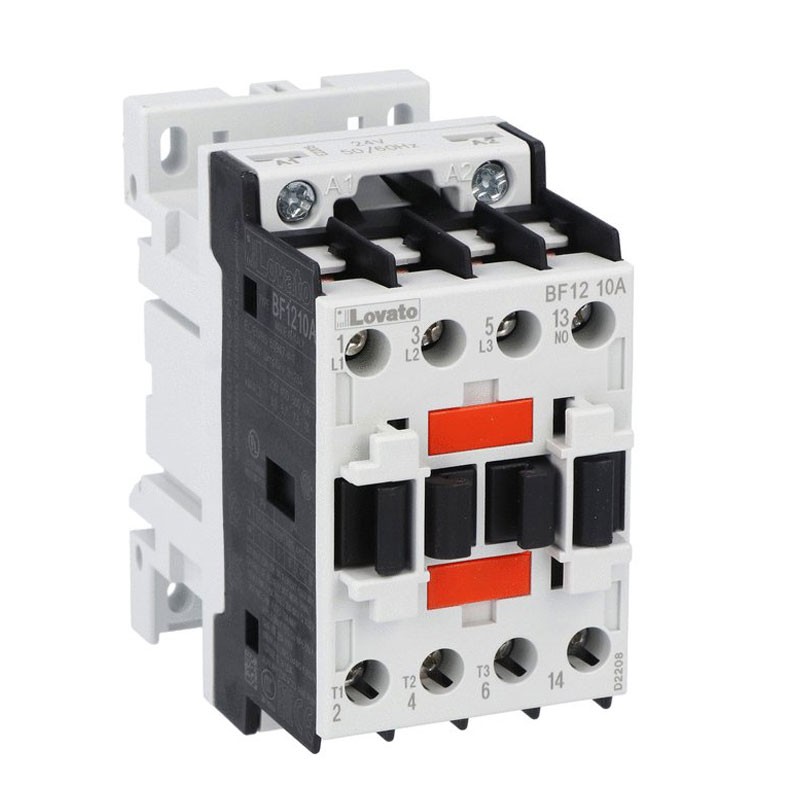

Lovato three-pole 12A coil contactor in AC 400VAC BF1210A400
LOV BF1210A400
8013975160299
Lovato three-pole power contactor BF12, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Operating frequency: min Hz 25 - max Hz 400
- IEC Conventional free air thermal current Ith: UN 28
- Operating operating current: 12A
- Operating AC coil: rated AC voltage at 50/60Hz: 400V
- Number of poles: 3
- Output capacity (rms value): UN 120
- Resistance per pole (average value): mΩ 2.5
- Maximum number of wires that can be connected simultaneously: 2
- Operating position: normal vertical plane - allowable ±30°
- Fixing: screw / 35mm DIN rail
Lovato three-pole 12A coil contactor in AC 400VAC BF1210A400
€28.69
Tax included
€28.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
: 3
Pay in installments with Klarna
Other technical features:
- Weight: 365 grams
- Conductor cross section AWG/kcmil: max 10
- Mechanical life: cycles 20000000
- Electrical life: cycles 2000000
- Performance level B10d according to EN/ISO 13489-1: rated load cycles 2000000, mechanical load: cycles 20000000
- Mirror counted according to IEC / EN 609474-4-1: yes
- EMC compatibility: yes
- Dissipation at maintenance =20°C 50 Hz: 2.5W
- Mechanical operation: cycles/h 3600
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Maximum altitude: m 3000
- Pollution degree 3
Appareil conforme à mes attente, pas de soucis de mise en place tout correspondait
Merci
Data sheet
- Type: Contactors
- Poles: 3P
