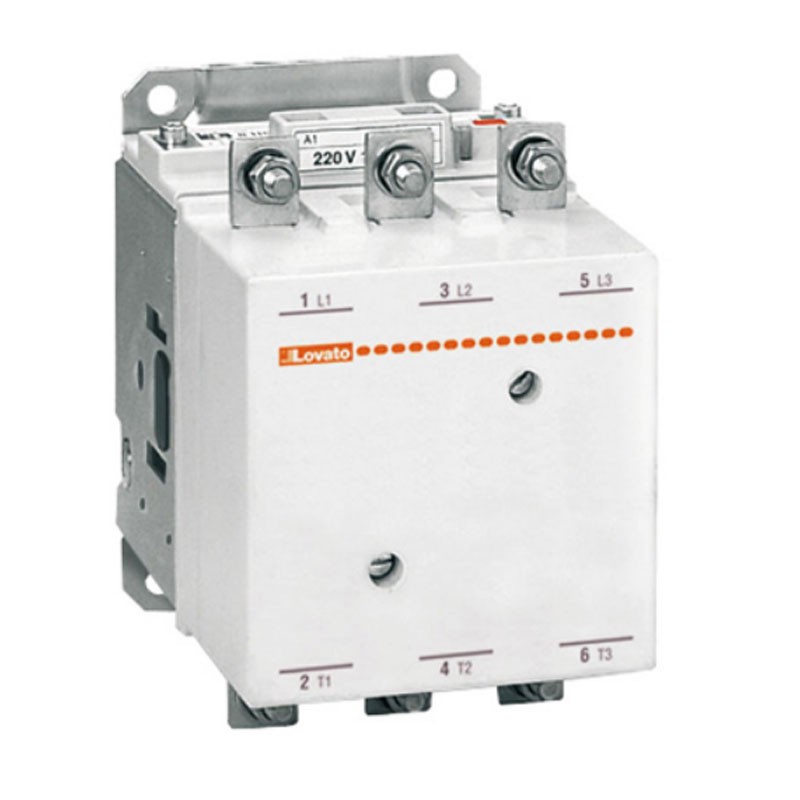

Lovato three-pole contactor 150A coil 220-240Vac-dc 11B14500220
LOV 11B14500220
8013975025864
Lovato three-pole contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: kV 8
- Number of poles: 3
- Operating frequency: min 25 - max 400 Hz
- IEC Conventional free air thermal current Ith: UN 250
- Operating current: UN 150A
- Operating AC coil: Rated AC voltage at 50/60Hz, 60Hz: 220/240V
- Operating DC coil: Rated DC control voltage: 220/240V
- Coil holding dissipation =20°C 50 Hz: 10W
- Allowable short duration current for 10 s (IEC/EN60947-1): UN 1300
Lovato three-pole contactor 150A coil 220-240Vac-dc 11B14500220
€570.66
Tax included
€570.66
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical features:
- Lovato series
- Protective fuse: gG (IEC) UN 250 - aM (IEC) UN 160
- Production capacity (effective value): UN 1500
- Resistance per pole (average value): m 0.3
- Maximum number of wires that can be connected simultaneously: 2
- Protection of power terminals according to IEC/EN 60529: IP00
- Conductor cross-section: AWG/Kcmil max 4/0
- Operating position: normal vertical plane, Allowable ±30°
- Fixing: screw
- Mechanical life: cycles 10000000
- Electrical life: cycles 1100000
- Mirror contact according to IEC/EN 609474-4-1: yes
- EMC compatibility: yes
- Maximum cycle frequency: mechanical operation: cycles/h 2400
- Maximum altitude: m 3000
- Pollution degree: 3
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Weight: 5.380 kg
There are no reviews
Data sheet
- Type: Contactors
