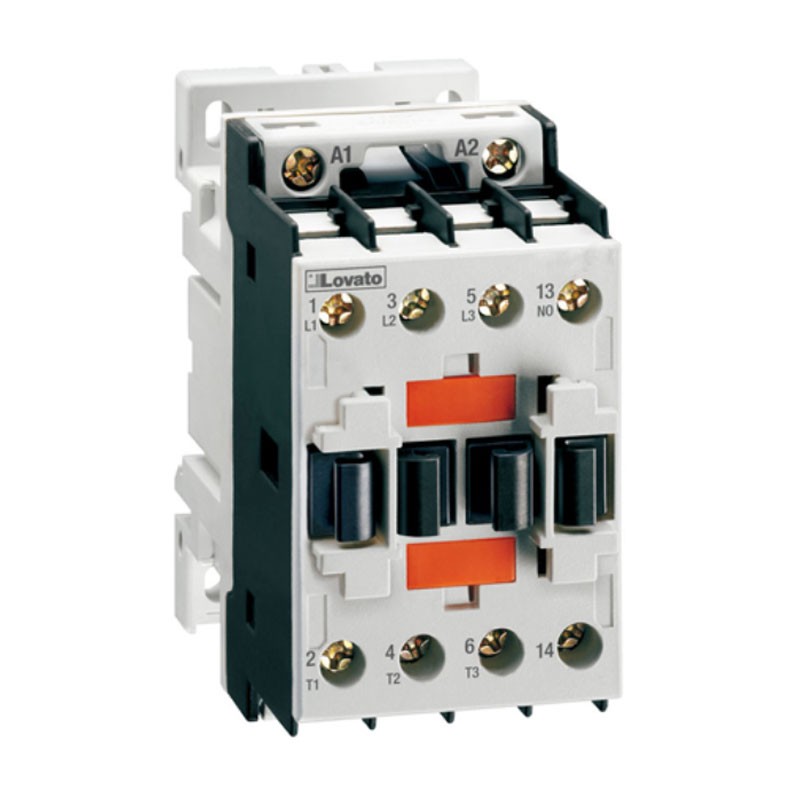

Lovato three-pole contactor 18A 1 aux contact coil 24VAC BF1810A024
LOV BF1810A024
8013975160497
Lovato three-pole power contactor with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Operating frequency: min Hz 25 - max Hz 400
- IEC working current Ie (AC3) = 18A
- Auxiliary contact 1NO
- IEC Conventional free air thermal current Ith: UN 32
- Allowable short duration current for 10 s (IEC/EN60947-1): UN 200
- Number of poles: 3
- Resistance per pole (average value): mΩ 2.5
- Maximum number of wires that can be connected simultaneously: 2
- Protection of power terminals according to IEC/EN 60529: IP20 when wired
- Operating position: normal vertical plane - allowable ±30°
- Operating AC coil: nominal AC voltage at 50/60Hz: 24V
Lovato three-pole contactor 18A 1 aux contact coil 24VAC BF1810A024
€35.23
Tax included
€35.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 99
: 28
Other technical features:
- Mounting: screw-on / 35mm DIN rail
- Dissipation at holding ≤20°C 50Hz: 2.5W
- Weight: 364 grams
- Conductor cross section AWG/kcmil: max 10
- Mechanical life: cycles 20000000
- Electrical life: cycles 1400000
- Performance level B10d according to EN/ISO 13489-1: rated load cycles 1200000, mechanical load cycles 20000000
- Mirror contact according to IEC/EN 609474-4-1: yes
- EMC compatibility: yes
- Maximum cycle frequency: mechanical operation: cycles/h 3600
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Maximum altitude: m 3000
- Pollution degree 3
There are no reviews
Data sheet
- Type:
- Contactors
- Poles:
- 3P
