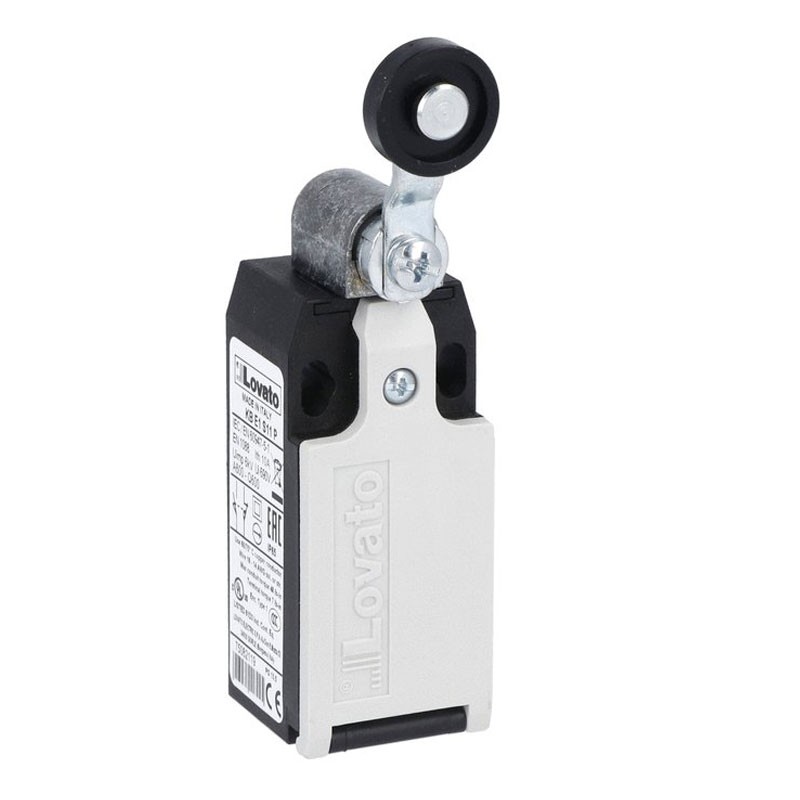

Lovato K-series lever end switch with roller contacts 1NA+1NC KBE1S11
LOV KBE1S11
8013975114209
Lovato K series metal and plastic end switch with the following features:
- Contact type: 1NO+1NC (snap action)
- Thermal current Ith UN 10
- IEC/EN 60947-5-1 designation: A600 Q300
- Rated insulation voltage Ui :690V
- Rated impulse withstand voltage Uimp: kV 6
- Insulation class II
- Fuse short-circuit protection: class A, fast fuse 10 gG/SC
- Switching speed: min SM 0.5, max SM 1.5
- IEC Conventional free air thermal current: Ith UN 10
- Resistance per pole (average value) m? <10
Lovato K-series lever end switch with roller contacts 1NA+1NC KBE1S11
€15.20
Tax included
€15.20
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 52
: 48
Other technical features:
- Lovato series
- Operating head fastening: bayonet locking insert
- Operating torque: Ncm 3 - ozin 4.25
- Cable connection: self-locking screw terminal
- Cable entry: M20 bottom
- Mechanical life cycles <10000000
- Mechanical operation cycles/h: 3600
- Operating temperature: min -25/+70°C
- Storage temperature: -40/+70°C
- IP grade: terminals IP20, body housing IP65
- Pollution degree 3
- Housing material: thermoplastic polymer
- Roller material: plastic
Data sheet
- Type:
- Limit switch
