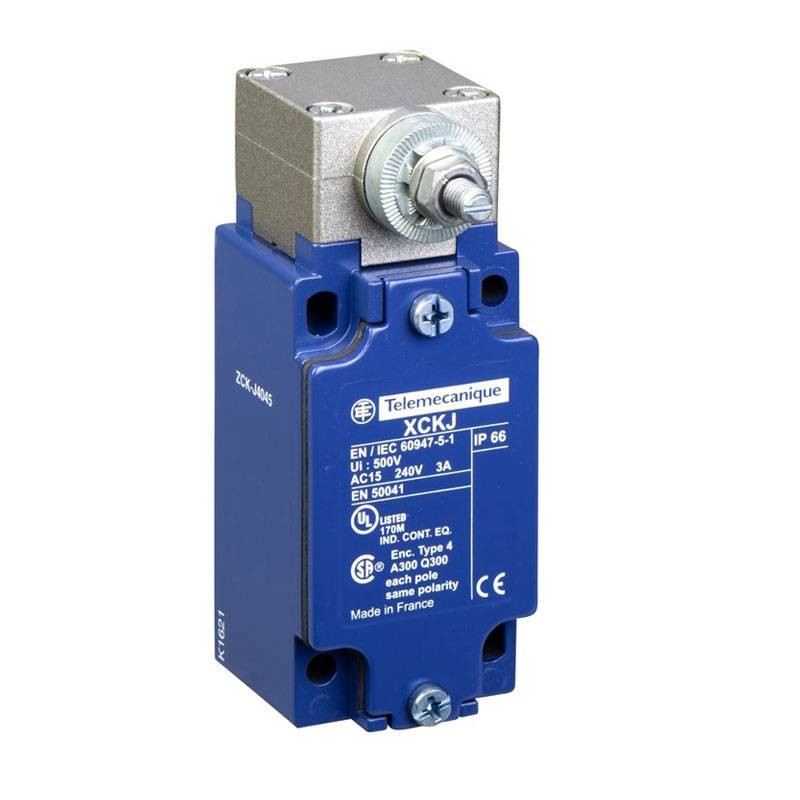

Schneider limit switch body swivel head ZCKJ 2 C/O ZCKJ404
TSI ZCKJ404
3389110646658
Schneider limit switch body swivel head ZCKJ with the following characteristics:
- Body type: Fixed
- Product compatibility: XCKJ
- Body Material: Metal
- Cable entry: 1 tapped entry for 13.5 Pg cable collar
- Number of poles: 2
- Composition and
- Contact type: 2 OC
- Contact Operation: Snap
- Number of phases: 2 - 3 positions
- Contact material: Silver plated contacts
Schneider limit switch body swivel head ZCKJ 2 C/O ZCKJ404
€82.12
Tax included
€82.12
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
Pay in installments with Klarna
The product is part of the special range of XC Standard limit switches. It is a fixed body for limit switches. It features 2 snap-action C/O contacts without positive opening operation and provides selector switch actuation from left and right. It features 2 poles with silver-plated contacts. It has screw terminals for electrical connection and 1 PG 13.5 threaded cable gland inlets.
It is a selector switch with an operating current rating of 3A at 240V AC, 0.27A at 250V AC and a conventional thermal current in enclosure of 10A. It is an IP66 manufactured and rated IK07. The body of the limit switch is made of metal. It is intended for all kinds of industrial machine applications such as packaging, material handling, transportation, processing, food and beverage, service industry, etc. It is compatible with limit switches in the XCKJ range.
IEC ex OsiSwitch standard format limit switches consist of products designed according to EN 50047 and EN 50041, as well as the popular miniature and classic XCM and XCKM ranges of limit switches.
Features:
- Switch actuation: From left and right
- Screw terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
- Min. actuation speed: 0.01 m/min
- Rated operating current: 3 A at 240 V, AC-15, A300 in accordance with EN/IEC 60947-5-1 appendix A - 0.27 A at 250 V, DC-13, Q300 in accordance with EN/IEC 60947-5-1 appendix A
- Conventional thermal current in box: 10A
- Resistance between terminals: 0.25 mOhm complying with IEC 60255-7 category 3
- Rated impulse withstand voltage: 6 kV complying with IEC 60664 - 6 kV complying with IEC 60947-1
- Short-circuit protection: 10 A fuse cartridge, type gG
- IP degree of protection: IP66
- IK degree of protection: IK07
- Operating ambient temperature: -25/+70 °C for Standard environment
- Storage temperature: -40/+70 °C
There are no reviews
Data sheet
- Type: Limit switch
