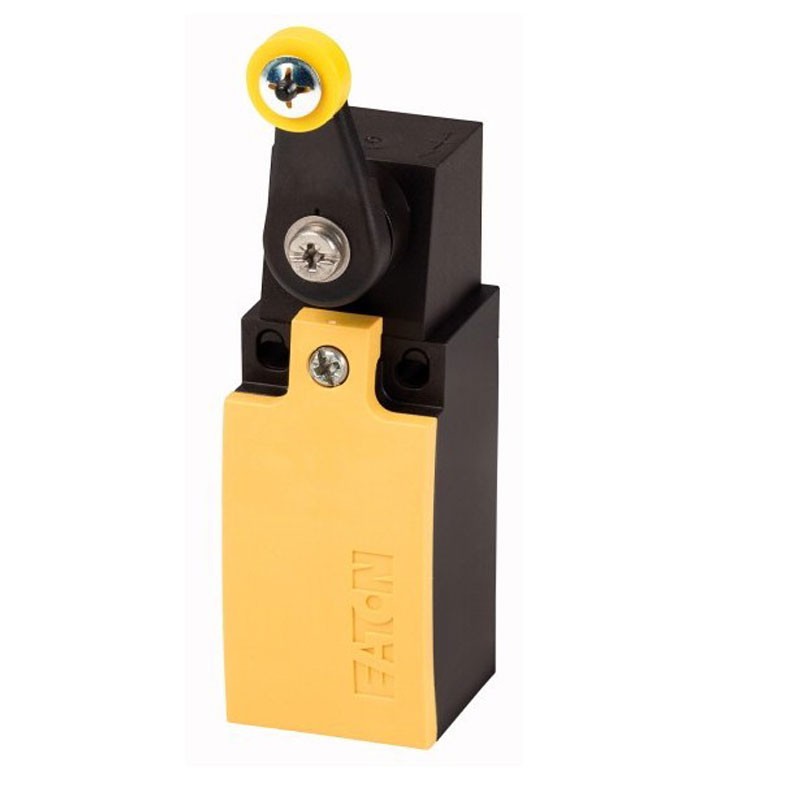

Eaton 1NA+1NC plastic limit switch with lever and roller 106789
EAO 106789
4015081065561
Eaton LS-S11/RL series limit switch/position switch With extended toggle knob, with the following characteristics:
- Rated impulse withstand voltage [Uimp]: 4000V AC
- Rated insulation voltage [Ui]: 400V
- Overvoltage category/pollution degree: III/3
- Contacts: 1 NO contact, 1 NC contact
- Rated operating current: 6 amps
- Mains frequency: max. 400 Hz
- Short-circuit withstand according to IEC/EN 60947-5-1: Max fuse: 6A gG/gL
- Mechanical endurance [Maneuvers] 8 x 106
- Resistance (sinusoidal shock 20 ms) Slow-moving contact: 25 g
- Maneuvering frequency [man/h]: ≦ 6000
- Mechanical: actuation torque 0.2 Nm
- Ambient temperature: -25/+70 °C
- Degree of protection: IP66, IP67
Eaton 1NA+1NC plastic limit switch with lever and roller 106789
€28.80
Tax included
€28.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical features:
- Positive opening (ZW): Yes
- Housing cover: Yellow
- Housing: insulating material
- Connection type: bolt terminal
- Compliance with standards: IEC/EN 60947
- Suitability for climates: humid heat, constant according to IEC 60068-2-78Humid heat, cyclic according to IEC 60068-2-30
- Mounting position: optional
- Connection cross-sections Rigid: 1 x (0.5 - 2.5) mm2
- Connection sections: Flexible with ferrule: 1 x (0.5 - 1.5) mm2
- Reproducibility accuracy: 0.15 mm
- Sensor width: 31 mm
- Sensor diameter: 0 mm
- Sensor height: 61 mm
- Sensor length: 33.5 mm
There are no reviews
Data sheet
- Type: Limit switch
