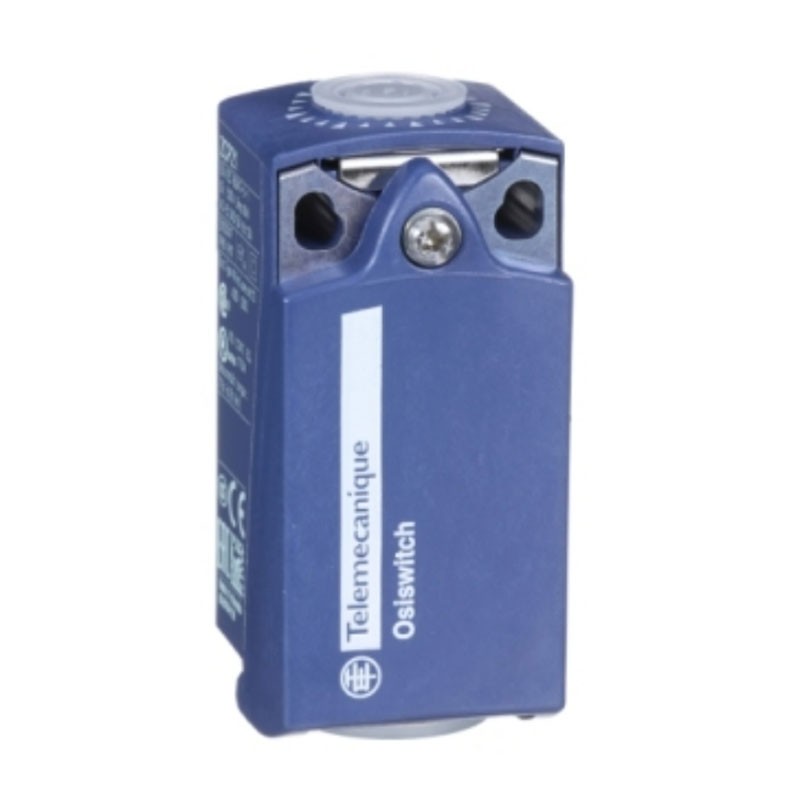

Telemecanique Limit Switch Body ZCP 1NO+1NC ZCP21
TSI ZCP21
3389110180206
Schneider Telemecanique limit switch body, with the following characteristics:
- Rated impulse withstand voltage [Uimp]: 6 kV complying with IEC 60664 - 6 kV complying with IEC 60947-1
- Body material: plastic
- Number of poles: 2
- Contact composition and type: 1 NC + 1 NO
- Contact operation: snap-action
- Electrical connection: Screw terminals, clamping capacity: 1 x 0.34 to 2 x 1.5 mm²
- Contact insulation: Zb
- Contact material: Silver plated contacts
- Positive opening: With
Telemecanique Limit Switch Body ZCP 1NO+1NC ZCP21
€9.91
Tax included
€9.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 45
: 16
It has standard contacts and a plastic body. It is equipped with 1 NO contact + 1 NC snap-action contact.
Other technical features:
- Minimum actuation speed: 0.01 m/s
- Contact code description: B300, AC-15 (Ue = 240 V), Ie = 1.5 A complying with EN/IEC 60947-5-1 appendix A - R300, DC-13 (Ue = 250 V), Ie = 0.1 A complying with EN/IEC 60947-5-1 appendix A
- Short-circuit protection: 10 A fuse cartridge, type gG
- Dimensions: Width 31 mm - Height 65 mm - Depth 30 mm
- Ambient operating temperature: -25/+70 °C
- Storage temperature: -40/+70 °C
- Weight: 0.07 kg
Rated insulation voltage [Ui]:
- 300V in accordance with UL 508
- 500V (pollution degree 3) complying with IEC 60947-1
- 300V complying with CSA C22.2 No 14
Electrical durability:
- 5000000 cycles, DC-13 120 V, 4 W, operating range <60 cycles/m, load factor: 0.5 complies with IEC 60947-5-1 appendix C
- 5000000 cycles, DC-13 24 V, 10 W, operating range <60 cycles/m, load factor: 0.5 complying with IEC 60947-5-1 appendix C
- 5000000 cycles, DC-13 48 V, 7 W, operating range <60 cycles/m, load factor: 0.5 complies with IEC 60947-5-1 appendix C
There are no reviews
Data sheet
- Type:
- Limit switch
