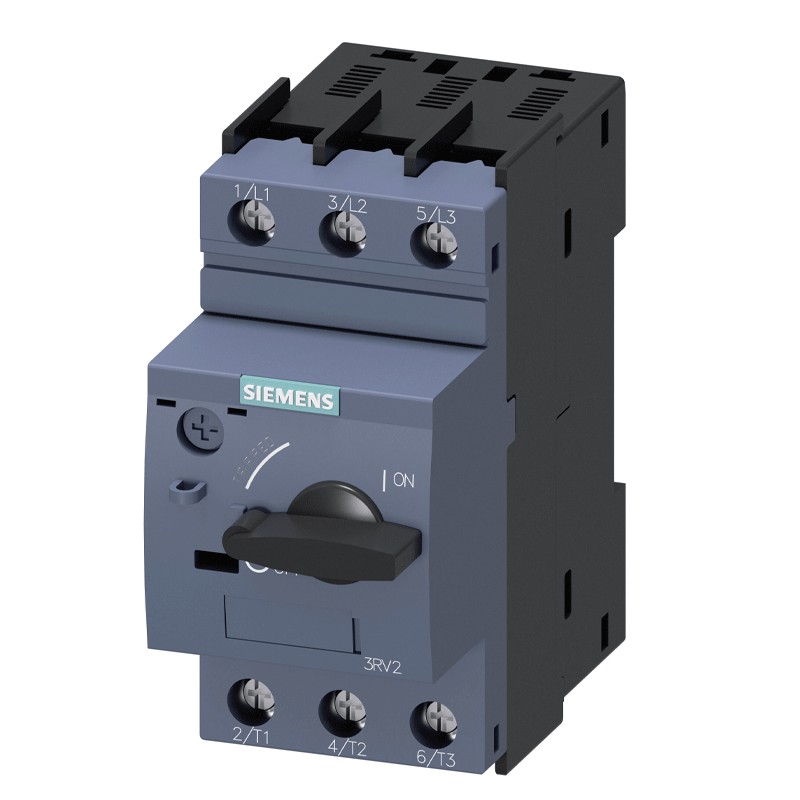

Siemens motor protection switch for S0 series 7-10A 3RV20211JA10
SIE 3RV20211JA10
4011209902909
Siemens motor protection switch, with the following characteristics:
- Insulation voltage with pollution degree 3 with AC nominal value 690 V
- Rated impulse withstand voltage 6 kV
- Rated operational voltage 690 V
- Operating current nominal value 10A
- Adjustable tripping value for current-dependent overload release current 7 ... 10A
- Short-circuit breaking capacity (Ics) at AC 100 kA
- 3 poles
- 2.5 modules
Siemens motor protection switch for S0 series 7-10A 3RV20211JA10
€71.23
Tax included
€71.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 35
: 3
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Siemens series
- Insulation voltage with pollution degree 3 with AC nominal value 690 V
- Rated impulse withstand voltage 6 kV
- Rated operational voltage 690 V
- Frequency of use nominal value 50/60 Hz
- Operating current nominal value 10A
- Adjustable tripping value for current-dependent overload release current 7 ... 10A
- Power loss at nominal current value in AC in warm state 9.25 W - in AC in warm state per pole 3.1W
- Design size S0
- Shock resistance according to IEC 60068-2-27 25g / 11 ms
- Mechanical service life (switching cycles) of main contacts typ 100,000 - of auxiliary contacts typ 100,000
- Installation altitude for altitude above sea level max 2000 m
- Ambient temperature during operation -20/+60 °C - during storage -50/+80 °C - during transport -50/+80 °C
- Temperature compensation -20 ... +60 °C
- Relative humidity during operation 10 ... 95 %
- 3 poles
- 2, 5 modules
- Service short-circuit breaking capacity (Ics) at AC 100 kA
- Degree of protection on front side IP20
- Any mounting position
- Type of mounting screw and snap-on mounting on 35 mm DIN-rail
- Height 97 mm
- Width 45 mm Depth 97 mm
- Depth 97 mm
- Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
- Design of screwdriver shank Diameter 5...6 mm
- Screwdriver tip size Pozidriv 2
There are no reviews
Data sheet
- Type:
- Motor protection
- Modules:
- 2.5
- Poles:
- 3P
- Power:
- 100KA
- Amps:
- 7-10A
