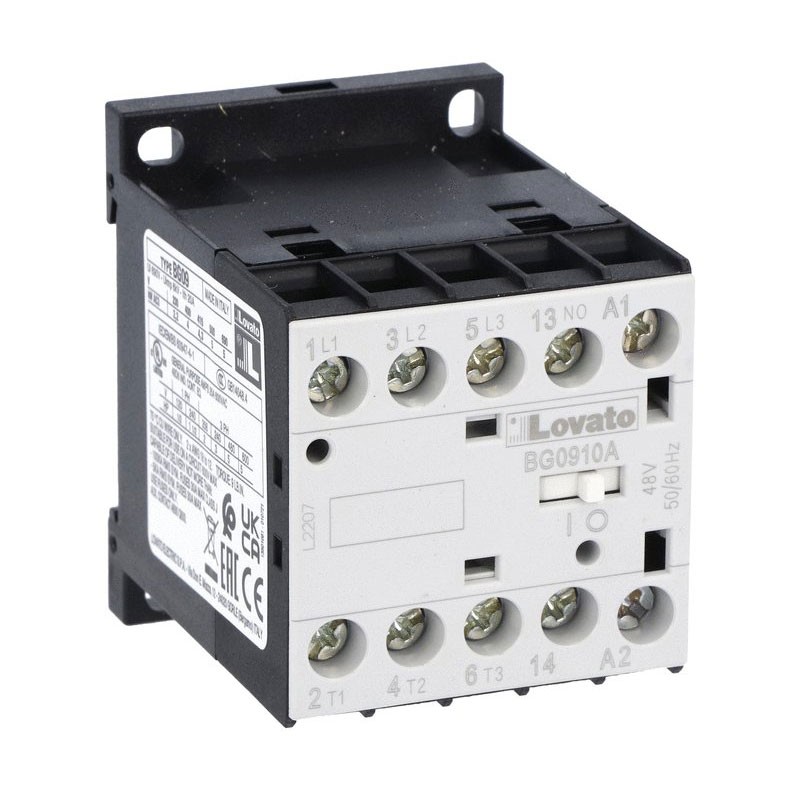

Lovato three-pole mini contactor 9A coil ac-110V 1NA 11BG0910A110
LOV 11BG0910A110
8013975080085
Lovato three-pole mini contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Operating frequency: min Hz 25 - max Hz 400
- IEC Conventional free air thermal current Ith: UN 20
- Allowable short duration current for 10 s (IEC/EN60947-1) UN: 96
- Number of poles: 3
- Protective fuse: gG (IEC) UN 20, aM (IEC) UN 10
- Resistance per pole (average value): mΩ 10
- Maximum number of wires that can be connected simultaneously: 2
- Power terminal protection according to IEC/EN 60529: IP20 when wired
- Operating position: normal vertical plane - Allowable ±30°
- Mounting: screw-on / 35mm DIN rail
- Operating AC coil: Rated AC voltage at 50/60Hz: 110V
Lovato three-pole mini contactor 9A coil ac-110V 1NA 11BG0910A110
€29.13
Tax included
€29.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Other technical features:
- Weight: 180 grams
- Auxiliary contact characteristics: Thermal current Ith UN 10, Designation IEC/EN 60947-5-1 A600 - Q600
- Mechanical life: cycles 20000000
- Electrical life: cycles 500000
- Performance level B10d according to EN/ISO 13489-1: rated load cycles 500000, mechanical load cycles 20000000
- Mirror contact according to IEC/EN 609474-4-1: YES
- EMC compatibility: YES
- Dissipation at holding ≤20°C 50Hz: 0.95W
- Mechanical operation cycles/h: 3600
- Operating temperature: min °C -50 - max °C +70
- Storage temperature: min °C -60 - max °C +80
- Maximum altitude: m 3000
- Pollution degree 3
There are no reviews
Data sheet
- Type: Contactors
