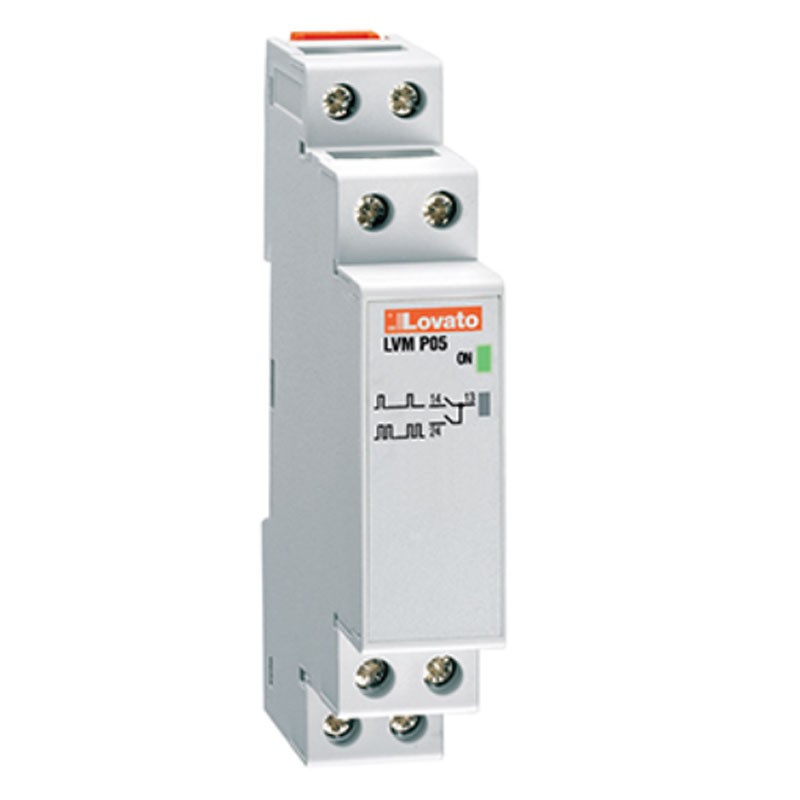

Lovato exchange relay 2 outputs AC-DC power supply 24-48VDC 24-240VAC
LOV LVMP05
8013975147566
Lovato starting priority change relay with the following characteristics:
- Rated insulation voltage Ui: 250V
- Rated impulse withstand voltage Uimp: kV 4
- Withstand voltage at operating frequency: kV: k2
- Operating temperature: min -20/+60°C
- Storage temperature: -30/+80°C
- Modular version
- Type of supply voltage: multi-voltage
- Rated Us voltage: 24/48VDC or 24...240VCA
- Operating voltage range: 0.85...1.1 Us
- Rated frequency: 50/60 Hz
- Max power consumption VA 1.6
- Max power dissipation: 0.9W
- Number of relays: 2
Lovato exchange relay 2 outputs AC-DC power supply 24-48VDC 24-240VAC
€67.42
Tax included
€67.42
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
Pay in installments with Klarna
Other technical features:
- Relay status: normally de-energized, energized on trip
- Contact arrangement: 2 contacts 1NO-SPST
- Rated AC operating voltage (IEC): VAC 250
- IEC Conventional free air thermal current Ith: UN 8
- UL/CSA and IEC/EN 60947-5-1 designation : B300
- Electrical life (at rated load): 105 cycles
- Mechanical life: 30x106 cycles
- Indication: 1 green LED for power on 1 red LED for relay status
- Type of terminals: screw terminals
- Design: modular mounting on DIN rail
- No. of modules: 1
- Material: self-extinguishing polyamide
- Mounting: 35 mm DIN rail (IEC/EN 60715) or by screws via removable clips
- IEC degree of protection: IP40 on front panel / IP20 on terminals
- Dimensions (W x H x D): mm 17.5 x 104.7 x 64.9
- Weight: 90 grams
There are no reviews
Data sheet
- Type: Relays
- Modules: 1
