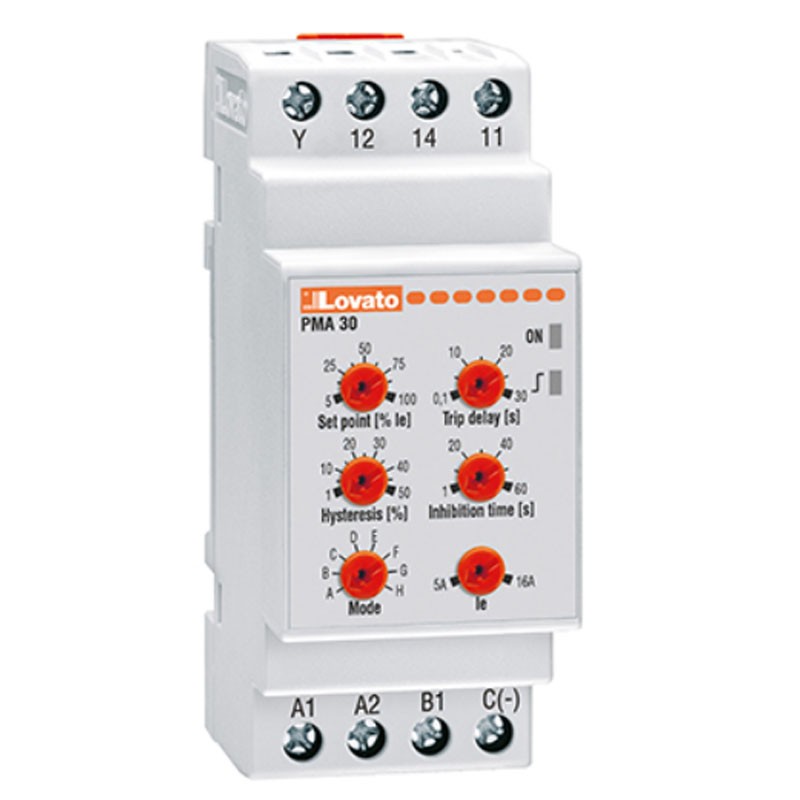

Lovato Single Phase AC-DC 5A or 16A PMA30240 Current Relay
LOV PMA30240
8013975172827
Lovato minimum or maximum AC/DC current monitoring relays for single-phase systems.
Lovato Single Phase AC-DC 5A or 16A PMA30240 Current Relay
€132.25
Tax included
€132.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
Pay in installments with Klarna
Features:
- Lovato Series
- Auxiliary Supply Voltage Us:24...240V AC/DC
- Operating voltage range: 0.85...1.1 Us
- Rated frequency Hz: 50/60 ±5%.
- Max. power consumption VA: 3.2
- Max Power Dissipation: 1.6W
- Rated current (Ie) UN: 5 or 16
- Overload capacity: 5Ie for 1s - 160A for 10ms - Constant 16A
- Connection: Direct or via current transformer
- Current setpoint (% Ie): Maximum 5...100%
- Trip Delay S: 0.1...30
- Hysteresis recovery: 1...50%
- Inhibition time S: 1...60
- Reset type: Automatic or manual
- External input: Reset/Inhibition
- Repeat accuracy: % ±1 (with constant parameters)
- Number of relays: 1
- Relay Status: Normally Energized / De-energized (selectable)
- Contact layout: 1 switching SPDT
- Nominal AC operating voltage (IEC): VAC250
- Maximum switching voltage: VAC 400
- IEC Conventional free air thermal current Ith: UN 8
- UL/CSA and IEC/EN 60947-5-1 designation: B300
- Electrical life (with rated load): 100000 cycles
- Mechanical life cycles: 30000000
- Indication: 1 green on/off LED and 1 red trip LED
- Tightening torque for terminals: max Nm 0.8 - max Ibin 7
- Conductor cross section AWG/Kcmil: min AWG 24 - Maximum AWG 12 - CEI: min mm² 0.2 - Maximum mm² 4
- Rated insulation voltage Ui: 415V
- Rated impulse withstand voltage Uimp: kV 4
- Withstand voltage at operating frequency Kv: 2.5
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C-30 - max °C +80
- Design: (No. of modules) 2
- Material: self-extinguishing polyamide
- Mounting: Modular housing DIN 43880
- IEC degree of protection IP40 front; IP20 at terminals
- Dimensions (W x H x D) mm: 35.8 x 104.7 x 64.9
- Weight: 121 grams
There are no reviews
Data sheet
- Type: Relays
- Modules: 2
