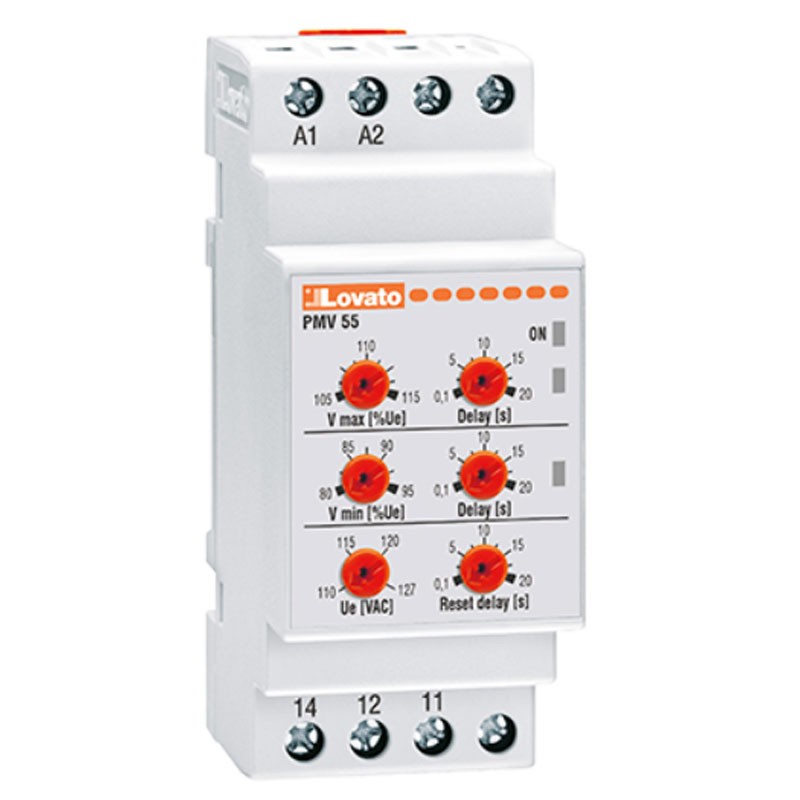

Lovato single-phase voltmetric relay AC-200-240VAC 50-60HZ PMV55A240
LOV PMV55A240
8013975142257
Voltage monitoring relay for Lovato single-phase system, with the following characteristics:
- Auxiliary supply voltage Us: self-powered
- Rated insulation voltage Ui IN 440
- Rated impulse withstand voltage Uimp: kV 6
- Withstand voltage at operating frequency: kV 4
- Rated operating voltage AC (IEC) VAC 250
- Maximum switching voltage VAC 400
- IEC Conventional free air thermal current Ith: UN 8
- Rated frequency Hz: 50/60 ±5%
- Max power consumption: VA 10
- Max power dissipation In: 1.5
- Number of relays: 1
- 2 modules
Lovato single-phase voltmetric relay AC-200-240VAC 50-60HZ PMV55A240
€109.42
Tax included
€109.42
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 1
Pay in installments with Klarna
Other technical features:
- Relay status: normally energized De-energized on trip
- Contact arrangement: 1 switching SPDT
- UL/CSA and IEC/EN 60947-5-1 designation: B300
- Electrical life (with rated load): cycles 100000
- Mechanical life: cycles 30000000
- Indication: 1 green LED for power on and tripping and 2 red LEDs for tripping
- Type of terminals: screw terminals
- Tightening torque for terminals: max Nm 0.8 - max Ibin 7
- Conductor cross section: AWG/Kcmil: min AWG 24 - max AWG 12
- Conductor cross-section: IEC: min mm² 0.2 - Max mm² 4
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C -30 - max °C +80
- Operating voltage range: 0.7...1.2 Ue
- Material: self-extinguishing polyamide
- Mounting: 35 mm DIN rail (IEC/EN 60715)
- IEC degree of protection : IP40 front; IP20 at terminals
- Dimensions (W x H x D): mm35.8 x 104.7 x 64.9
- Weight: 125 grams
There are no reviews
Data sheet
- Type: Relays
- Modules: 2
