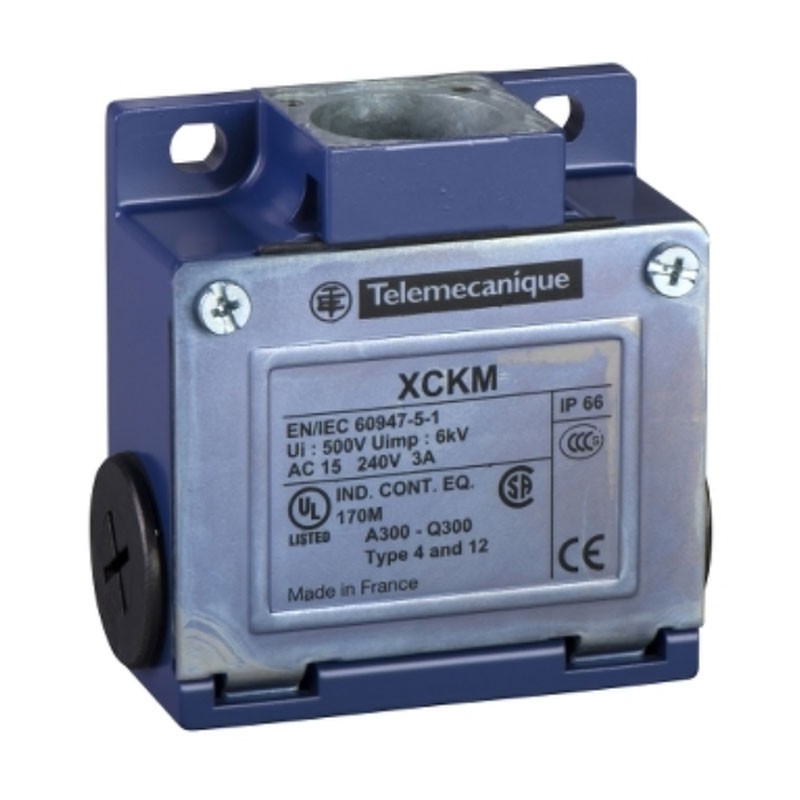

Limit switch body Telemecanique ZCKM 1NO + 1NC ZCKM1
SNR ZCKM1
3389110646627
Telemecanique Schneider ZCKM compact limit switch body, with the following features:
- Body type: fixed
- Body material: metal
- Cable entry: 3 threaded entries for cable gland Pg 11
- Number of poles 2
- Contacts composition and typology 1 NC + 1 NO
- Contacts operation: snap
- Number of phases: 1 position
- Contacts material: silver plated contacts
- Local display: without
Limit switch body Telemecanique ZCKM 1NO + 1NC ZCKM1
€25.46
Tax included
€25.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Electrical life:
- 5000000 cycles, DC-13 120 V, 7 W, operating range <60 cycles/m, load factor: 0.5 in accordance with IEC 60947-5-1 appendix C
- 5000000 cycles, DC-13 24 V, 13 W, operating range <60 cycles/m, load factor: 0.5 according to IEC 60947-5-1 appendix C
- 5000000 cycles, DC-13 48 V, 9 W, duty cycle <60 cycles/m, load factor: 0.5 acc. to IEC 60947-5-1 appendix C
Rated insulation voltage [Ui]:
- 500V (pollution degree 3) in accordance with IEC 60947-1 for contact blocking
- 300V according to CSA C22.2 No 14 for contact block
- 300V according to UL 508 for contact block
Rated impulse withstand voltage [Uimp]:
- 6 kV according to IEC 60664
- 6 kV according to IEC 60947-1
Other features:
- Electrical connection: screw terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
- With positive opening
- Min. actuation speed: 0.01 m/min
- Conventional thermal current in box [Ithe] 10A
- Resistance between terminals 0.25 mOhm according to IEC 60255-7 category 3
- Short-circuit protection: 10A fuse cartridge, type Gg
- Description of ISO Terminals #1: (21-22)NC - (13-14)NO
- IP degree of protection: IP66
- Degree of protection IK: IK05
- Operating ambient temperature: -25/+70 °C for standard environment
- Storage temperature: -40/+70 °C
- Environmental characteristics: standard environment
There are no reviews
Data sheet
- Type: Limit switch
