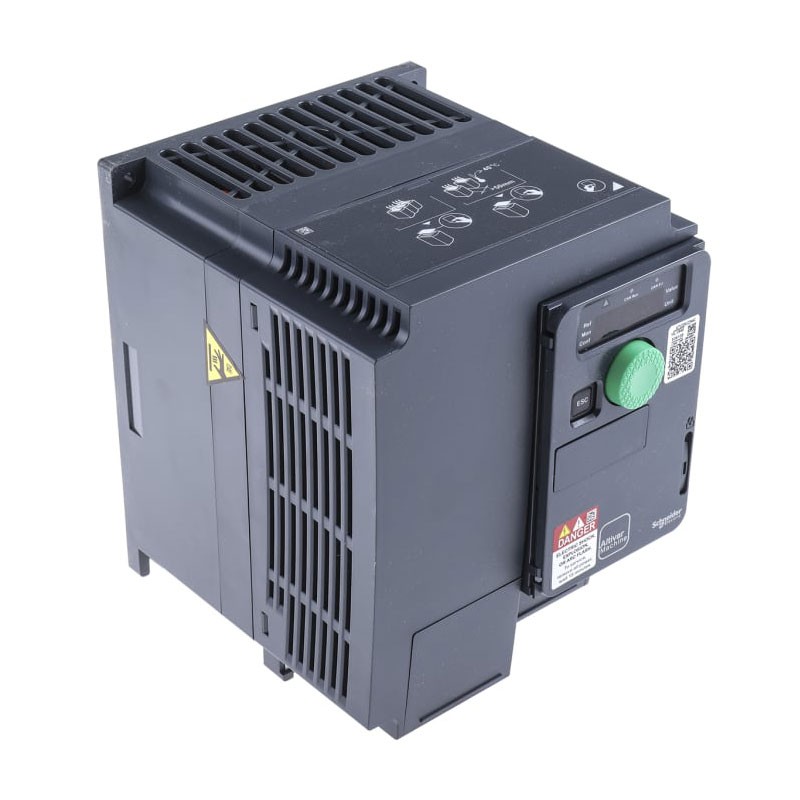

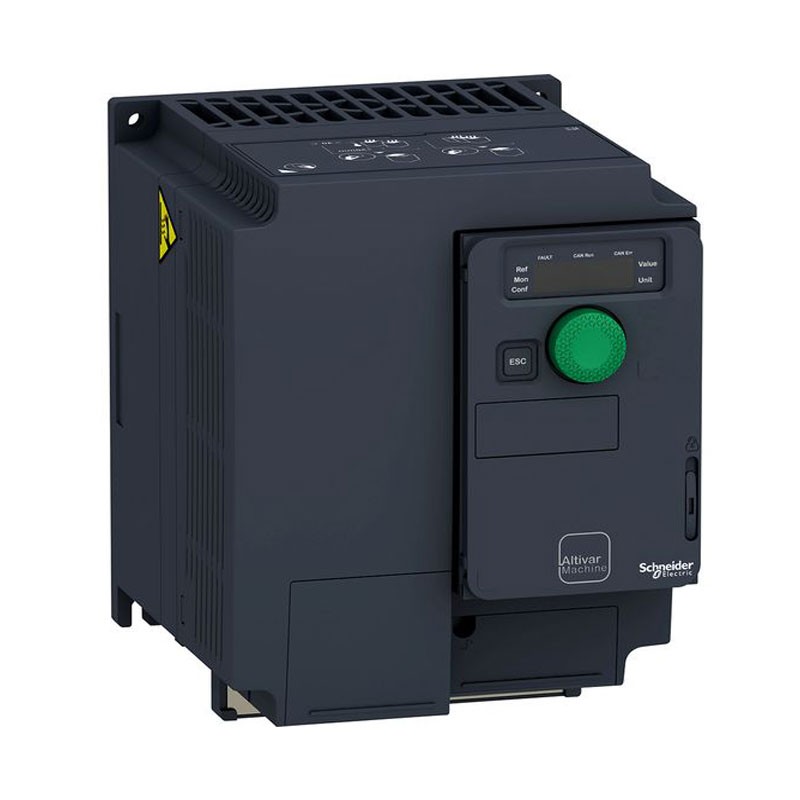

Inverter Telemecanique ATV320 2,2KW 380/500V Three phase ATV320U22N4C
SNR ATV320U22N4C
3606480966767
Inverter Telemecanique Schneider ATV320 2,2KW 500V Three-phase:
- Compact,
- For asynchronous and synchronous motors,
- Class C2 integrated EMC filter,
- Degree of protection IP20,
- Fan Cooling,
- Voltage 380...500 V,
- Frequency 50...60 Hz,
- Sensorless vector control
- CANopen and Modbus compatibility, 1 RJ45 for Modbus/CANopen on control terminal and 2 RS 485 cables for Modbus, RTU for Modbus.
Inverter Telemecanique ATV320 2,2KW 380/500V Three phase ATV320U22N4C
€523.99
Tax included
€523.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
Schneider Electrics ATV320U22N4C inverter is a three-phase variable speed asynchronous motor unit. It has a rated power of 2.2 kW and a supply voltage of 400 VAC. The dimensions of the variable frequency inverter are: length 140mm, width 158mm and overall depth 184mm.
Altivar ATV320 Series
Altivar Machine ATV320 variable speed drives are simple yet advanced machines. They are designed for original equipment manufacturers and meet the requirements of simple and advanced applications for three-phase synchronous and asynchronous motors, from 0.18 to 15 kW. This type of VFD is the perfect solution to improve the efficiency of machines in a wide range of applications.
Advantages:
- Advanced automation functions through simple open-loop motor control for asynchronous and synchronous motors - also applies to low-speed dynamic precision for start/stop applications
- Advanced connectivity to automation frameworks such as EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet
- Features such as ATVLogic that bring versatility and application expertise to machines
- Altivar Machine ATV320 variable speed drives continue the tradition of their predecessors in terms of robustness and reliability
- To optimize machine uptime, especially when production changes, safety diagnostics and operation, system integration and network configuration can be achieved in a timely manner
- The ATV320 is designed for easy and cost-effective installation for a number of machine configurations and for placement indoors in locations such as cabinets and machine frames
- With a rugged, durable and reliable design and also IEC 60721-3-3 Class 3C3 coated printed circuit boards, these VFDs can extend machine availability in harsh conditions
- This series has several mounting options, depending on the machine (vertical, horizontal, with the option to offset the control module when the unit is mounted sideways, in a side-by-side arrangement)
- Comprehensive integrated safety range for machines with additional safety torque off, four complete safety monitoring functions to simplify certification and compliance of the machine with the Machinery Directive 2006/42/EC
- Easy-to-mount communication boards in cassette format.
Where is a Variable Frequency Drive (VFD) normally used?
- The ATV320 series can be used in simple and/or advanced machines
- This series can be used for mechanical and electrical installations
- Material handling - small conveyor belts
- Packaging - labeling and small bagging machines
- Fan machines - for air or smoke extraction, plastic film machines, ovens and boilers
- Simple consumer machines such as access barriers and rotating billboards
- Health sector, such as medical beds and treadmills
- They are also used in the food and beverage industry in machines such as grinders, mixers and kneaders
- These types of inverter units can also be a great solution for companies that require lifting goods or material from one point to another.
Technical Specifications:
- Rated power 2.2 kW Phase 3
- Supply voltage 400 V AC
- Nominal current 6.6 A, 8.7 A
- Output frequency 0.1 → 599Hz
- For use with Asynchronous Motors, Synchronous Motors ATV320 Series IP20 Grade
- Communication type Fieldbus Profibus
- Drive type Variable frequency
- Control panel Yes
- Filter included Yes
- Overall width 158mm
- Special features Advanced automation functionality, even at low speeds and dynamic accuracy for start/stop application, Combined open loop motor control, Variable speed drive improves machine efficiency
- Overall length 140mm
- Mounting type DIN rail
- Function Motor control Standard met CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, UL
- Overall depth 184mm
