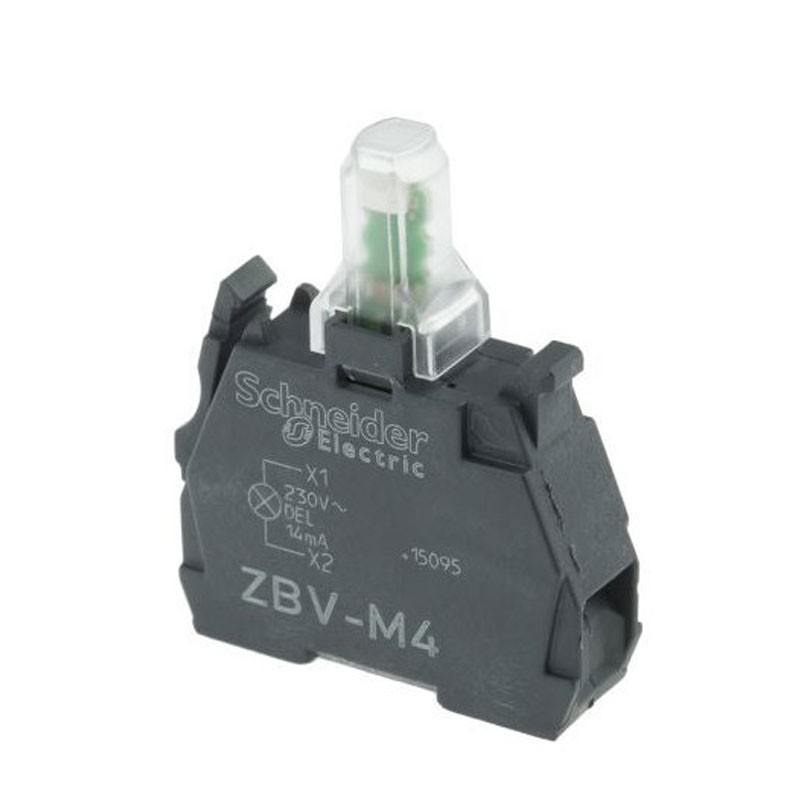

Telemecanique red LED light element 230V ZBVM4
SNR ZBVM4
3389110090079
Telemecanique Schneider light element, with the following characteristics:
- Resistance to fast transients: 2 kV according to IEC 61000-4-4
- Resistance to electromagnetic fields: 10 V/m according to IEC 61000-4-3
- Resistance to electrostatic discharge: 6 kV on contact (on metal parts) in accordance with IEC 61000-4-2, 8 kV in free air (in insulating parts) in accordance with IEC 61000-4-2
- Electromagnetic emission: Class B according to IEC 55011
- Rated supply voltage [Us]: 230/240V
- Signaling type: fixed
- Light source: integrated LED
Telemecanique red LED light element 230V ZBVM4
€13.46
Tax included
€13.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Connections - terminals
- Screw terminals, <= 2 x 1.5 mm² with cable end according to EN 60947-1
- Screw terminals, > = 1 x 0.22 mm² without cable end according to EN 60947-1
Head shape (screw)
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No. 1 screwdriver
- Slot compatible with Ø 4 mm screwdriver plate
- Slot compatible with Ø 5.5 mm screwdriver plate
Other technical features:
- Lamp socket: LED
- Power supply luminous element: direct
- Light source color: red
- Rated supply voltage [Us]:230/240V AC at 50/60 Hz
- Weight: 0.017 kg
- Tightening torque: 0.8...1.2 Nm according to EN 60947-1
- Supply voltage limits: 195...264 V AC
- Power consumption 14 mA
- Service life 100,000 hours at nominal voltage and 25°C
- Overvoltage resistance: 1 kV per IEC 61000-4-5
- Mounting of contact or light elements: direct front mounting on push button
- TH protection treatment
- Storage temperature -40/+70 °C
- Ambient operating temperature -40/+70 °C
- IP rating: IP20 per IEC 60529
There are no reviews
Data sheet
- Type: Lamp holder
