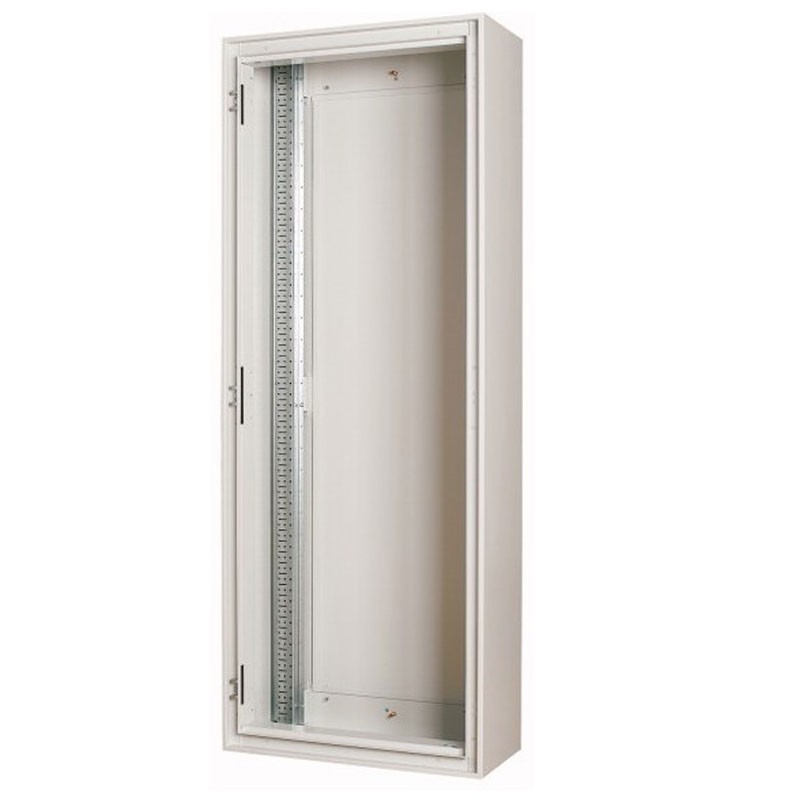

Eaton BPM-O-600/10-F Wall-mounted Framework Structure 174359
EAO 174359
4015081708215
Eaton BPM-O-600/10-F distribution frame/box, with the following characteristics:
- Fixing type: In enclosure
- Equipment: without door
- Material: sheet steel
- Place of installation: moisture-proof
- Degree of protection IP55
- Surface finish: powder coated
- Dimensions in mm: HxWxD=1060x600x270mm
- Color: light gray (RAL 7035)
- Degree of impact resistance: IK10
Eaton BPM-O-600/10-F Wall-mounted Framework Structure 174359
€275.95
Tax included
€275.95
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna
Other technical features:
- 4 kV impulse withstand voltage
- Dielectric strength at grid frequency: Ui = 440V AC
- Type of mounting: wall-mounted
- Number of rows: 6
- Number of DIN modules: 24
- Ground terminal block: no
- Neutral terminal block: no
- With mounting plate no
- Without lock
- Door passage signal: no
There are no reviews
Data sheet
- Type: Panels
