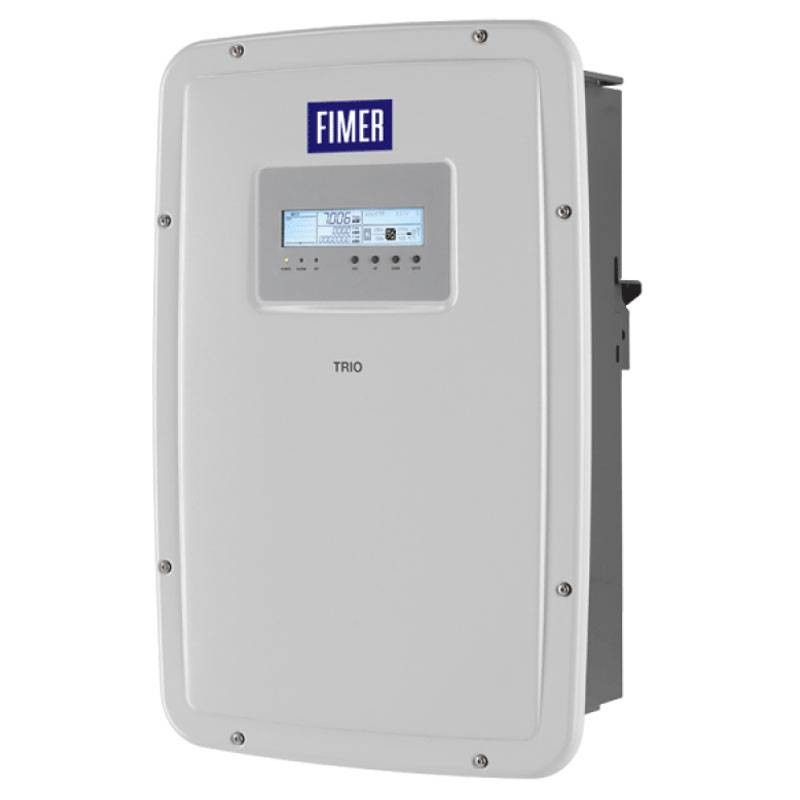

Fimer TRIO 8.5kW Photovoltaic Inverter TL OUTD S 400 3M99990S005A

Brand: Fimer

Cod: 06R 3M99990S005A EAN:

Fimer Photovoltaic Inverter model TRIO TL OUTD S 400:

€1,637.30 Tax included

€1,637.30

€1,637.30
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Out of stock

Incoming

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Technology level for commercial applications applied on a residential scale:

The typology used in TRIO inverters for commercial applications has been redesigned to ensure high conversion efficiency for a wide input voltage range on the TRIO-5.8/7.5/8.5 as well. Integratable data loggers and optional smart grid features, remote firmware upgrade, and sliding front panel make these devices easy to install and upgrade. In short, they are the result of engineering for commercial applications applied on a residential scale.

Feature-rich inverter:

Dual MPPT (TRIO-7.5/8.5 models) allows maximum flexibility in installation for optimal energy production. New generation inverters can integrate both power control and monitoring functions, as well as inputs for environmental sensors, without the need for additional external components. Compact optional expansion cards, Ethernet or Wi-Fi, integrate data logging capabilities for monitoring plant parameters both locally (via integrated webserver) and remotely (on the AV Plant Portfolio Manager portal), taking advantage of a LAN connection. The naturally cooled, IP65-rated mechanical design for outdoor applications not only ensures maximum reliability but also presents a clever installation solution, with a sliding movement of the front panel that allows access to the Connection and Configuration Area without the complete removal of the cover.

Key Features:

DC/AC conversion unit with three-phase bridge topology
Transformerless topology
Dual input sections with independent MPPT tracking on TRIO-7.5/8.5, to enable optimal energy harvesting even when strings are oriented in different directions
Flat efficiency curves to ensure high efficiency at all output levels, ensuring consistent and stable performance over the entire input voltage and output power range
Wide input voltage range
Remote inverter upgrade
Reactive power management
DC disconnect version (model S)
Natural convection cooling for maximum reliability
Outdoor enclosure for use in any environmental conditions (IP65)
Sliding front panel openings for easy installation and maintenance operations

Features:

Input:

Maximum absolute DC input voltage 1000V
Input DC trigger voltage (Vstart) 350V (adj. 200...500V)
Input DC voltage operating range (Vdcmin...Vdcmax) 0.7 x Vstart950 V (min 200 V)
Rated DC input voltage (Vdcr) 620 V
Rated DC input power 8700 W
Number of independent MPPTs 2
Maximum DC input power for each MPPT 4800W
DC voltage range with configuration of MPPTs in parallel to P 320/800V
DC power limitation with MPPT configuration in parallel Derating from max to zero 800 V?VMPPT?950 V
DC power limitation for each MPPT with configuration of independent MPPTs at Pacr, example of maximum unbalancing 4800 W (320 V?VMPPT?800 V) other channel: Pdcr-4800 W (215 V?VMPPT?800 V)
Maximum DC input current for each MPPT 30.0 A / 15.0 A
Maximum input short-circuit current for each MPPT 20A
Number of DC input connection pairs for each MPPT 2 (-S version)
DC connection type Quick plug-in PV connector1) on -S version

Input protection:

Reverse polarity protection Yes, from current limited source.
Input overvoltage protection for each MPPT-varisor Yes, 4
Insulation control In accordance with local regulations
DC disconnect characteristics for each MPPT (DC disconnect version) 16 A /1000 V, 25 A / 800 V

Output:

AC connection type to the grid Three-phase3 wires 3W+PE or 4W+PE
Rated AC power output 8500 W
Maximum apparent power 8500 VA
Rated AC output voltage 400V
Output AC voltage range 320...480V
Maximum AC output current 14.5A
Contribution to short circuit current 16.5A
Rated output frequency 50 Hz / 60 Hz
Output frequency range 47...53 Hz / 5763 Hz
Rated power factor and adjustability range> 0.995, adj. ± 0.9 with Pacr =7.65 kW, ± 0.8 with max 8.5 kVA
Total current harmonic distortion < 2%
Type of AC connections Screw terminal block, M32 cable gland

Output protection:

Operating performance:

Environmental characteristics:

Physical characteristics:

IP65 environmental protection rating
Cooling system Natural
Dimensions (H x W x D) 641mm x 429 mm x 220 mm/ 25.2 x 16.9 x 8.7 (855 mm x 429 mm x 237 mm/ 33.7 x 16.9 x 9.3 with lid open)
Weight 28.0 kg / 61.7 lbs
Mounting system Wall brackets

Safety:

Insulation level No transformer
Certifications CE (50 Hz only), RCM
EMC and safety standards EN 62109-1, EN 62109-2, AS/NZS3100, EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
Grid connection standards (check availability through sales channel) IEC 0-21, IEC 0-16, DIN V VDE V 0126-1-1, VDE-AR-N 4105, G83/2, G59/3, RD 1699, RD 413, NRS-097- 2-1, AS 4777, IEC 61727, IEC 62116, VFR 2014
