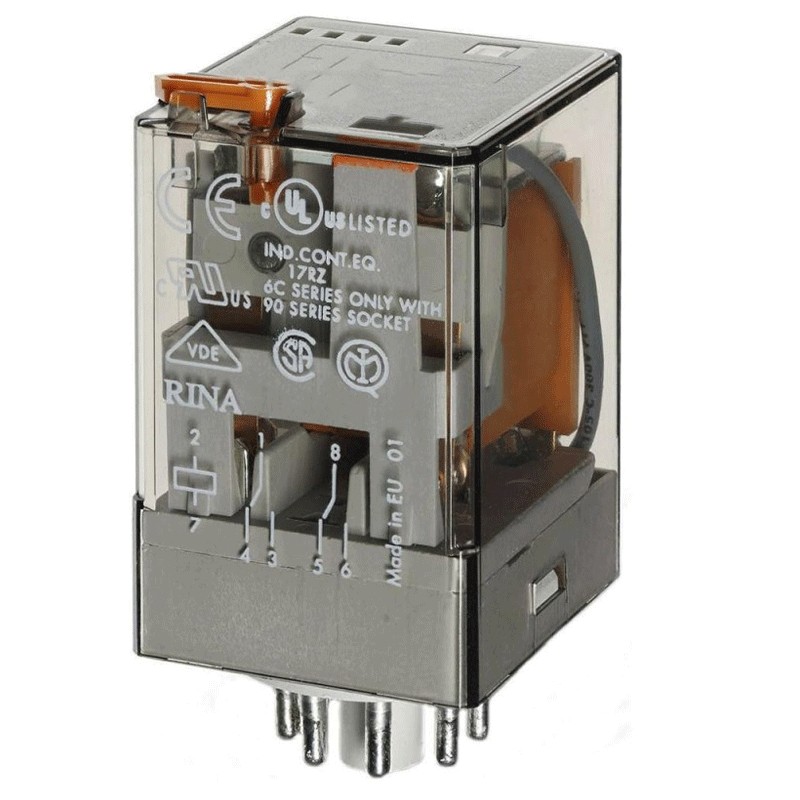

Octal Finder plug-in relay 2 switches 10A 230VAC 601282300040
FIN 601282300040
8012823044125
Octal Finder Industrial Relay Type 60.12, with the following characteristics:
- Supply voltage (50/60 Hz) 230V AC
- Nominal AC/DC power VA (50 Hz) 2.2/1.3W
- Rated/Max instantaneous current 10/20 A
- Nominal load in AC1:2500 VA
- Nominal load in AC15 (230 V AC) 500VA
- Contact configuration: 2 exchanges 10A
Plug-in mounting on compatible 90 series socket: 9020SMA.
Octal Finder plug-in relay 2 switches 10A 230VAC 601282300040
€14.38
Tax included
€14.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 90
: 20
Pay in installments with Klarna
Frequently bought together
Features:
- Finder Series
- Single-phase motor capacity (230V AC) 0.37kW
- Breaking capacity in DC1: 30/110/220V: 10/0.4/0.15
- Minimum switching load mW (V/mA) 500 (10/5)
- Standard contact material AgNi
- Operating range AC/DC 0.8 UN / 0.5 UN
- Holding voltage AC/DC 0.8 UN / 0.5 UN
- Release voltage AC/DC 0.2 UN / 0.1 UN
- Electrical endurance at rated load in AC1 200 - 10 cycles
- Mechanical endurance AC/DC 20 - 106 / 50 - 106 cycles
- Switching time: excitation/de-excitation 11/4 ms
- Insulation between coil and contacts (1.2/50 μs) 4 kV
- Dielectric strength between open contacts 1000V AC
- Ambient temperature: -40...+70°C
- Protection category RT I
Advantages:
- Cadmium-free contacts (preferred version)
- AC or DC coil
- UL Listing (relay/coil jumper)
- Contact material options
- Lockable test button and mechanical indicator (preferred version)
- 90 Series Sockets
- EMC Protection and Signaling Modules
- 86 Series Timer Modules
- European Patent
There are no reviews
Data sheet
- Type: Relays
