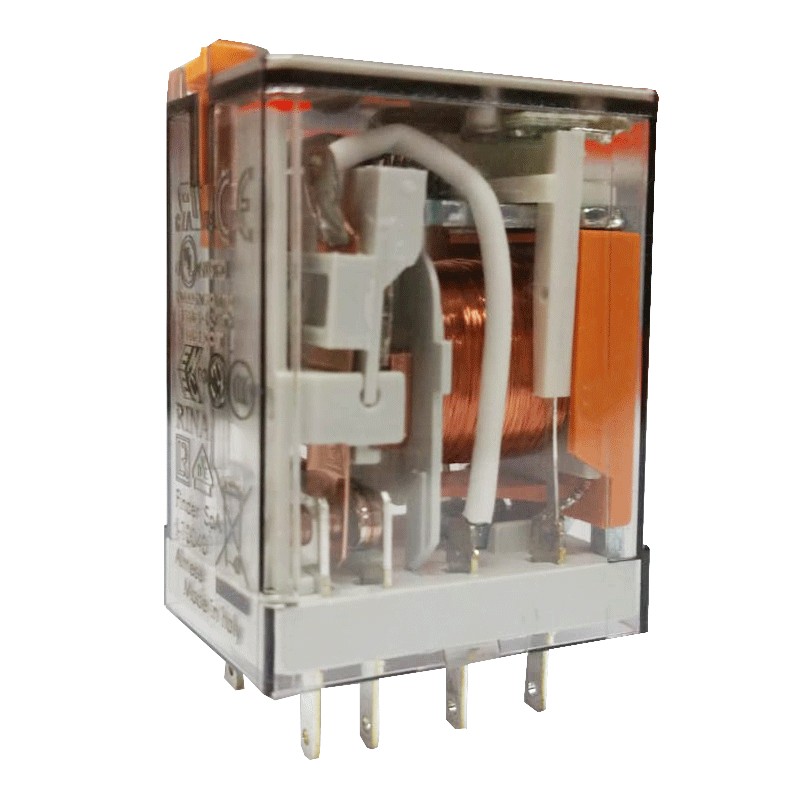

Relay Finder socket 2 switches 10A 12VAC 553280120054
FIN 553280120054
8012823187112
Finder Relay Type 55.32, general purpose, with the following characteristics:
- Supply voltage (50/60 Hz) AC 12V, DC 12V
- Rated power AC/DC VA (50 Hz) 1.5/1W
- Rated/Max instantaneous current 10/20 A
- Rated load in AC1:2500 VA
- Nominal load in AC15 (230 V AC) 500VA
- 2 switches 10A
Plug-in mounting on 94 series compatible sockets (2 exchanges): 9402SMA, 9404SMA, 9482SMA.
Relay Finder socket 2 switches 10A 12VAC 553280120054
€9.63
Tax included
€9.63
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 159
: 5
Pay in installments with Klarna
Frequently bought together
Features:
- Finder Series
- Single-phase motor capacity (230 V AC) 0.37kW
- DC1 breaking capacity: 30/110/220V 10/0.5/0.25A
- Minimum switching load mW (V/mA) 300 (5/5)
- Standard contact material AgNi
- Operating range AC/DC (0.8...1.1)UN
- Holding voltage AC/DC 0.8 UN / 0.5 UN
- Release voltage AC/DC 0.2 UN / 0.1 UN
- Electrical endurance at rated load AC1 200 - 10 cycles
- Mechanical endurance AC/DC 20 - 106 / 50 - 106 cycles
- Switching time: excitation/de-excitation 10/5 ms
- Insulation between coil and contacts (1.2/50 μs) 4 kV
- Dielectric strength between open contacts 1000V AC
- Ambient temperature: -40...+85°C
- Protection category RT I
Advantages:
- AC or DC coil
- Lockable test button and mechanical indicator standard on 2- and 4-contact types
- Variant with LED and integrated protection module
- Socket series 94 for PCB, solder or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals
- Series 99 EMC Signaling and Protection Modules and Type 86.30 Timing Modules
- Alternative mounting adapters available
- UL Listing (Relay/Socket jumper)
- Cadmium-free contacts
- Contact Material Options
- European Patent
Data sheet
- Type: Relays
