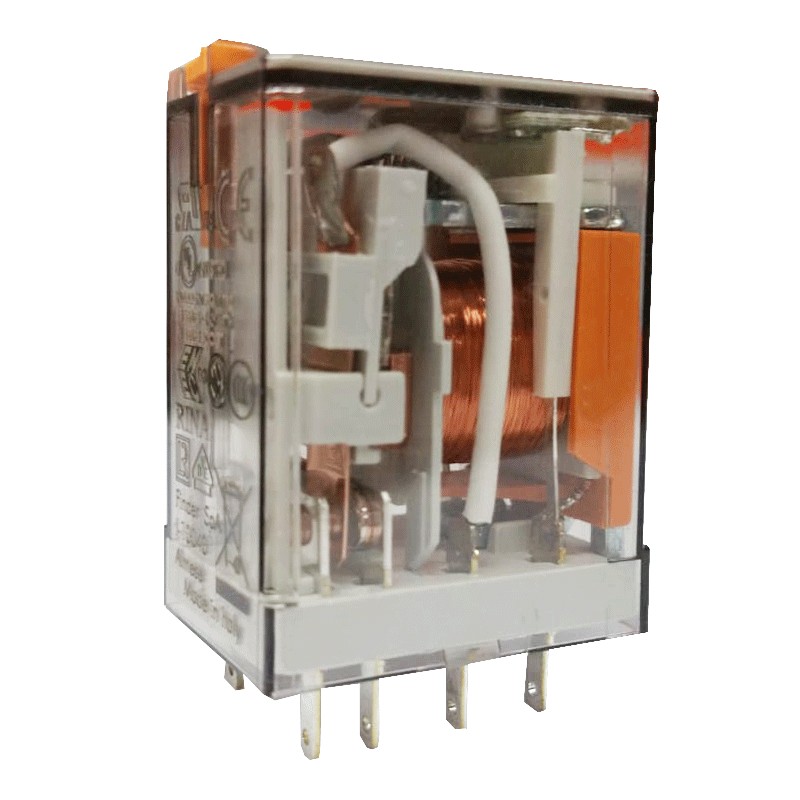

Relay Finder socket 4 switches 7A 24VAC 553480240054
FIN 553480240054
8012823081113
Finder Industrial Relay Type 55.34, with the following features:
- Supply voltage (50/60 Hz) AC 24V, DC 24V
- Rated power AC/DC VA (50 Hz) 1.5/1W
- Rated/Max instantaneous current 7/15 A
- Rated load in AC1:1750 VA
- Rated load in AC15 (230 V AC) 350VA
- 4 exchanges 7A
Plug-in mounting on 94 series compatible sockets (4 exchanges): 9474SMA, 9404SMA.
Relay Finder socket 4 switches 7A 24VAC 553480240054
€10.25
Tax included
€10.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 398
: 27
Pay in installments with Klarna
Frequently bought together
Features:
- Finder Series
- Single-phase motor capacity (230 V AC) 0.125kW
- DC1 breaking capacity: 30/110/220V 7/0.5/0.25A
- Minimum switching load mW (V/mA) 300 (5/5)
- Standard contact material AgNi
- Operating range AC/DC (0.8...1.1)UN
- Holding voltage AC/DC 0.8 UN / 0.5 UN
- Release voltage AC/DC 0.2 UN / 0.1 UN
- Electrical endurance at rated load in AC1 150 - 103 cycles
- Mechanical endurance AC/DC 20 - 106 / 50 - 106 cycles
- Switching time: on/off 9/5 ms
- Insulation between coil and contacts (1.2/50 μs) 4 kV
- Dielectric strength between open contacts 1000V AC
- Ambient temperature: -40...+85°C
- Protection category RT I
Advantages:
- AC or DC coil
- Lockable test button and standard mechanical indicator
- Variant with LED and integrated protection module
- Sockets Series 94 for PCB, solder or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals
- Series 99 EMC Signaling and Protection Modules and Type 86.30 Timing Modules
- Alternative mounting adapters available
- UL Listing (Relay/Socket jumper)
- Cadmium-free contacts
- Contact Material Options
- European Patent
There are no reviews
Data sheet
- Type: Relays
