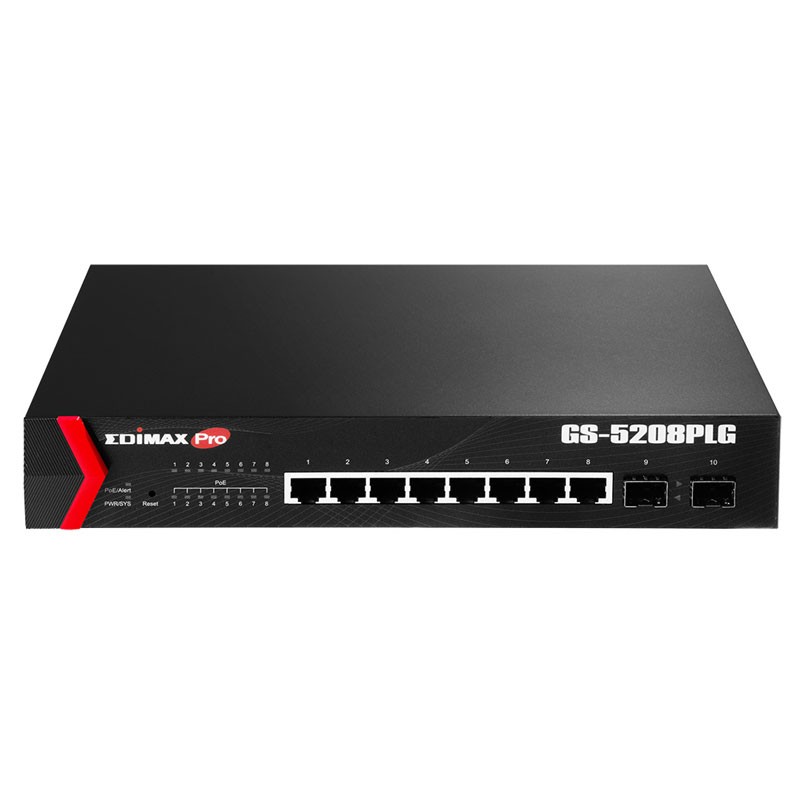

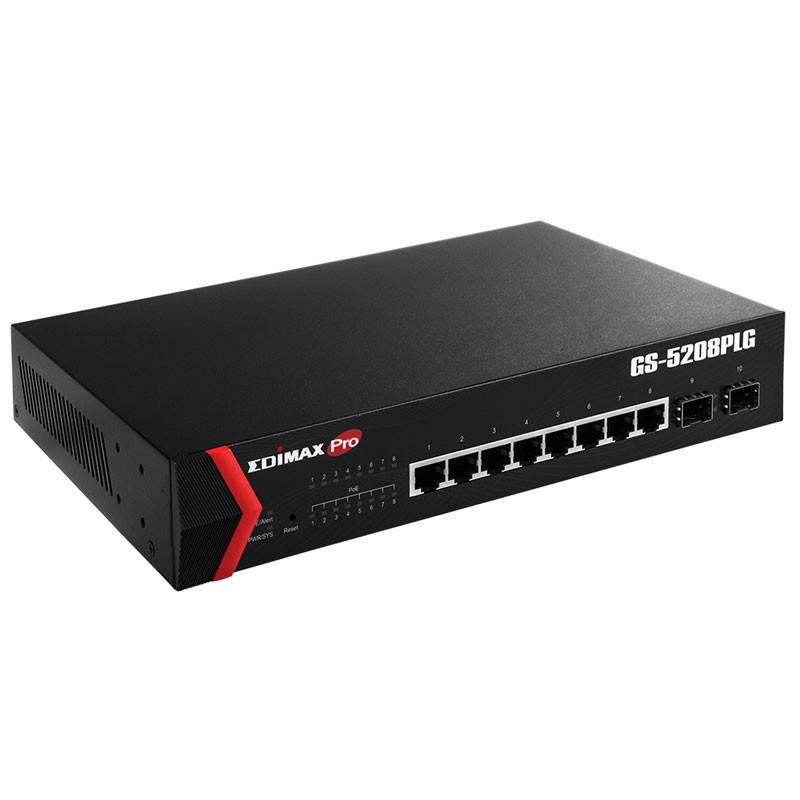

Edimax Web Smart 8-port Gigabit PoE+ Switch with 2 SFP slots 160W GS-5208PLG
22O GS-5208PLG
4717964702708
Edimax Web Smart 8-port Gigabit PoE+ Switch and 2 SFP 160W slots with the following features:
- Eight Gigabit Ethernet ports
- Up to 30W per port (total power budget: 160W) for powering PoE-capable devices
- Automatic detection of powered devices and power consumption levels
- Automatic detection of over/undercurrent and over/undervoltage faults
- Switching capacity: 20 Gbps and forwarding speed: 14.88 Mbps
Edimax Web Smart 8-port Gigabit PoE+ Switch with 2 SFP slots 160W GS-5208PLG
€163.93
Tax included
€163.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Pay in installments with Klarna
Advantages
- Compatible with IEEE 802.3af PoE
- 802.1Q IEEE VLAN for network segmentation with improved performance and security
- IEEE 802.1p QoS with 4 priority queues
- IGMP snooping with V1 / V2 / V3 support
- 4K MAC address table and up to 9 KB jumbo frame support
- 19-inch (1U) rack-mount mounts included.
The Edimax Pro GS-5208PLG is a Web smart switch with 8 Gigabit PoE+ ports and 2 Gigabit SFP slots. Designed for medium to small network environments, its 19-inch (1U) rack mount supports allow seamless integration with popular mounting systems on the market. The Edimax GS-5208PLG is a great choice for increasing the performance and efficiency of your network environments.
The GS-5008PL features 8 IEEE 802.3at Power over Ethernet (PoE+) ports capable of providing up to 30 W of power per port, with a total power budget of 160 W to power any IEEE 802.3at or 802.3af compliant power device. With the PoE device detection feature, the GS-5208PLG can verify if the connected device is compliant with IEEE 802.3at or 802.3af standard. In case no PoE device is detected, only network data will be transmitted through the LAN cable. The GS-5208PLG can be used with various PoE products, such as access points, network cameras or VoIP devices, and is an effective solution for network environments with difficult access to power outlets.
Power over Ethernet technology allows the Ethernet cable to transmit both data and power, eliminating the need for extension cords or electrical outlets on walls or ceilings. Overall, the GS-5208PLG helps lower installation costs and simplify the deployment effort.
The GS-5208PLG features a "power-budget" user interface that allows IT managers to monitor the power consumption of each PoE port and the overall power consumption of connected PoE devices. Monitor the entire PoE network and evaluate total power usage before adding new PoE devices to the network architecture. The power-budget user interface also features a remote power on/off feature for each PoE port, so manual connect/disconnect is not necessary when connecting a PoE device. Simply use the remote power button to quickly reset the device.
The GS-5208PLG features intelligent network monitoring tools that enable greater network efficiency. Security and management features include bandwidth and VLAN (VLAN IEEE 802.1Q) control. Through its web-based interface, an administrator can configure VLANs to separate traffic and configure link aggregation settings to create large traffic flows. In addition, these features provide additional network edge protection and remote access to the password-protected configuration interface.
Features:
HARDWARE:
- Ports 8 ports PoE+ RJ-45 10/100/1000 Base-T - 2 slots SFP 1000Base-X
- Transmission method Archive and forward
- Buttons Reset button
- LED Indicators Per port: Link/Activity - PoE: Activity/Status per unit: Power supply
- Power input 100-240V AC, 50-60 Hz, internal power supply
- Total power budget 160W
- Dimensions (W x D x H) 265 × 184 × 44 mm
- Weight 1.7kg
PERFORMANCE:
- Switching capacity 20Gbps
- Transfer rate 14.88Mpps
- 4K MAC address
- Buffer Memory 192KB
- 9.2KB Jumbo Frame
- Filtering/Routing Rates 1000 Mbps Port 1,488,000 pps - 100 Mbps Port - 148,800 pps - 10 Mbps Port - 14,880 pps.
POWER OVER ETHERNET
- Standard IEEE 802.3af, IEEE 802.3at
- Electrical power Up to 30 W per port
- Pin Assignment 1/2(+), 3/6(-) End-Span (Mode A)
- Available power budget 130W, (Port 1 to 4 = 65W & Port 5 to 8 = 65W)
- Management Power on/off of PoE output.
INTELLIGENT FEATURES:
- VLAN Up to 8 VLANs and 4096 VLAN IDs - 802.1Q tag-based
- IEEE 802.3ad LACP Trunk-Static port trunking up to 1 trunking groups
- IGMP Snooping IGMP Snooping v1/v2/v3 - Unknown Multi-Cast Traffic Blocking - Multicast Groups: 128
- QoS Port-based QoS, IEEE802.1p QoS, 4 priority queues, scheduling algorithm
- User Interface Management: Web-based management - Firmware Upgrade: Firmware upgrade over the WEB - Loop detection/prevention
- Security Broadcast storm control
