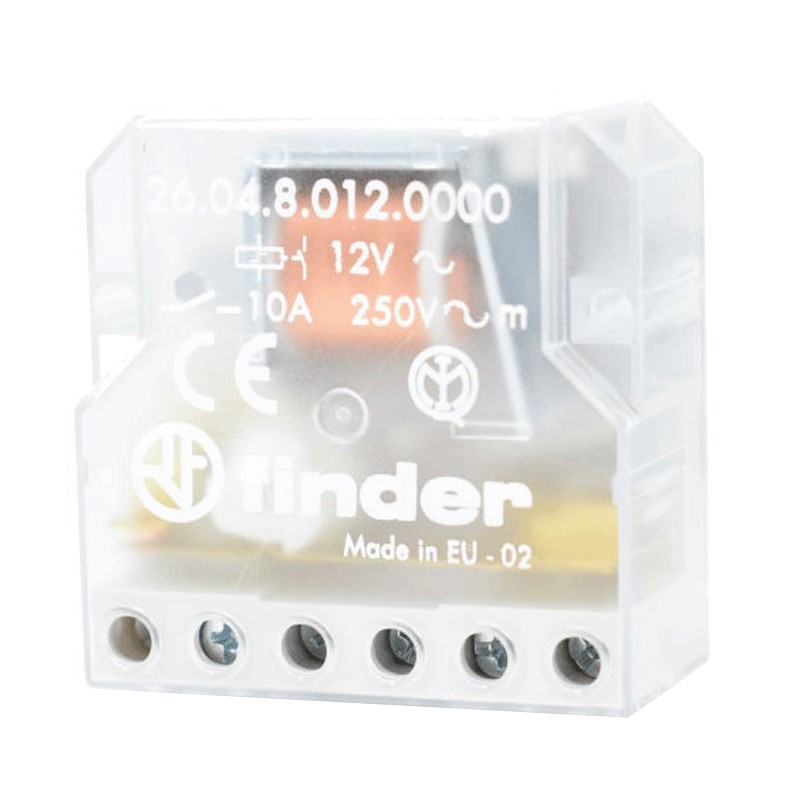

Finder 12v pulse switch relay FIN26048012
FIN 260480120000
8012823238166
Finder Type 26.04 Pulse Relay/Switch, with the following characteristics:
- Rated supply voltage (UN) in AC (50 Hz) 12 - 24 - 48 - 110 - 230
- Nominal/Max switching voltage 250/400 Vac
- Nominal power VA (50 Hz) W 4.5
- Operating range AC (0.8...1.1)UN
- Rated/Max instantaneous current 10/20
- Rated load in AC1 2500 VA
- Nominal load in AC15 (230 V AC) 500 VA
Finder 12v pulse switch relay FIN26048012
€10.90
Tax included
€10.90
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 35
: 20
Pay in installments with Klarna
Features:
- Finder Series
- Contact configuration 2 NO
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contacts material AgNi
- Mechanical life AC/DC 300 - 10 cycles
- Electrical life at rated load in AC1 100 - 10 cycles
- Min./Max. switching pulse duration 0.1 s/1 h (acc. to EN 60669)
- Insulation between coil and contacts (1.2/50 μs) 4 kV
- Ambient temperature -40...+40°C
- Protection class IP20
Lamp capacity
- incandescent/halogen 230 V W 800
- fluorescent with electronic ballast 400 W
- fluorescent with power factor correction electromagnetic ballast 360W
- CFL 200W
- LED 230 V 200W
- halogen or BT LED with 200W electronic transformer
- Halogen or BT LED with 400W electromagnetic transformer
Advantages:
- With separate coil circuit and contacts
- Type 26.04 = 4-step switch 2 NO
- 6 sequences available
- Screw terminals
- AC coil
- Panel or flush mounting
- Cadmium-free contacts
Data sheet
- Type: Relays
- Version: Switch
- Installation: Recessed
