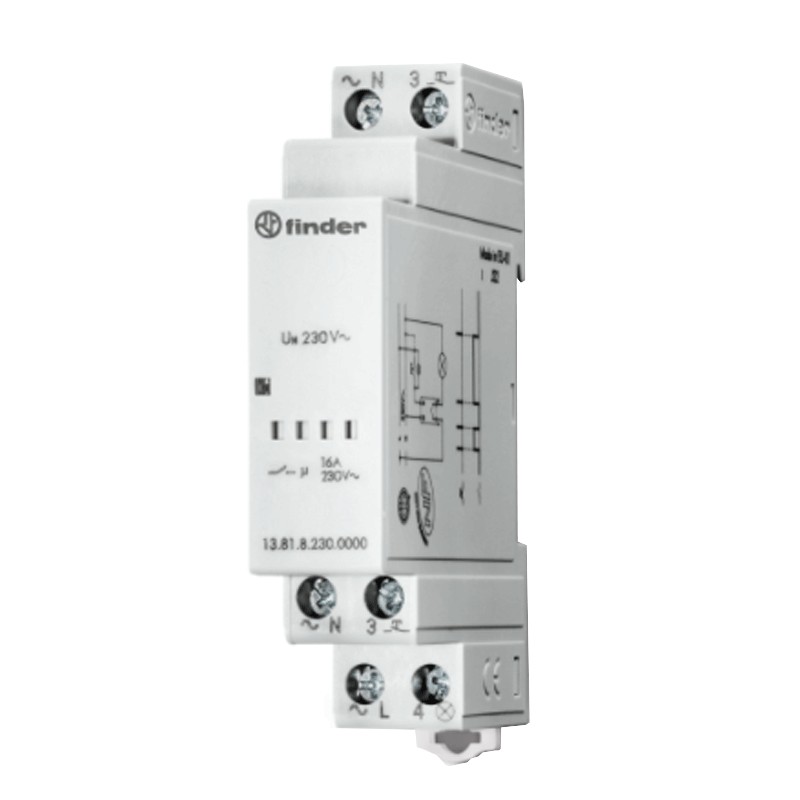

Finder Electronic Modular Pulse Relay FIN13818230
FIN 138182300000
8012823327341
Finder electronic/silent pulse relay TYPE 13.81, with the following features:
- Nominal supply voltage 120 - 230V AC (50/60 Hz)
- Nominal/Max switching voltage 230 Vac
- Nominal power VA (50 Hz) 3/1.2W
- Operating range AC (50 Hz) (0.8...1.1)UN
- Current rating/Max instantaneous current 16/30 (120 - 5 ms)
- Rated load in AC1 3700 VA
- Rated load AC15 (230 V AC) 750 VA
Finder Electronic Modular Pulse Relay FIN13818230
€38.36
Tax included
€38.36
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
: 24
Pay in installments with Klarna
Features:
- Finder Series
- 1 contact 16 A
- Dimensions: width 17.5 mm
- Fastening on 35 mm bar (EN 60715)
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contact material AgSnO2
- Electrical service life at rated load in AC1 100 - 103 cycles
- Max. duration continuous control pulse
- Ambient temperature -10...+60°C Protection class
- Protection class IP20
Dielectric strength between
- open contacts 1000V AC
- supply and contacts in AC/
Lamp capacity
- incandescent/halogen 230 V W 3000
- fluorescent with electronic ballast 1500W
- fluorescent with rephased electromagnetic ballast 1000W
- CFL 600W
- LED 230 V 600W
- halogen or low voltage LED with electronic transformer 600W
- halogen or BT LED with electromagnetic transformer 1500W
Advantages:
- Suitable for 3-wire and 4-wire systems, with automatic recognition
- Control pulse: continuous
- Long mechanical and electrical life, quieter than electromechanical relays
- Zero crossing" load switching
- Cadmium-free contacts
Data sheet
- Type: Relays
- Version: Pulse
- Installation: Din
