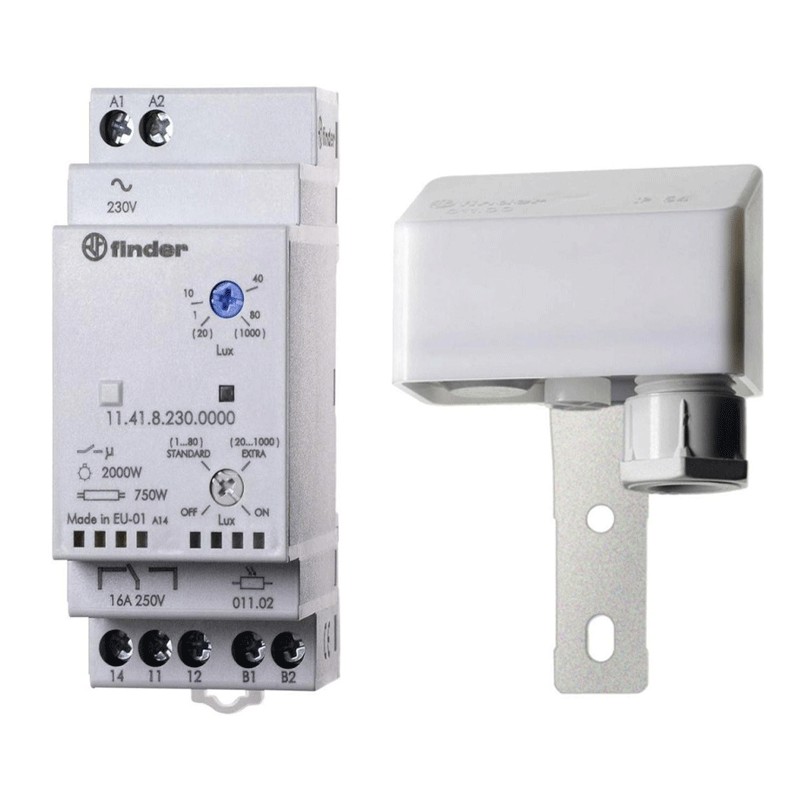

Finder photo-electric lighting controller DIN 2 modules 230V 11.41.8.230

Brand: Finder

Cod: FIN 114182300000 EAN: 8012823347790

Finder Type 11.41 twilight switch, with the following characteristics:

Nominal supply voltage in AC 250/400V
1 exchange 16 A
2 modules with DIN connection
Rated power (50 Hz) 5.2/2W
Nominal current/Max instantaneous current 16/30 (120 A - 5 ms)
Nominal load in AC1:4000 VA
Rated load in AC15 (230 V AC) 750VA

External probe 01102 included in the package.

Scheda Tecnica 11418230

Finder photo-electric lighting controller DIN 2 modules 230V 11.41.8.230

€62.31 Tax included

€62.31

Finder photo-electric lighting controller DIN 2 modules 230V 11.41.8.230

€62.31
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 73

: 37

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Relay for switching on the lamps according to the room brightness level.

Finder's 11 Series twilight relays are designed for installation in electrical panels with the aid of one or more external sensitive photosensors. They have two patents: the "zero hysteresis" system, which guarantees on and off without delay at the set LUX threshold, and the system for the compensation of the controlled lights, very useful both during installation and in daily use. These technical features make them extremely versatile and perfect for residential, public or industrial applications.

Features:

Finder Series
1 exchange 16 A
2 modules with DIN connection
Minimum switching load 1000 (10/10) mW (V/mA)
Standard contact material AgSnO2
Operating range V AC (50 Hz) (0.8...1.1)UN
Electrical endurance at rated load in AC1 100 - 10 cycles
Switching threshold adjustment "Standard" scale 1...100 lx - "High" scale 30...1000 lx
Hysteresis (power on/off ratio) 1
Trip time: on/off 15/30 s
Ambient temperature: -20...+50°C

Degree of protection:

Twilight IP20
Photosensor IP54

Lamp capacity:

incandescent/halogen 230V 2000W
fluorescent with electronic ballast 1000W
fluorescent with rephased electromagnetic ballast 750W
CFL 400W
LED 230V 400W
halogen or BT LED with 400W electronic transformer
halogen or BT LED with electromagnetic transformer 800W

Advantages:

European patent "Zero Hysteresis" for energy saving
Italian patent "Compensation of the influence of the controlled lights" for easy installation and use
Selector with 4 positions:- "Standard" scale (set threshold 1...80 lx)- "High" scale (set threshold 30...1000 lx)- fixed light (particularly interesting for testing at first installation and for system maintenance operations)- light off (useful during holidays)
First 3 operating cycles of the relay without switch-on and switch-off delay, in order to facilitate adjustment operations by the installer
LED indicators
SELV separation between power supply circuit and contacts
Double insulation between power supply and photosensor
35 mm bar mounting (EN 60715)
Cadmium-free contacts
Cadmium-free photosensor element (IC photo diode)
