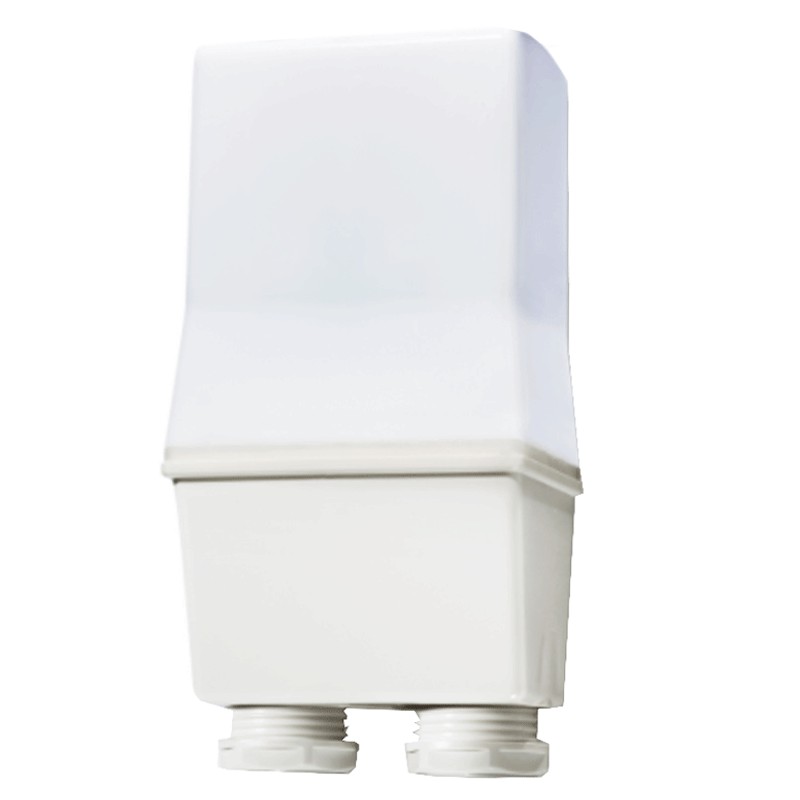

Finder pole-mounted twilight relay 10418230
FIN 104182300000
8012823236704
Finder pole-mounted twilight relay, with the following features:
- Nominal supply voltage 230V AC (50/60 Hz)
- Single output - 1 NO 16 A
- Nominal power AC/DC 2 VA (50 Hz)/W
- Nominal current/Max instantaneous current 16/30 (120 A - 5 ms)
- Nominal load on AC1:1900 3700 VA
- Rated load in AC15:400 750 VA
- Rated current in AC5a: 5A
Finder pole-mounted twilight relay 10418230
€39.36
Tax included
€39.36
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 194
: 216
Pay in installments with Klarna
Relay for switching on the lamps according to the ambient brightness level. Pole and wall mounting.
Features:
- Finder Series
- Single pole interruption (L)
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contact material AgSnO2
- Operating range (0.8...1.1)UN in AC (50 Hz)
- Electrical life at rated load in AC1 100 - 103 cycles
- Switching threshold adjustment 1...80 lx
- Preset switching threshold 10 lx
- Tripping time: on/off 15/30 s
- Ambient temperature: -30...+70°C
- Degree of protection IP54
Lamp capacity:
- incandescent/halogen 230V 2000W
- fluorescent with electronic ballast 500 1000W
- fluorescent with rephased electromagnetic ballast 400 750W
- CFL 200 400W
- LED 230V 400W
- halogen or BT LED with electronic transformer 200 400W
- halogen or BT LED with electromagnetic transformer 400 800W
Advantages:
- Sensitivity adjustment from 1 to 80 lux
- Cadmium-free contacts
- Cadmium-free photosensor element (IC photo diode)
- Circuit with isolation transformer
- Italian patent - Innovative principle of compensation for the influence of controlled lights, also compatible with slow-start lamps (up to 10 minutes)
- First 3 operating cycles of the relay without switch-on and switch-off delay, in order to facilitate adjustment operations by the installer
Data sheet
- Type: Relays
- Version: Twilight
- Installation: Pole
