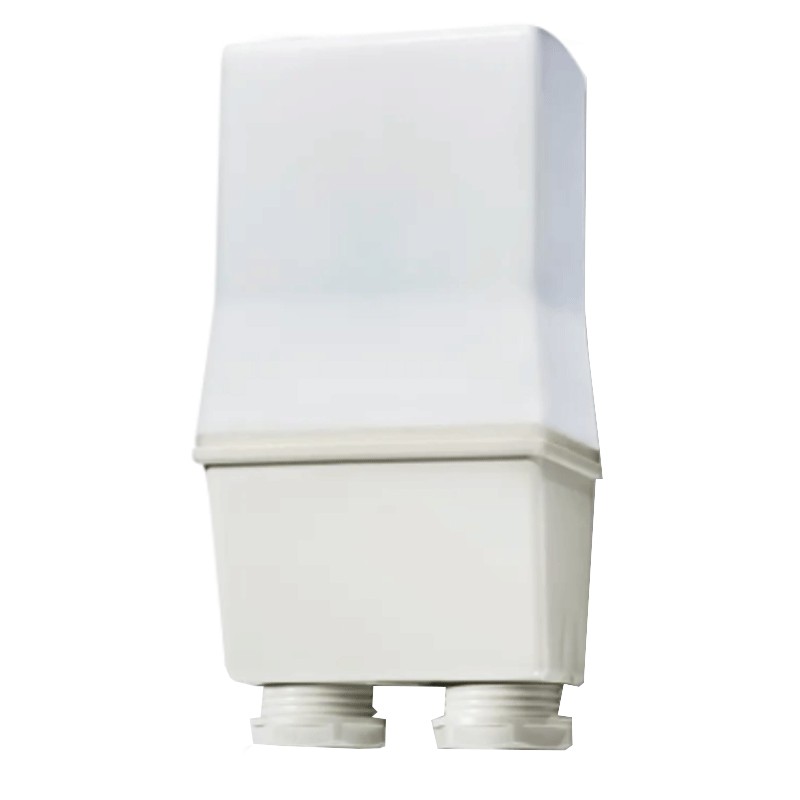

Finder pole-mounted twilight relay 2NO 16A 230V 10.32.8.230

Finder
Finder
FIN 103282300000 8012823236698

Finder pole-mounted twilight relay with the following features:

  • Rated supply voltage 120/230 AC (50/60 Hz)
  • Double output - 2 NO 16A
  • Nominal power AC/DC 2 VA (50 Hz)/W
  • Rated/Max instantaneous current 16/30 (120 A - 5 ms)
  • Nominal load on AC1:1900/3700 VA
  • Rated load in AC15:400/750 VA
  • Rated current in AC5a: 5A

Request info about this product

Finder pole-mounted twilight relay 2NO 16A 230V 10.32.8.230

€52.46 Tax included
€52.46

Finder pole-mounted twilight relay 2NO 16A 230V 10.32.8.230

€52.46
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 43
logo priority: 3
Altre disponibilità dal produttore
qty

Finder pole-mounted twilight relay 2NO 16A 230V 10.32.8.230

€52.46

Calculate shipping cost
Buy it within and receive it from Monday, 10 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Relay for switching on the lamps according to the room brightness level.

Pole and wall mounting.

Features:

  • Finder Series
  • Bipolar interruption (L+N)
  • Minimum switching load 1000 (10/10) mW (V/mA)
  • Standard contact material AgSnO2
  • Operating range (0.8...1.1)UN in AC (50 Hz)
  • Electrical life at rated load in AC1 100 - 10 cycles
  • Switching threshold adjustment 1...80 lx
  • Preset switching threshold 10 lx
  • Switching time: on/off 15/30 s
  • Ambient temperature: -30...+70°C
  • Degree of protection IP54


Lamp capacity:

  • incandescent/halogen 230V 2300W
  • fluorescent with electronic ballast 600/1200W
  • fluorescent with rephased electromagnetic ballast 450/850W
  • CFL 250/500W
  • LED 230V 500W
  • halogen or BT LED with 250/500W electronic transformer
  • halogen or BT LED with electromagnetic transformer 500/1000W


Advantages:

  • Bipolar load interruption (phase + neutral)
  • Sensitivity adjustment from 1 to 80 lux
  • Cadmium-free contacts
  • Cadmium-free photosensor element (IC photo diode)
  • Circuit with isolation transformer
  • Italian patent - Innovative principle of compensation for the influence of the controlled lights, also compatible with slow-start lamps (up to 10 minutes)
  • First 3 operating cycles of the relay without switch-on and switch-off delay, in order to facilitate adjustment operations by the installer

There are no reviews

Data sheet

Type:
Relays
Version:
Twilight
Installation:
Pole
