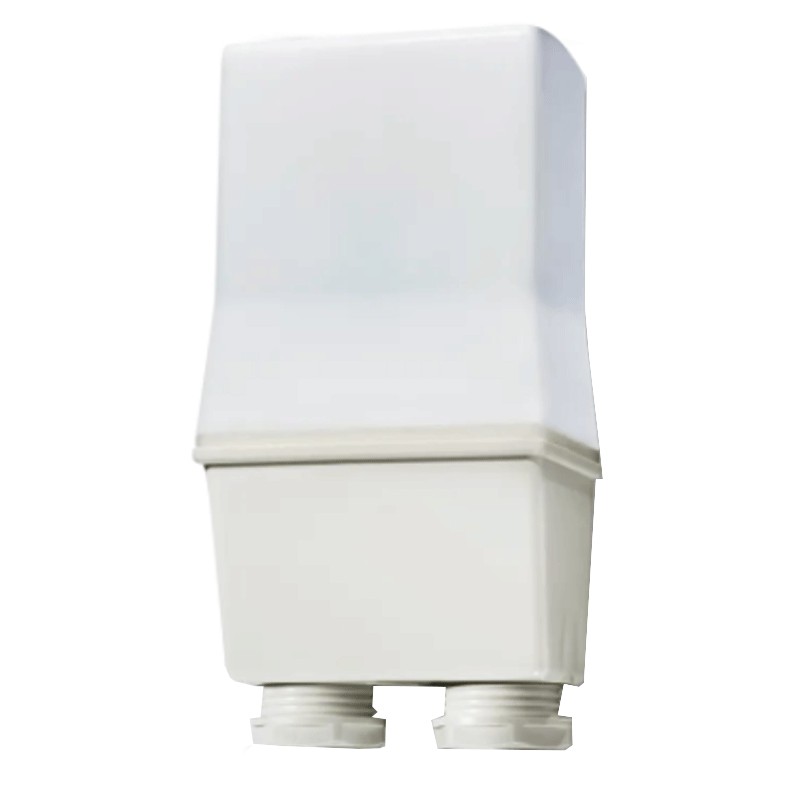

Finder pole-mounted twilight relay 2NO 16A 230V 10.42.8.230

Finder
Finder
FIN 104282300000 8012823334929

Finder pole-mounted twilight relay with the following features:

  • Rated supply voltage 120/230 AC (50/60 Hz).
  • Double regulation, double output - 2 NO 16A, single pole interruption (L)
  • Rated power AC/DC 2 VA (50 Hz)/W
  • Rated/Max instantaneous current 16/30 (120 A - 5 ms)
  • Nominal load on AC1:1900/3700 VA
  • Rated load in AC15:400/750 VA
  • Rated current in AC5a: 5A

Request info about this product

Finder pole-mounted twilight relay 2NO 16A 230V 10.42.8.230

€65.38 Tax included
€65.38

Finder pole-mounted twilight relay 2NO 16A 230V 10.42.8.230

€65.38
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 29
Altre disponibilità dal produttore
qty

Finder pole-mounted twilight relay 2NO 16A 230V 10.42.8.230

€65.38

Buy it within and receive it from Wednesday, 12 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Relay for switching on the lamps according to the room brightness level.

Pole and wall mounting.

Features:

  • Finder Series
  • Single pole interruption (L)
  • Minimum switching load 1000 (10/10) mW (V/mA)
  • Standard contact material AgSnO2
  • Operating range (0.8...1.1)UN in AC (50 Hz)
  • Electrical life at rated load in AC1 100 - 10 cycles
  • Switching threshold adjustment 1...80 lx
  • Preset switching threshold 10 lx
  • Switching time: on/off 15/30 s
  • Ambient temperature: -30...+70°C
  • Degree of protection IP54


Lamp capacity:

  • incandescent/halogen 230V 2300W
  • fluorescent with electronic ballast 500/1000W
  • fluorescent with rephased electromagnetic ballast 400/750W
  • CFL 200/400W
  • LED 230V 400W
  • Halogen or BT LED with electronic transformer 200/400W
  • halogen or BT LED with 400/800W electromagnetic transformer


Advantages:

  • Unipolar interruption (L)
  • Sensitivity adjustment from 1 to 80 lux
  • Cadmium-free contacts
  • Cadmium-free photosensor element (IC photo diode)
  • Circuit with isolation transformer
  • Italian patent - Innovative principle of compensation for the influence of controlled lights, also compatible with slow-start lamps (up to 10 minutes)
  • First 3 operating cycles of the relay without switch-on and switch-off delay, in order to facilitate adjustment operations by the installer

non l'ho ancora montato ma conoscendo già il prodotto lo consiglio assolutamente

Read all reviews

Data sheet

Type:
Relays
Version:
Twilight
Installation:
Pole
