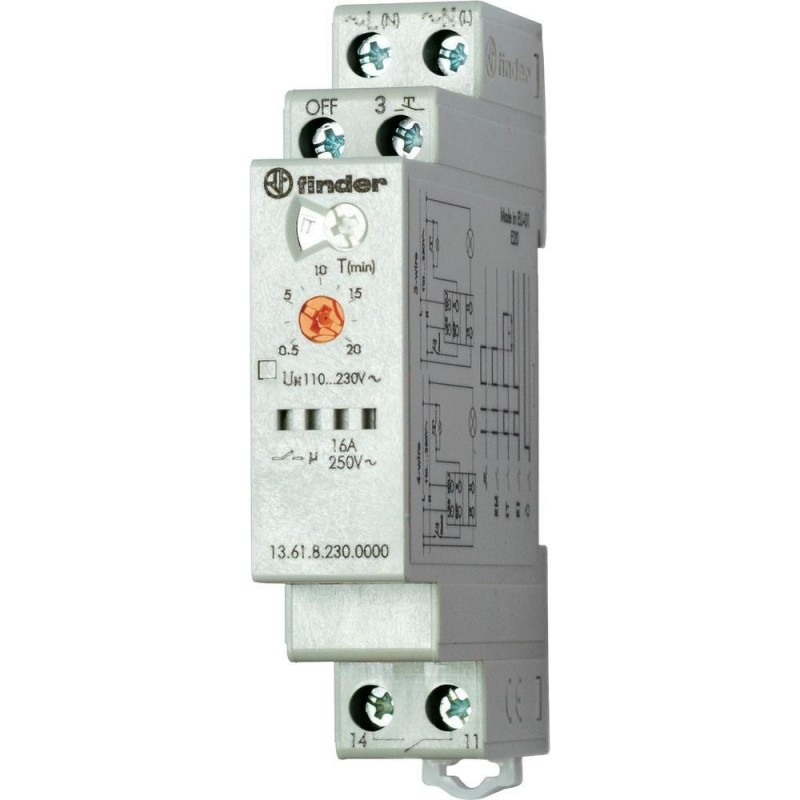

Finder timer relay 230V DIN 13.61.8.230
FIN 136182300000
8012823377117
Finder relay, monostable pulse timed, with the following features:
- Nominal supply voltage 120/240V AC (50/60 Hz)
- 1 NO contact
- Rated power AC/DC V A (50 Hz)/W 3.2/1
- Nominal current/Max instantaneous current 16/30 (120 A - 5 ms)
- Nominal load on AC1:4000 VA
- Rated load AC15 (230 V AC): 750 VA
Finder timer relay 230V DIN 13.61.8.230
€34.79
Tax included
€34.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
: 3
Pay in installments with Klarna
Type 13.61 is a monostable multi-function electronic impulse relay with reset command for central switch-off and set function for central switch-on.
Features:
- Finder series
- 1 NO contact
- Minimum switching load 1000 (10/10) mW (V/mA)
- Standard contact material AgSnO2
- Operating range V AC (50 Hz) 90/264
- Electrical service life at rated load in AC1 100 - 10 cycles
- Max. switching pulse duration: continuous
- Ambient temperature: -10...+60°C
- Protection class IP20
Dielectric strength between
- open contacts 1000V AC
- power supply and contacts 2000V AC
Lamp capacity:
- incandescent/halogen 230V 3000W
- fluorescent with electronic ballast 1500W
- fluorescent with rephased electromagnetic ballast 1000W
- CFL 600W
- LED 230V 600W
- halogen or BT LED with electronic transformer 600W
- halogen or BT LED with electromagnetic transformer 1500W
Advantages:
- 1 NO
- Reset function for centralised switch-off
- monostable
- fixed light
- Rail mounting 35 mm (EN 60715)
- Width 17.5 mm
Multifunction
- impulse relay
- Time-controlled impulse relay (30s...20min)
There are no reviews
Data sheet
- Type: Relays
- Version: Timed
- Installation: Din
